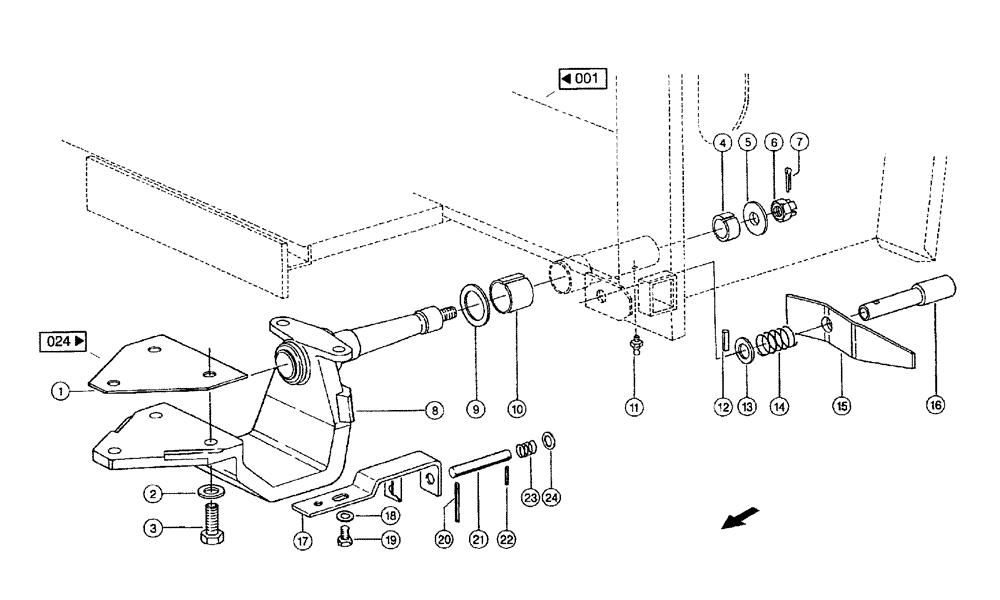

Запчасти Case IH 684 (0007) - ROCKER ARM (58) - ATTACHMENTS/HEADERS

2

97033612

WASHER

PULLEY tightener, 16, DIN6796, FST

6шт.

3

233583N0

SCREW

BOLT hex, M16 x 35, MK, ISO4017, 8.8

6шт.

7

06400423

PIN, SPLIT (COTTER)

PIN, COTTER splint, 4 x 28, DIN94, ST

2шт.

9

234248N0

DISC

WASHER, 45 x 65 x 1

2шт.

11

236942N0

LUBE NIPPLE

LUBRICATOR NIPPLE grease

2шт.

12

235665N2

PIN

roll, 6 x 36B/ST-DAC, 320B, DIN8752

2шт.

15

911885N0

LEVER

8 x 56 x 200

2шт.

18

239394N1

WASHER

WASHER, B10

4шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.
