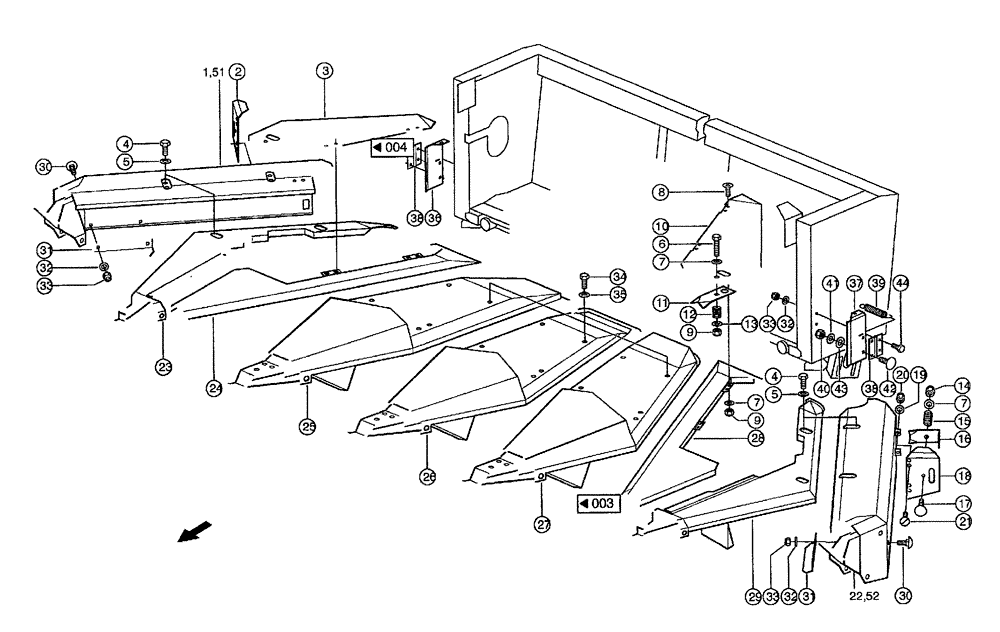

Запчасти Case IH 684 (0006[1]) - DIVIDER (MG6M) (58) - ATTACHMENTS/HEADERS

1

911937N1

PARTITION

PLATE divider, R.H., mechanic klappbar

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

24шт.

5

239388N0

DISC

WASHER, A10

24шт.

6

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

7

239387N0

WASHER

A8

8шт.

8

97010295

SCREW

countersunk, M8 x 20, DIN7991, 8.8

8шт.

9

238132N0

LOCK NUT

VM8/8-A3C

10шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

03267411

NUT

lock, VM6

2шт.

17

711-6025

CARRIAGE BOLT,Sq Nk, M6 x 1 x 25mm, Cl 8.8

2шт.

19

03222850

WASHER

A6

4шт.

20

825-1406

NUT,M6, Cl 8

4шт.

30

236475N0

SCREW

flat, round, head, M6 x 16 x 10, DIN603, 8.8

4шт.

32

03222850

WASHER

A6

8шт.

33

03267411

NUT

lock, VM6

8шт.

34

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

18шт.

35

239394N1

WASHER

WASHER, B10

18шт.

40

237947N0

NUT

lock, VM10

4шт.

41

239394N1

WASHER

WASHER, B10

2шт.

42

236510N0

SCREW

flat, round, head, M10 x 20 x 12, DIN603, 8.8

2шт.

44

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

43

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
