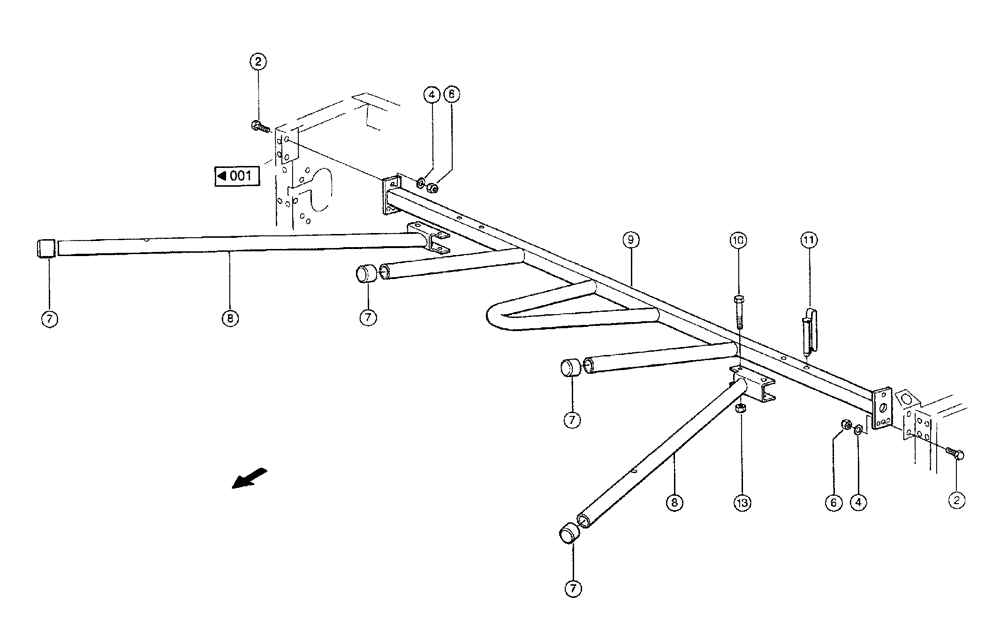

Запчасти Case IH 684 (0002[1]) - PUSH BAR (MG6M) (58) - ATTACHMENTS/HEADERS

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

4

239388N0

DISC

WASHER, A10

4шт.

6

237947N0

NUT

lock, VM10

4шт.

10

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

BOLT hex, M12 x 85, ISO4014, 8.8

2шт.

11

978216N0

LARGE PIN

PIN, LARGE PLUG, 12 x 96

2шт.

13

238234N0

NUT

lock, VM12

2шт.
