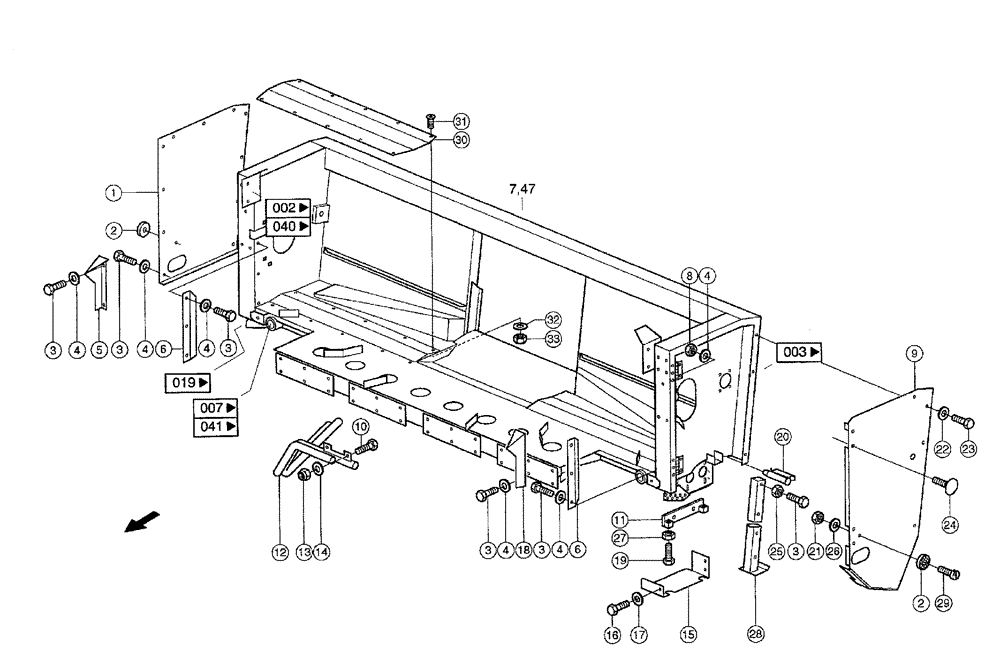

Запчасти Case IH 684 (0001[1]) - TROUGH (MG6M) (58) - ATTACHMENTS/HEADERS

2

211289N0

REFLECTOR

63 mm diameter

2шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

23шт.

4

239387N0

WASHER

A8

25шт.

8

825-1408

NUT,M8, Cl 8

10шт.

9

990476N0

SHEET

CAP

1шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

12

912122N2

ROPE GUIDE

cable end

1шт.

13

238234N0

NUT

lock, VM12

6шт.

14

06569028

WASHER

PULLEY tightner, 12, DIN6796, FST

8шт.

15

912606N1

GUARD

2 x 150 x 473

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

17

239393N1

WASHER

B8

3шт.

19

06347714

CAPSCREW

BOLT hex, M12 x 75, ISO4017, 8.8

2шт.

20

978216N0

LARGE PIN

PIN, LARGE PLUG, 12 x 96

2шт.

21

03267411

NUT

lock, VM6

2шт.

22

239388N0

DISC

WASHER, A10

4шт.

23

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

24

234953N0

SCREW

flat, round, head, M8 x 20 x 13, DIN603, 8.8

4шт.

25

238132N0

LOCK NUT

VM8/8-A3C

6шт.

26

03222850

WASHER

A6

2шт.

27

825-1412

NUT,M12, Cl 8

Hex

2шт.

28

912453N0

STAND

FOOT support

2шт.

29

06011918

SCREW

cheese-head, M6 x 16, DIN84, 4.8

2шт.

31

97010295

SCREW

countersunk, M8 x 20, DIN7991, 8.8

20шт.

32

239387N0

WASHER

A8

20шт.

33

238132N0

LOCK NUT

VM8/8-A3C

20шт.
