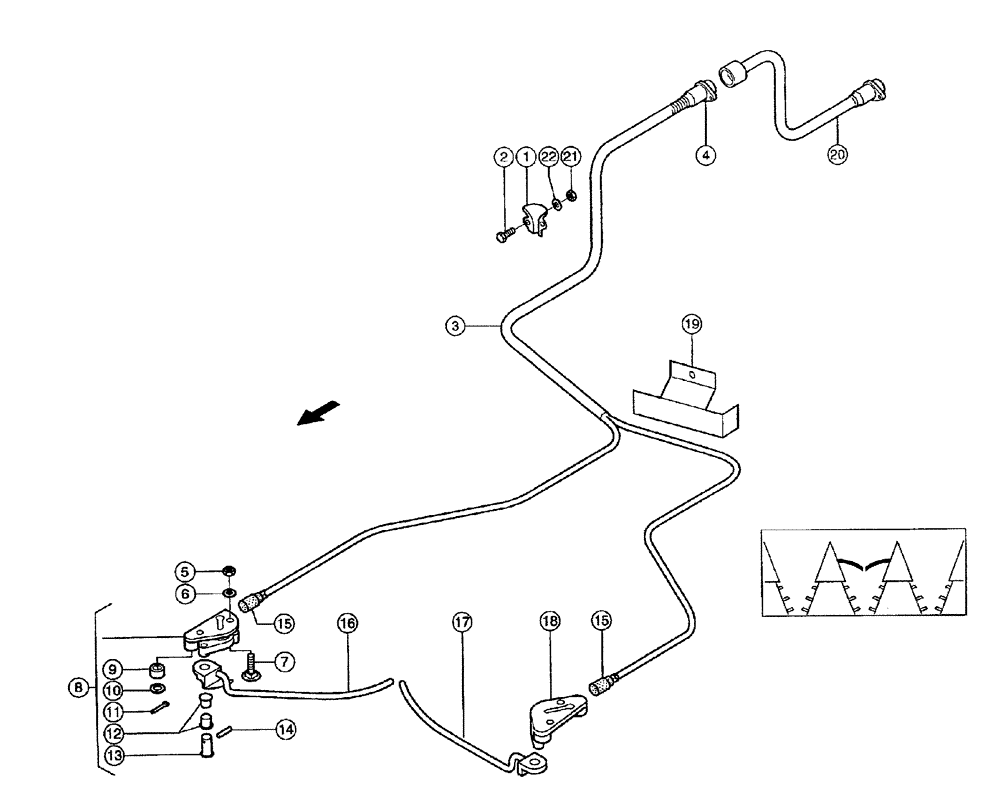

Запчасти Case IH 684 (0031) - ELECTRICAL EQUIPMENT, SENSOR SYSTEM R.H. (55) - ELECTRICAL SYSTEMS

1

050552N0

CABLE CLIP

1шт.

2

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

5

238132N0

LOCK NUT

VM8/8-A3C

4шт.

7

07753228

SCREW

flat, round, head, M8 x 30, DIN603, 8.8

4шт.

8

050574N2

SENSOR

SYSTEM R.H.

1шт.

9

050583N0

BUSHING

30 x 12.5 x 15 mm diameter

2шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

11

06402570

PIN, SPLIT (COTTER)

PIN, COTTER splint, 3.2 x 18, DIN94, ST

2шт.

12

008504N0

BUSHING

SLEEVE, 13.1 x 15.1 x 14

4шт.

13

050615N0

LARGE PIN

PIN, LARGE BOLT flange

2шт.

14

237606N2

LOCK PIN

roll, 5 x 30B/ST-DAC, 320B, DIN8752

2шт.

16

050686N0

LEVER

feeler, R.H.

1шт.

17

050687N0

LEVER

feeler, L.H.

1шт.

18

050575N2

SENSOR

SYSTEM L.H.

1шт.

20

992320N0

CABLE EXTENSION

1шт.

21

825-1406

NUT,M6, Cl 8

2шт.

22

235131N1

LOCK WASHER

spring, 6

2шт.
