(0044) - HYDRAULIC LIFT - LOCK-UP VALVE ASSY. (MG6M)

Запчасти Case IH 684 (0044) - HYDRAULIC LIFT - LOCK-UP VALVE ASSY. (MG6M) (35) - HYDRAULIC SYSTEMS

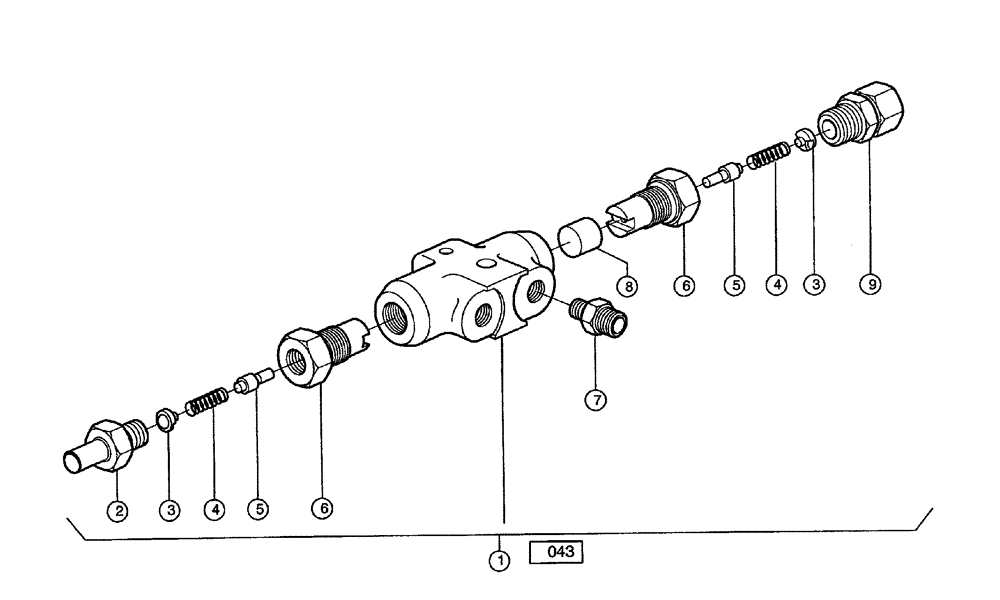

Схема запчастей Case IH 684 - (0044) - HYDRAULIC LIFT - LOCK-UP VALVE ASSY. (MG6M) (35) - HYDRAULIC SYSTEMS
3
8
5
7
4
2
1
6
3
6
5
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

238712N0

FITTING

CONNECTOR male

1шт.

3

643704N0

GUIDE

spring

2шт.

4

643705N0

COMPRESSION SPRING

2шт.

5

672584N1

SPOOL

VALVE outlet

2шт.

6

643703N0

OIL DISTRIBUTOR

INSERT threaded

2шт.

8

215312N0

ROLL

cylinder, RC15 x 15, DIN5402, CD/VX, 525

1шт.

9

239149N0

FITTING

SCREWING, L10E/WD-M, DIN3955, ST

1шт.
