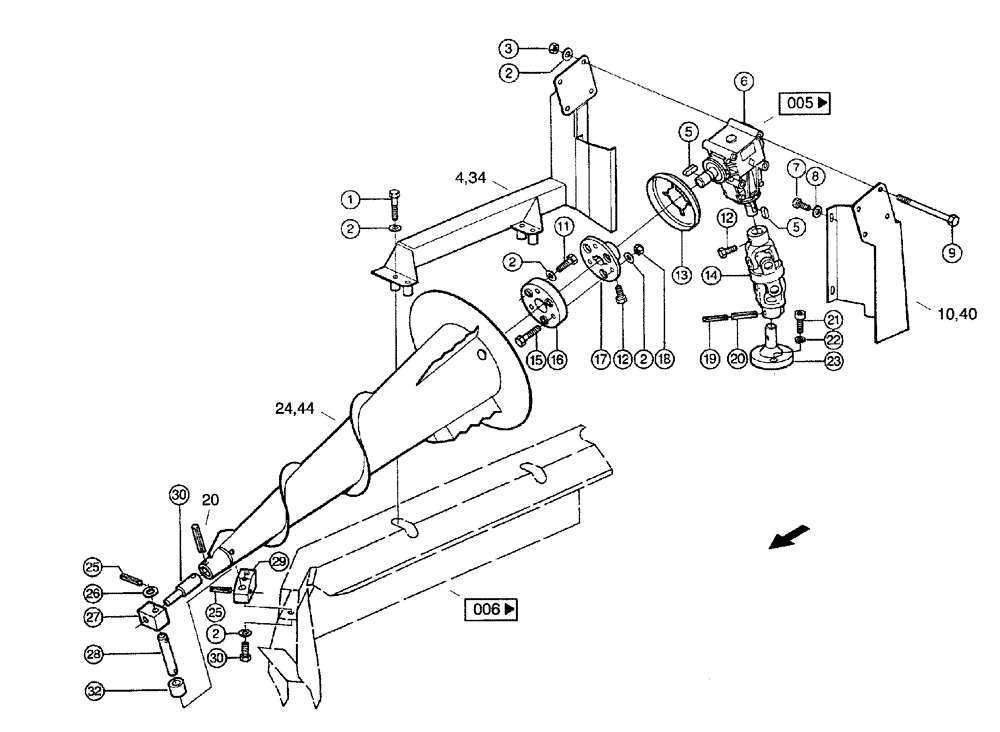

Запчасти Case IH 683 (0004) - LAID MAIZE AUGER (MG6F) (58) - ATTACHMENTS/HEADERS

1

614-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

8шт.

2

239388N0

DISC

WASHER, A10

32шт.

3

825-1410

NUT,M10, Cl 8

8шт.

5

03501205

BUCKET TOOTH KEY

flat, A8 x 7 x 36, DIN6885

6шт.

6

912814N0

DRIVE, ANGLE

GEAR, GT-10

2шт.

8

239387N0

WASHER

A8

4шт.

9

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

8шт.

11

211042N0

SCREW

BOLT hex, M10 x 40, MK/8.8-A3C, ISO4017

6шт.

12

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

6шт.

13

912813N0

GUARD

2шт.

15

235534N1

SCREW

BOLT hex, M10 x 50 x 29+2, ISO4014, 8.8

6шт.

16

608014N1

LARGE PLATE

PLATE, LARGE DISK coupling

2шт.

17

912795N0

DISC

WASHER

2шт.

18

237947N0

NUT

lock, VM10

6шт.

21

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

cheese-head

4шт.

22

242763N1

WASHER

locking, VSKZ10

4шт.

31

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.
