(0003) - POINT

Запчасти Case IH 683 (0003) - POINT (58) - ATTACHMENTS/HEADERS

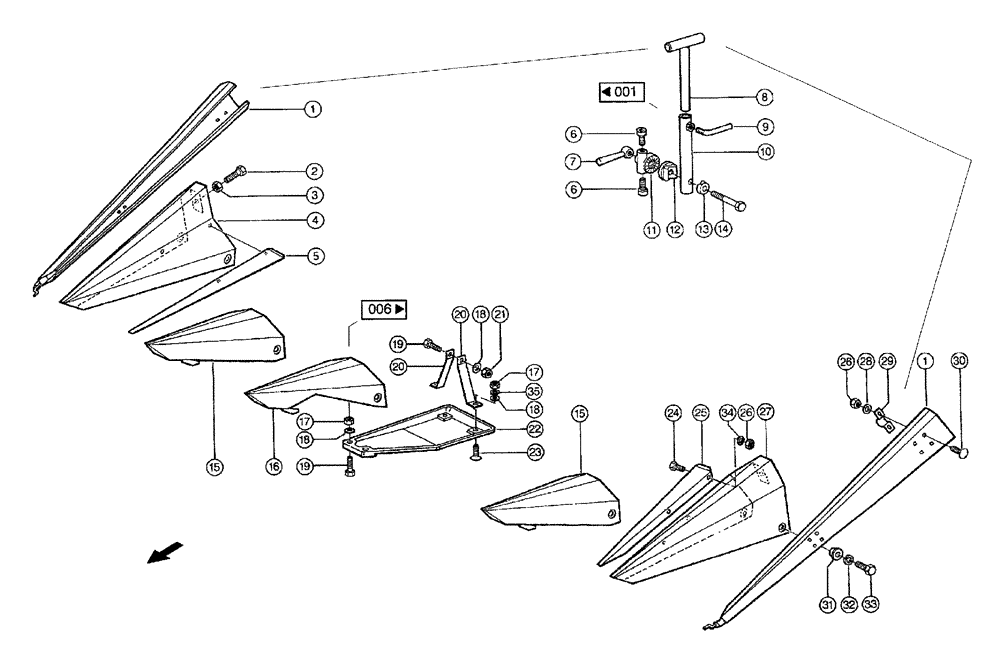

Схема запчастей Case IH 683 - (0003) - POINT (58) - ATTACHMENTS/HEADERS
24
21
26
6
31
20
9
8
2
1
34
29
3
15
32
33
17
6
11
20
14
10
16
12
18
4
1
17
13
28
5
23
26
18
15
27
7
18
19
22
35
30
19
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

825-1412

NUT,M12, Cl 8

Hex

2шт.

6

864-12020

HEX SOC SCREW,M12 x 20mm, Cl 8.8

Cheese head, M12 x 20, DIN912 8.8

4шт.

14

06303406

CAPSCREW

BOLT hex, M12 x 120, ISO4017, 8.8

2шт.

17

825-1410

NUT,M10, Cl 8

12шт.

18

06569011

WASHER

PULLEY tightener, 10, DIN6796, FST

9шт.

19

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

9шт.

21

237947N0

NUT

lock, VM10

3шт.

23

06078156

SCREW

countersunk, M10 x 30, DIN7991, 8.8

6шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

26

825-1408

NUT,M8, Cl 8

12шт.

28

239387N0

WASHER

A8

8шт.

30

234953N0

SCREW

flat, round, head, M8 x 20 x 13, DIN603, 8.8

8шт.

31

909945N1

BUSHING

SLEEVE

14шт.

32

235134N1

WASHER, LOCK

spring, 12

14шт.

33

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

14шт.

34

235132N1

WASHER

spring, 8

4шт.

35

03253568

WASHER, LOCK

spring, 10, CN201104

6шт.
