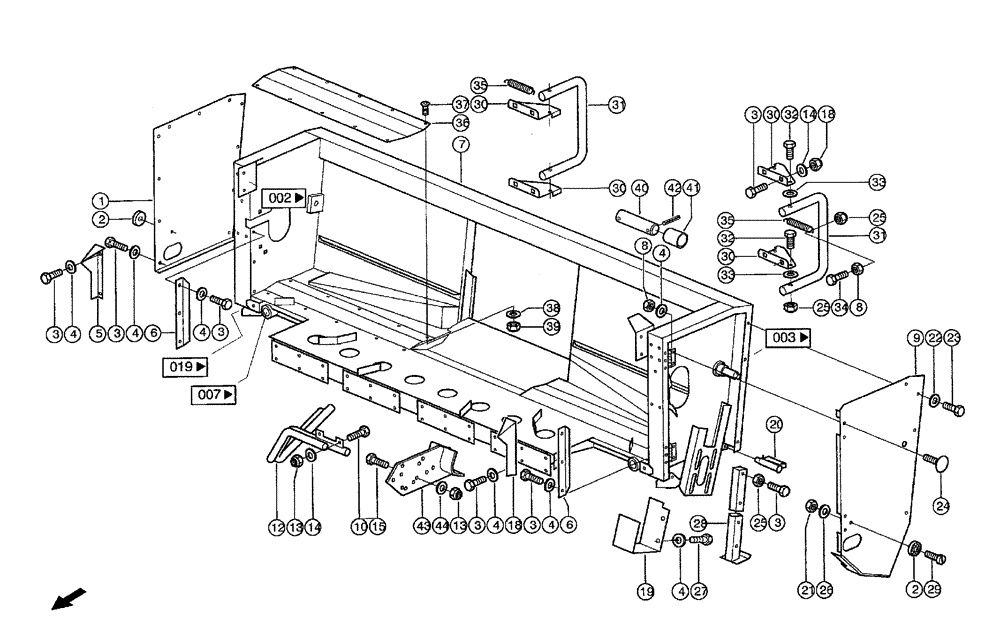

Запчасти Case IH 683 (0001) - TROUGH (MG6F) (58) - ATTACHMENTS/HEADERS

2

211289N0

REFLECTOR

63 mm diameter

2шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

23шт.

4

239387N0

WASHER

A8

27шт.

8

825-1408

NUT,M8, Cl 8

10шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

12

912122N2

ROPE GUIDE

cable end

1шт.

13

238234N0

NUT

lock, VM12

6шт.

15

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

20

978216N0

LARGE PIN

PIN, LARGE PLUG, 12 x 96

2шт.

21

03267411

NUT

lock, VM6

2шт.

22

239388N0

DISC

WASHER, A10

4шт.

23

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

24

234953N0

SCREW

flat round head, M8 x 20 x 13, DIN603, 8.8

4шт.

25

238132N0

LOCK NUT

VM8/8-A3C

6шт.

26

03222850

WASHER

A6

2шт.

27

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

29

06011918

SCREW

cheese head, M6 x 16, DIN84, 4.8

2шт.

30

913766N0

ANGLE

4 x 113 x 119.5

4шт.

32

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

33

234274N0

DISC

WASHER, 9 x 26 x 2

4шт.

34

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

35

923066N0

TENSION SPRING

2шт.

37

97010295

SCREW

countersunk, M8 x 20, DIN7991, 8.8

20шт.

38

239387N0

WASHER

A8

20шт.

39

238132N0

LOCK NUT

VM8/8-A3C

20шт.

40

991808N0

PIN

BOLT, 30H9 x 130

2шт.

41

991811N0

SPACER

BUSHING, 28.2 x 35 x 45

2шт.

42

235682N2

COTTER PIN

roll, 8 x 60B/ST-DAC 320B, DIN8752

4шт.

43

991790N0

SUPPORT

COUPLING

2шт.

44

239389N0

WASHER

A12

12шт.
