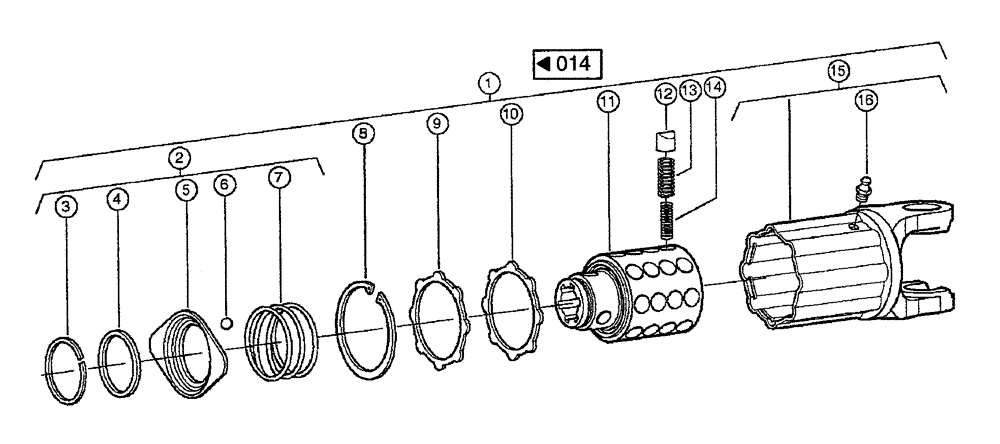

Запчасти Case IH 683 (0015) - STAR RATCHET (MG6F) (58) - ATTACHMENTS/HEADERS

1

940850N0

DRIVE SPROCKET

RATCHET star

1шт.

2

939566N0

BLANK-OFF PLUG

LOCK disconnect

1шт.

3

239343N0

RING ASSY.

snap, SP42, DIN5417

1шт.

4

920676N0

SLEEVE

RING angle

1шт.

5

920677N0

SLEEVE

locking

1шт.

6

211-1016

BALL,12.7mm OD, Gr 24

Steel (12.7 mm), DIN5401, III

3шт.

7

920678N0

COMPRESSION SPRING

1шт.

8

972502N0

CIRCLIP

RING snap

1шт.

9

920679N0

THRUST RING

WASHER pressure

1шт.

10

920913N0

SEAL

1шт.

11

940852N0

HUB

1шт.

12

972476N1

CAM

32шт.

13

972508N0

COMPRESSION SPRING

32шт.

14

972509N0

SPRING

inner

22шт.

15

940687N0

COUPLING FLANGE

HOUSING clutch

1шт.

16

179838N0

FITTING

NIPPLE grease

1шт.
