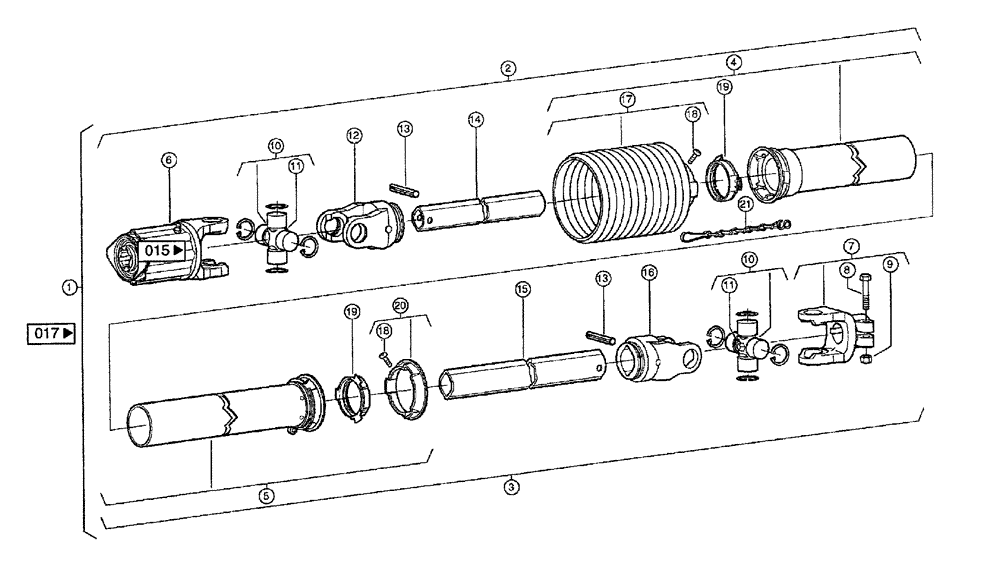

Запчасти Case IH 683 (0014) - UNIVERSAL DRIVE SHAFT, GATHERING CHAINS (MG6F) (58) - ATTACHMENTS/HEADERS

6

940850N0

DRIVE SPROCKET

RATCHET star

1шт.

8

814-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8

ISO 4014

1шт.

9

238234N0

NUT

lock, VM12

1шт.

10

940684N0

U-JOINT SPIDER

ASSY. centre cross

2шт.

12

972460N0

FORK

PIN tension

1шт.

13

244579N0

PIN

roll, 10 x 65A, DIN8752

2шт.

16

972469N0

FORK

tension pin

1шт.

18

759-14395

SELF-TAP SCREW,Pan Hd, M4.2 x 9.5

2шт.

19

920944N0

RING

Glide

2шт.

20

921456N0

RING ASSY.

guard

1шт.

21

972297N0

CHAIN (AG)

1шт.
