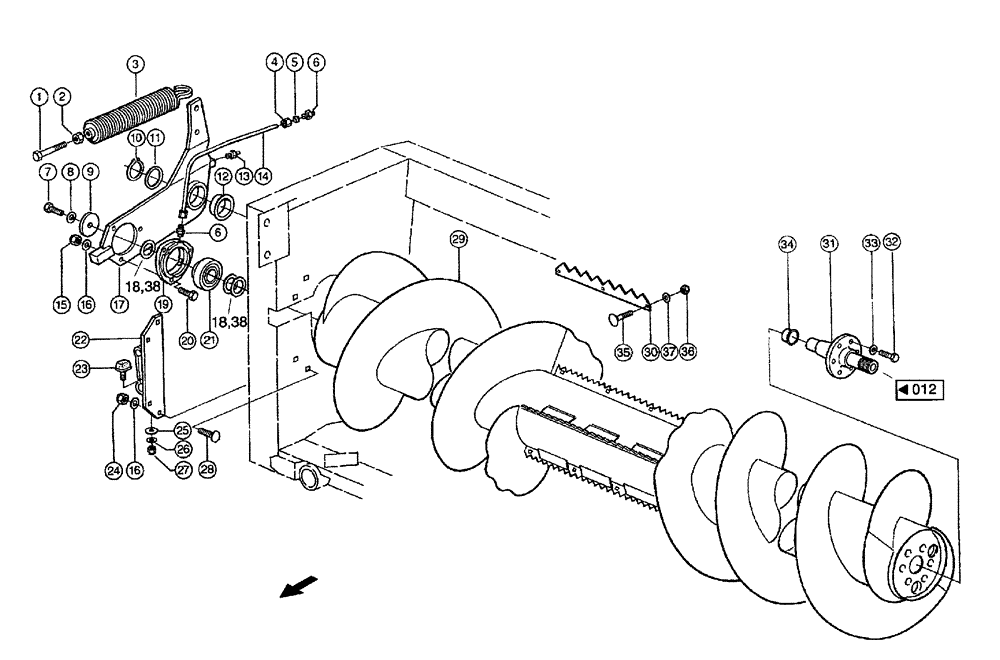

Запчасти Case IH 683 (0013) - FEEDER AUGER (MG6F) (58) - ATTACHMENTS/HEADERS

1

614-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8, Full Thd

ISO4017

1шт.

2

825-1412

NUT,M12, Cl 8

Hex

1шт.

3

951199N0

SPRING

tension

1шт.

4

98-041302

TUBE NUT

connection

2шт.

5

408614N0

OLIVE

2шт.

6

239156N0

FITTING

CONNECTOR male

2шт.

7

239160N0

SCREW

BOLT hex, M12 x 35, MK/8.8-A3C, ISO4017

1шт.

8

239389N0

WASHER

A12

1шт.

9

233031N0

DISC

WASHER, 13 x 62 x 6

1шт.

10

800-1155

RETAINER,55mm ID

RING snap, 55 x 2, DIN471, FST

1шт.

11

239370N0

DISC

SHIM, 55 x 68 x 1/ST2K, DIN988

2шт.

12

008593N0

BUSHING

SLEEVE, 54.9 x 59.9 x 20, length = 340

1шт.

13

179838N0

FITTING

NIPPLE grease

1шт.

14

941838N0

LINE

PIPE lubricating, 5 x 1 x 6000

1шт.

15

825-1410

NUT,M10, Cl 8

3шт.

16

239388N0

DISC

WASHER, A10

7шт.

18

233626N1

DISC

SHIM, 40 x 55 x 1

1шт.

19

913088N0

HOUSING, BEARING

1шт.

20

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

21

213648N0

BEARING, BALL

collar lock, GRAB, 40, NPPB

1шт.

22

912216N0

STOP

mechanic klappbar

1шт.

24

237947N0

NUT

lock, VM10

4шт.

26

239387N0

WASHER

A8

2шт.

27

825-1408

NUT,M8, Cl 8

2шт.

28

502511N0

SCREW

flat, round, head, M10 x 25

4шт.

33

239389N0

WASHER

A12

6шт.

35

502511N0

SCREW

flat, round, head, M10 x 25

12шт.

36

237947N0

NUT

lock, VM10

12шт.

37

239388N0

DISC

WASHER, A10

12шт.

38

233627N1

DISC

SHIM, 40 x 55 x 2

1шт.
