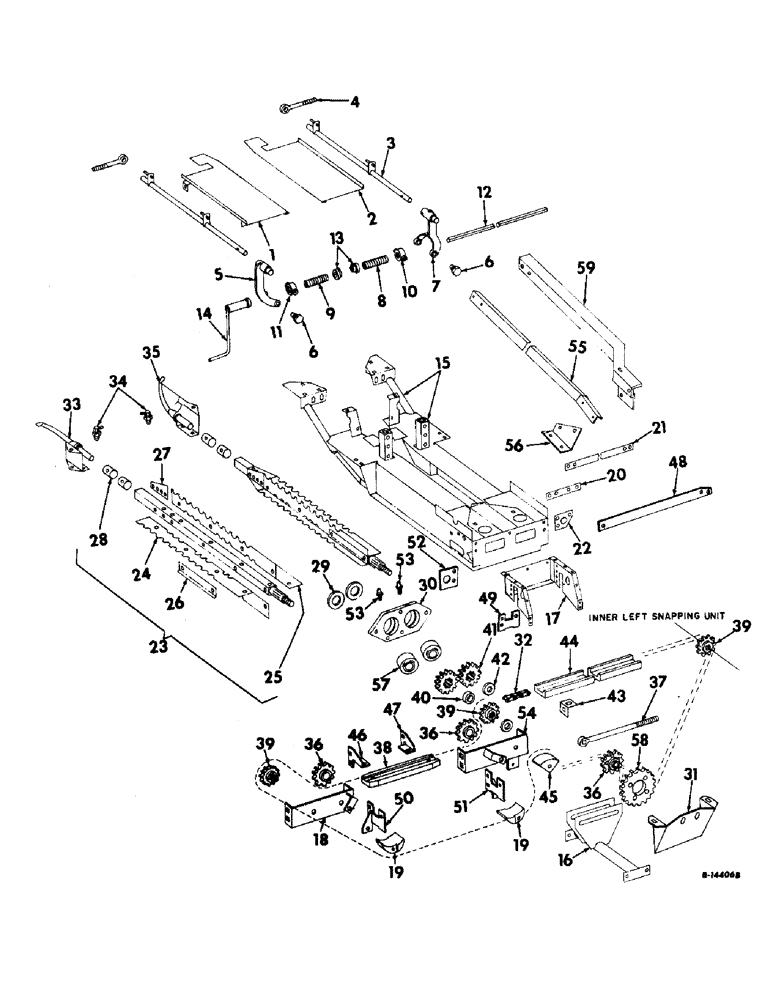

Запчасти Case IH 630N (G-11) - STALK ROLL FRAME, ROLLS AND DRIVE (58) - ATTACHMENTS/HEADERS

1

632198R91

SHIELD ASSY, stalk roll LH

6шт.

2

632199R91

PLATE

SHIELD ASSY, stalk roll RH

6шт.

3

654952R91

CONTROL ASSY, stalk roll shield

12шт.

4

589460R1

BOLT, stalk roll shield adjusting

12шт.

102635

NUT,3/8"-16, G5

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

5

939101R1

LEVER, adjusting lower LH

6шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

6шт.

6

589457R1

SCREW, adjusting nut retainer

24шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

7

939102R1

LEVER, adjusting lower RH

6шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

6шт.

8

589453R1

SCREW, shield adjusting LH-thd

6шт.

9

589454R1

SCREW, shield adjusting RH-thd

6шт.

10

935560R1

NUT, shield adjusting LH-thd

6шт.

11

935561R1

NUT, shield adjusting RH-thd

6шт.

12

154246C1

SHAFT, shield adjusting

2шт.

13

5895

COLLAR, shield adjusting shaft

4шт.

14

589725R91

CRANK ASSY, shield adjusting

1шт.

15

632110R91

FRAME ASSY, stalk roll

6шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

33шт.

NLS

NO LONGER SERVICED

7/16-14 hex

33шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

33шт.

16

155443C91

BRACKET ASSY, roll chain tightener LH

1шт.

16

155444C91

BRACKET ASSY, roll chain tightener RH, 630N serial no. 601 and below

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

17

939055R92

BRACKET ASSY, frame support

6шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

18шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

20шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

15шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

38шт.

NLS

NO LONGER SERVICED

7/16-14 hex

18шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

38шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

18шт.

575807R1

WASHER

13/32 x 1 x 11 ga

12шт.

18

154216C91

BRACKET ASSY, drive idler outer LH

1шт.

18

154217C91

BRACKET ASSY, drive idler outer RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

19

155754C1

BLOCK, stalk roll drv chain gde, 630N serial no. 601 and below

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

654943R1

STRAP, stalk frame anchor

10шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

20шт.

102637

NUT,1/2"-13, G5

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

21

939059R1

STRAP, stalk roll frame

5шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

20шт.

102637

NUT,1/2"-13, G5

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

22

654947R1

BRACKET, stalk shield control

10шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

20шт.

102635

NUT,3/8"-16, G5

20шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

23

155300C91

ROLL ASSY, left driver stalk

3шт.

23

155301C91

ROLL ASSY, right driver stalk

3шт.

23

155302C91

ROLL ASSY, left driven stalk

3шт.

23

155303C91

ROLL ASSY, right driven stalk

3шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4 znp nylon insert

1шт.

178137

WASHER, 1-3/16 med lock

12шт.

24

654298R1

VALVE BLOCK

SECTION, stalk roll no. 1

24шт.

181426

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

SCREW, 1/2-20 x 7/8 hex-hd cap

36шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

36шт.

25

654299R1

VALVE BLOCK

SECTION, stalk roll no. 2

24шт.

181426

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

SCREW, 1/2-20 x 7/8 hex-hd cap

36шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

36шт.

26

153765C2

LUG, stalk roll LH

24шт.

26

935627R2

LUG

stalk roll LH

12шт.

26

935628R2

LUG

stalk roll RH

12шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, 1/2-20 x 1 hex-hd cap

120шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

120шт.

27

654296R1

SEAL ASSY.

SECTION, stalk roll front

48шт.

134909

WASHER

RIVET, 5/16 x 2-1/4 F-HD solid

48шт.

28

589813R1

BUSHING

stalk roll front

24шт.

29

654297R1

WASHER

stalk roll shaft

12шт.

30

153748C11

HOUSING W/BRG, stalk roll

6шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 sq-nk crg

24шт.

NLS

NO LONGER SERVICED

7/16-14 hex

24шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

24шт.

31

151313C1

SHIELD, stalk roll drive sprocket

2шт.

32

CHAIN, stalk roll drive roller, use 237 links from 10-ft roll marked 1793D and one connecting link 1786D, 630N serial no. 601 and below

2шт.

33

589854R91

BRACKET

SUPPORT ASSY, stalk roll LH, 630N serial no. 601 and below

6шт.

33

158779C91

SUPPORT ASSY, stalk roll LH, 630N serial no. 602 and above

6шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

6шт.

14-860

BOLT,Hex, 1/2" - 20 x 3-3/4", Gr 5

SCREW, 1/2-20 x 3-3/4 hex-hd cap

6шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

12шт.

34

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg lub

12шт.

35

589853R91

BRACKET

SUPPORT ASSY, stalk roll RH, 630N serial no. 601 and below

6шт.

35

158780C91

SUPPORT ASSY, stalk roll RH, 630N serial no. 602 and above

6шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

6шт.

14-860

BOLT,Hex, 1/2" - 20 x 3-3/4", Gr 5

SCREW, 1/2-20 x 3-3/4 hex-hd cap

6шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

12шт.

36

629972R91

DRIVE SPROCKET,15T

SPROCKET W/BRG STALK ROLL DRIVE TIGHTENER, 630N serial no. 601 below

2шт.

15192R1

BOLT, 5/8 x 3-3/4 sq-nk crg

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

12шт.

PO12898

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

37

939071R1

BOLT, drive chain adjusting, 630N serial no. 601 and below

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

38

156161C1

BOARD, stalk roll drive chain lower guide

2шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 sq-nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

586318R1

PINION

SPROCKET, stalk roll driven 13 T

6шт.

40

589696R1

BUSHING

SPACER, stalk roll driven sprocket

6шт.

41

580849R1

PINION

GEAR, stalk roll drive 20T

12шт.

42

585964R1

BUSHING

WASHER, stalk roll gear

12шт.

43

589406R1

ANGLE, drive chain guide

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

125-10003

NUT,3/8"-16, G5, LH

3/8-16 hex

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

44

939069R1

GUIDE, stalk roll drive chain

2шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 sq-nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

45

583619R1

BLOCK

drive chain left tightener

1шт.

45

583620R1

BLOCK

drive chain right tightener

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

156162C1

REINFORCEMENT, stalk roll chain lower guide LH

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

47

156163C1

REINFORCEMENT, stalk roll chain lower guide RH

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

48

154213C1

BAR, stalk roll frame outer brace

2шт.

49

152980C1

STRIP, stalk roll frame support filler

10шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

16шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

16шт.

102637

NUT,1/2"-13, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

50

154210C91

BRACKET ASSY, stalk roll frame support filler LH, 630N serial no. 601 and below

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

4шт.

102637

NUT,1/2"-13, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

51

154211C91

BRACKET ASSY, stalk roll frame support filler RH, 630N serial no. 601 and below

2шт.

52

150357C1

BRACKET, stalk roll shield control outer

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

53

16964R1

FITTING

1/4-28 90 deg lub

12шт.

54

154214C91

BRACKET ASSY, drive idler inner LH

1шт.

54

154215C91

BRACKET ASSY, drive idler inner RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

55

150065C1

ANGLE, stalk roll frame brace LH

1шт.

55

150066C1

ANGLE, stalk roll frame brace RH

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

56

654944R1

BRACKET, frame brace LH

2шт.

56

654945R1

BRACKET, frame brace RH

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

57

156030C91

BEARING

ASSY, stalk roll rear relube ball

12шт.

58

575915R1

SPROCKET, stalk roll drive 25T

1шт.

59

165643C91

ANGLE ASSY, stalk roll frame brace outer LH

1шт.

59

165644C91

ANGLE ASSY, stalk roll frame brace outer RH

1шт.
