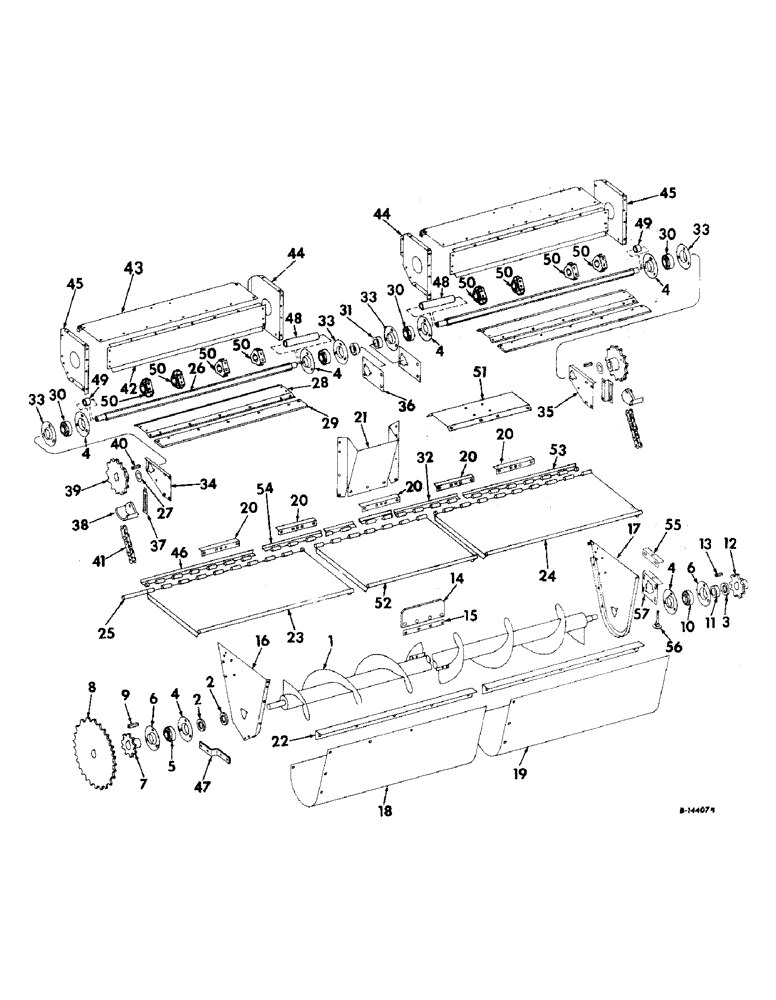

Запчасти Case IH 630N (G-06) - AUGER, BEATER AND DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
154186C91
AUGER ASSY
1шт.
163307C1
JAM NUT
3/4 slt-hex jam
1шт.
181427
BOLT,Hex, 1/2" - 20 x 1", Gr 5
SCREW, 1/2-20 x 1 hex-hd cap
1шт.
NLS
NO LONGER SERVICED
LOCK, 1 1/4"
1шт.
115551
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, Int Tooth, 1/2"
2шт.
21585D
WASHER
17/32 x 1-3/4 x 3/16
1шт.
2
632156R1
THRUST WASHER
auger shaft LH
8шт.
181427
BOLT,Hex, 1/2" - 20 x 1", Gr 5
SCREW, 1/2-20 x 1 hex-hd cap
1шт.
121326
WASHER,1"
LOCK, 1"
1шт.
115551
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, Int Tooth, 1/2"
2шт.
76730H
WASHER
17/32 x 1-1/2 x 11 ga
1шт.
3
654283R1
THRUST WASHER
auger shaft RH
1шт.
4
939461R1
FLANGE
auger shaft brg, for relube brg
6шт.
4
571425R1
FLANGED BEARING
auger shaft brg, not relube brg
6шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
6шт.
5
156011C91
BALL BEARING
BEARING ASSY, auger shaft LH relube ball
1шт.
5
617688R91
BEARING
ASSY, auger LH shaft ball, not relube brg
1шт.
6
939460R91
FLANGE
W/65 DEG FITTING, lub, for relube brg
2шт.
6
571425R1
FLANGED BEARING
auger shaft bearing, not relube brg
2шт.
7
654967R1
SPROCKET, beater drive LH 8T
1шт.
8
935789R91
SPROCKET ASSY, auger driven 50T
1шт.
9
577147R1
KEY
5/16 x 1-3/16 sq parallel
1шт.
10
156011C91
BALL BEARING
BEARING ASSY, auger shaft RH relube ball
1шт.
10
617688R91
BEARING
ASSY, auger RH shaft ball, not relube brg
1шт.
11
557995R11
COLLAR
W/SET SCREW, auger shaft RH
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16-18 x 5/16 hex-soc-hd cup-pt set
1шт.
12
586359R1
SPROCKET, beater drive RH, 8T
1шт.
13
587016R1
KEY, 1/4 x 3/4 sq parallel
1шт.
14
937171R1
BAT, auger
2шт.
15
937170R1
STRAP, auger bat retainer
2шт.
18685R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2
BOLT, 3/8 x 1-1/2 C-Z sq-nk crg
10шт.
120377
NUT,3/8" - 16, Gr 5
10шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
10шт.
16
939020R92
END ASSY, auger trough LH
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk crg
4шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
4шт.
120376
NUT,5/16"-18, G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
17
939021R92
END ASSY, auger trough RH
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk crg
4шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
4шт.
120376
NUT,5/16"-18, G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
18
155348C11
TROUGH ASSY, auger LH
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
6шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
7шт.
120283
SCREW,Hex, 5/16" x 3/4", Gr 5
5/16-18 x 1 slt-truss-hd mach
1шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
19
155349C11
TROUGH ASSY, auger RH
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
6шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
7шт.
120283
SCREW,Hex, 5/16" x 3/4", Gr 5
5/16-18 x 1 slt-truss-hd mach
1шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
20
939017R1
ANGLE, auger trough front
5шт.
21
939015R1
SECTION, auger front center
1шт.
22
155347C1
ANGLE, auger door
2шт.
14986R1
BOLT, 5/16 x 1/2 sq-nk crg
8шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
2шт.
15007R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
12шт.
23
154192C92
COVER ASSY, auger outer LH
1шт.
24
154194C92
COVER ASSY, auger outer RH
1шт.
25
154254C2
ROD, auger cover hinge
1шт.
26
155246C1
SHAFT, beater
2шт.
492-11112
LOCK WASHER,1 1/8"
WASHER, 1-1/8 C-Z med lock
4шт.
27
472323R1
WASHER
beater shaft
14шт.
28
154201C1
SECTION, beater drum
12шт.
181336
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
48шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
48шт.
29
154202C1
BAT, beater
6шт.
151446C1
SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"
5/16 x 1-1/4 slt-truss-hd flange whiz
60шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 x 18 hex
60шт.
115548
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
60шт.
30
939475R91
BEARING
ASSY, beater shaft drive end relube ball
3шт.
30
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
ASSY, beater drive shaft ball, not relube bearing
3шт.
31
557115R11
COLLAR
COLLAR, w/set screw, lkg
2шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set
2шт.
32
154251C2
HINGE, auger door inner RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange whiz lock
6шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
6шт.
33
936460R91
FLANGE W/65 DEG FITTING, brg, for relube brg
4шт.
33
571424R1
FLANGE
beater shaft bearing, not relube brg
4шт.
34
151320C2
BRACKET, beater outer LH bearing
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
35
151321C2
BRACKET, beater outer RH brg
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
36
151319C1
BRACKET, beater inner brg
2шт.
15010R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 sq-nk crg
4шт.
102637
NUT,1/2"-13, G5
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
37
632194R1
BRACKET, beater chain tightener
2шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
4шт.
102635
NUT,3/8"-16, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
38
583619R1
BLOCK
beater chain tightener
1шт.
38
583620R1
BLOCK
beater chain tightener
1шт.
15007R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
2шт.
39
151013C1
SPROCKET, beater driven 13T
2шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
2шт.
575810R1
WASHER
21/32 x 1-1/2 x 11 ga
2шт.
40
577147R1
KEY
5/16 x 1-3/16 sq parallel
2шт.
41
CHAIN, beater drive roller, use 45 links roller chain from 10-ft roll marked 569089R91 and one connecting link 587372R91
2шт.
42
154203C1
SHIELD, beater
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
8шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
8шт.
43
154247C91
COVER ASSY, beater
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
8шт.
44
634468R1
SIDE, beater inner LH
1шт.
44
634467R1
SIDE, beater inner RH
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
8шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z slt-truss-hd whiz lock
8шт.
45
939132R1
SIDE, beater outer LH
1шт.
45
939133R1
SIDE, beater outer RH
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
8шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
8шт.
46
155034C2
HINGE, auger door outer LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange whiz lock
5шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
5шт.
47
939025R1
BRACKET, auger trough end support
2шт.
17412R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
3/8 x 3/4 hex-hd mach
8шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x1 sq-nk crg
8шт.
102635
NUT,3/8"-16, G5
16шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
16шт.
48
151327C1
SPACER, beater shaft inner
2шт.
49
151315C1
SPACER, beater shaft bearing
2шт.
50
155160C1
SUPPORT, beater section, 630N serial no. 797 and below
8шт.
50
166390C1
SUPPORT, beater section, 630N serial no. 798 and above
8шт.
51
939090R1
REINFORCEMENT, beater drum section
6шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex
60шт.
151446C1
SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"
5/16 x 1-1/4 slt-truss-hd flange whiz
60шт.
115548
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
60шт.
52
154190C91
COVER ASSY, auger center
1шт.
53
155035C2
HINGE, auger door outer RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange whiz lock
5шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
5шт.
54
154250C2
HINGE, auger door inner LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange whiz lock
6шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
6шт.
55
166045C1
ANGLE, auger adjustment
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
56
166048C1
BOLT, auger adjustment
2шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
4шт.
57
166046C1
BRACKET, auger bearing
2шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
8шт.
Выбрано товаров: 172
