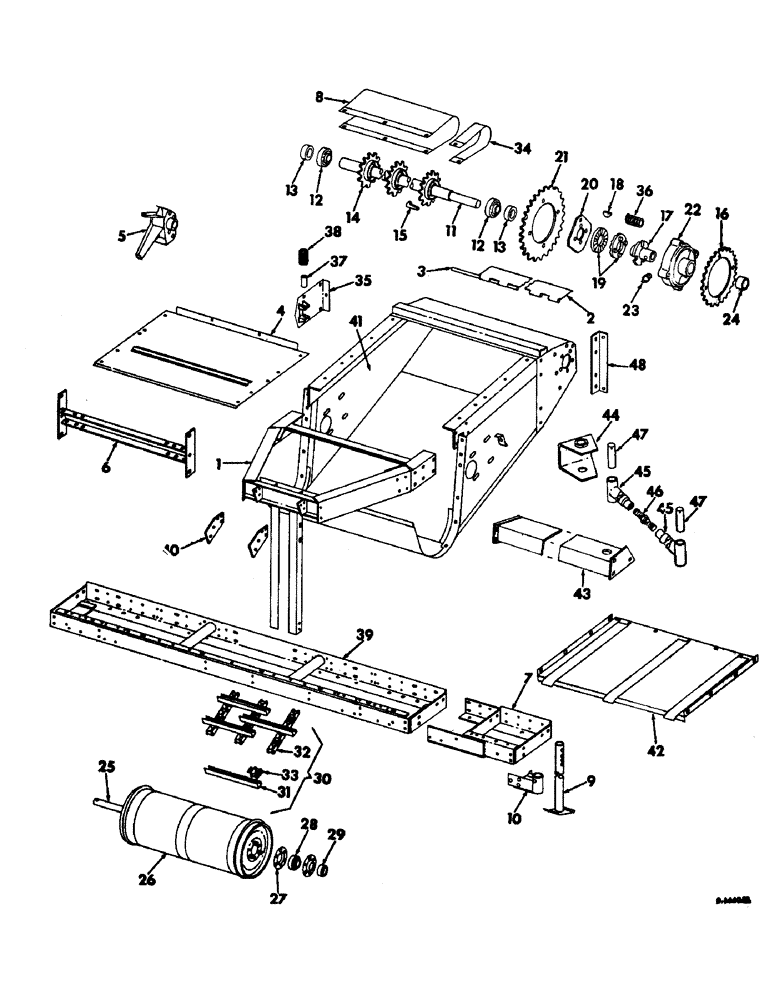

Запчасти Case IH 630N (G-03) - FEEDER FRAME, LIFT, STAND & FEED CONVEYOR (58) - ATTACHMENTS/HEADERS

1

938931R91

FRAME ASSY, feeder extension

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

2

589229R11

EXTENSION ASSY, feeder frame bottom

1шт.

3

589528R1

ROD, feeder frame bottom extension hinge

1шт.

4

938927R91

SECTION ASSY, feeder cover

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1/2 hex-hd mach

4шт.

17447R1

BOLT

7/16-18 x 1-1/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

5

938974R91

BRACKET ASSY, feeder frame brg LH

1шт.

5

938975R91

BRACKET ASSY, feeder frame brg RH

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

6шт.

102637

NUT,1/2"-13, G5

2шт.

186635

SCREW

SCRWE, 1/2 x 3 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

152525C91

CHANNEL ASSY, feeder shaft shield

1шт.

14986R1

BOLT, 5/16-18 x 1/2 sq-nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

154252C91

EXTENSION ASSY, main frame LH

1шт.

7

154253C91

EXTENSION ASSY, main frame RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

12шт.

102635

NUT,3/8"-16, G5

2шт.

102637

NUT,1/2"-13, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

8

152528C1

SHIELD, feeder shaft center

2шт.

14986R1

BOLT, 5/16-18 x 1/2 short sq-nk crg

12шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

12шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

9

589573R92

STAND ASSY

2шт.

10

589576R91

HOLDER ASSY, stand LH

1шт.

10

589577R91

HOLDER ASSY, stand RH

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

102637

NUT,1/2"-13, G5

6шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

11

653861R1

SHAFT, feeder conveyor

1шт.

12

256557R91

BEARING

ASSY, feed conveyor shaft ball, optional for brg 585497R91

2шт.

12

585497R91

BEARING

ASSY, feed conveyor shaft ball, optional for brg 265557R91

2шт.

13

557113R11

COLLAR

ASSY, locking, for use w/brg 265557R91

2шт.

13

585498R11

COLLAR

ASSY, locking, for use w/brg 585497R91

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/4 hex-soc-hd cup pt set

2шт.

14

937243R1

SPROCKET, feed conveyor drive 11T

3шт.

15

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

3шт.

16

589382R1

SPROCKET, main drive 29T

1шт.

17

589379R91

HUB

HOLDER ASSY, feed conveyor drive slip clutch

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

V4941/2

PIN

5/16 x 2 std hd

1шт.

18

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff 28

1шт.

19

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

20

589381R1

RETAINER, feed conveyor drive slip clutch

1шт.

19836R1

BOLT, 1/2 x 3-3/4 dld sq-nk crg

4шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z hex

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

21

935867R1

SPROCKET, feeder driven 38T

1шт.

17625R1

BOLT, 3/8-16 x 3 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

589384R11

HUB ASSY, feeder driven, includes ref no. 24

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NS-34 str lub

1шт.

24

18519K

BUSHING

feeder driven sprocket hub

1шт.

25

938990R1

SHAFT, feeder conveyor drum

1шт.

26

589363R91

DRUM ASSY, feeder conveyor

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

27

629958R1

FLANGE

conveyor drum brg

2шт.

28

564991R91

BEARING

ASSY, conveyor drum ball

2шт.

29

658006R11

COLLAR

W/SET SCREW LKG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup pt set

2шт.

30

938985R91

CHAIN W/SLATS, feeder conveyor

1шт.

31

589370R1

SLAT, feeder conveyor chain

32шт.

104249

RIVET, 1/4 x 1/2 small F-HD solid FH, 1/4" x 1/2"

1шт.

32

587371R93

DRAG LINK

LINK, connecting

1шт.

33

589656R91

LINK

ASSY, conveyor chain attaching

1шт.

34

152520C1

SHIELD, feeder shaft end

2шт.

14986R1

BOLT, 5/16-18 x 1/2 sq-nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

938978R91

BRACKET ASSY, feed conveyor drum support RH

1шт.

35

938977R91

BRACKET ASSY, feed conveyor drum support LH

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

8шт.

102635

NUT,3/8"-16, G5

8шт.

NLS

NO LONGER SERVICED

7/16-14 hex

6шт.

461189R2

SCREW, 7/16-14 x 3-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

36

NLS

NO LONGER SERVICED

slip clutch

4шт.

37

H39274

SPACER,1/2" Pipe x 1 1/2"

conveyor drum adjusting bolt

2шт.

38

PO144

SPRING

drum adjusting bolt

2шт.

39

938959R92

FRAME ASSY, main

1шт.

40

939051R1

SUPPORT, stalk roll frame brace

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

3шт.

NLS

NO LONGER SERVICED

7/16-14 hex

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

41

938900R94

SHELL ASSY, feeder

1шт.

17427R1

BOLT, 7/16-14 x 1 hex-hd mach

4шт.

17447R1

BOLT

7/16-14 x 1-1/4 hex-hd mach

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

120283

SCREW,Hex, 5/16" x 3/4", Gr 5

5/16-18 x 1 slt-truss-hd mach

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

Q5028

WASHER

15/32 x 1 x 11 ga

4шт.

42

152529C91

SHIELD ASSY, feeder conveyor chain

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

43

165340C91

SUPPORT ASSY, auger end LH

1шт.

43

165341C91

SUPPORT ASSY, auger end RH

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

4шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

23301R1

LOCK PIN,5/16" x 1 1/4", Slotted

Pin, 5/16" x 1 1/4", Slotted

4шт.

44

163378C91

BRACKET ASSY, auger end support

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

8шт.

23301R1

LOCK PIN,5/16" x 1 1/4", Slotted

Pin, 5/16" x 1 1/4", Slotted

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

45

163381C91

PIPE ASSY, auger end support LH

2шт.

45

163382C91

PIPE ASSY, auger end support RH

2шт.

46

589748R11

SCREW ASSY, auger end support pipe adjusting

2шт.

426899

NUT,Jam, 1"-8, G5

1 C-Z hex jam

2шт.

47

564555R1

PIN, auger end support pipe

4шт.

48

169140C1

ANGLE, feeder side, for use w/938900R94 shell assy

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.
