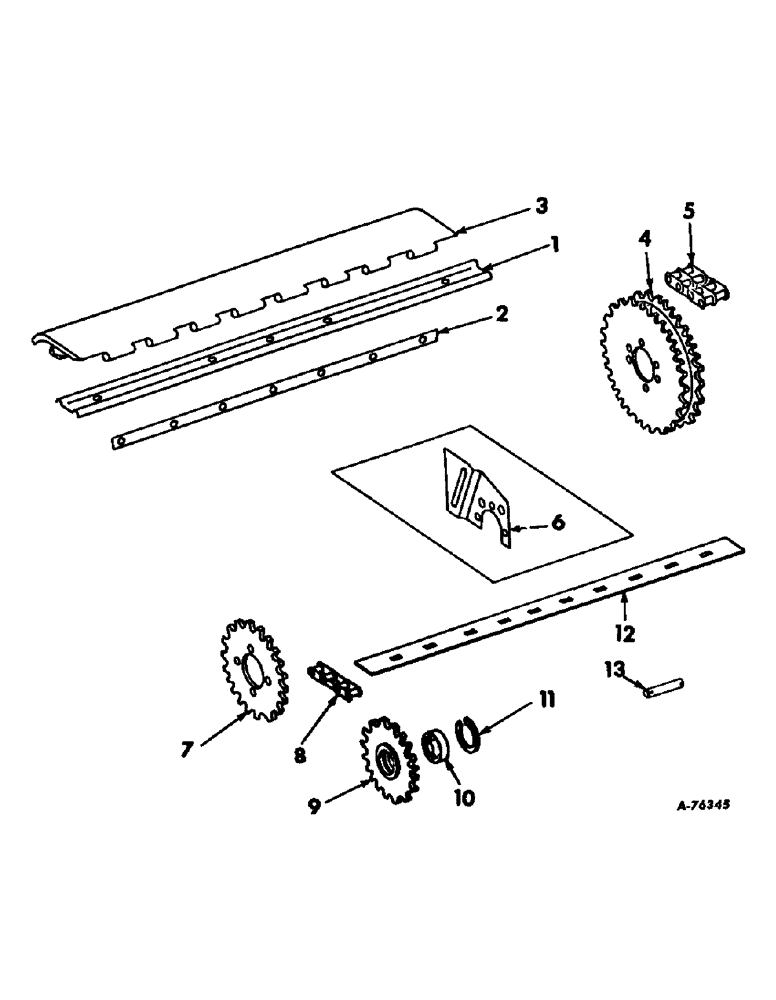

Запчасти Case IH 630N (G-25) - COMPLETING PARTS AND ADDITIONAL COMPLETING PARTS (58) - ATTACHMENTS/HEADERS

1

633622R1

BAR, cylinder filler

8шт.

120369

NUT,3/8"-24, G5

32шт.

181637

SCREW, 3/8 x 1 C-Z hex-hd cap

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

2

634640R1

RETAINER, concave front extension hinge

1шт.

86837293

SHAFT

1/2 x 1 C-Z hex-hd cap

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

3

589523R91

SPROCKET, cylinder drive 43T

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 hex-hd mach

1шт.

5

CHAIN, cylinder drive extension roller, use 7 links from 10-ft roll marked 1355D, one two pitch combination offset link 570988R91 and 3 connecting links 569206R91

1шт.

6

634631R1

SUPPORT, feeder drive tightener sprocket

1шт.

22861R1

BOLT, 7/8 x 3 C-Z sq-nk crg

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2 x 1 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

21041R1

WASHER

17/32 x 2 x 16 ga C-Z

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

4шт.

21747R1

WASHER,1.22" ID x 2" OD x 0.07" Thk

1-7/32 x 2 x 16 ga C-Z

3шт.

7

589362R1

SPROCKET, feeder drive 23T

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

181643

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 C-Z hex-hd cap

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

13шт.

8

CHAIN, feeder drive roller, use 99 links from 10-ft roll 1794D, one offset link 1398D and one connecting link 1397D

1шт.

9

589538R91

SPROCKET ASSY.

SPROCKET ASSY, feeder drive idler 17T

1шт.

10

580095R91

BALL BEARING

BEARING ASSY, feeder idler sprocket

1шт.

11

555602R1

RING

idler sprocket brg snap

1шт.

12

153182C1

STRAP, grate finger tie

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

Q1505

WASHER

13/32 x 1 x 16 ga

13шт.

13

564986R1

PIN, cylinder lift extension

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

4шт.
