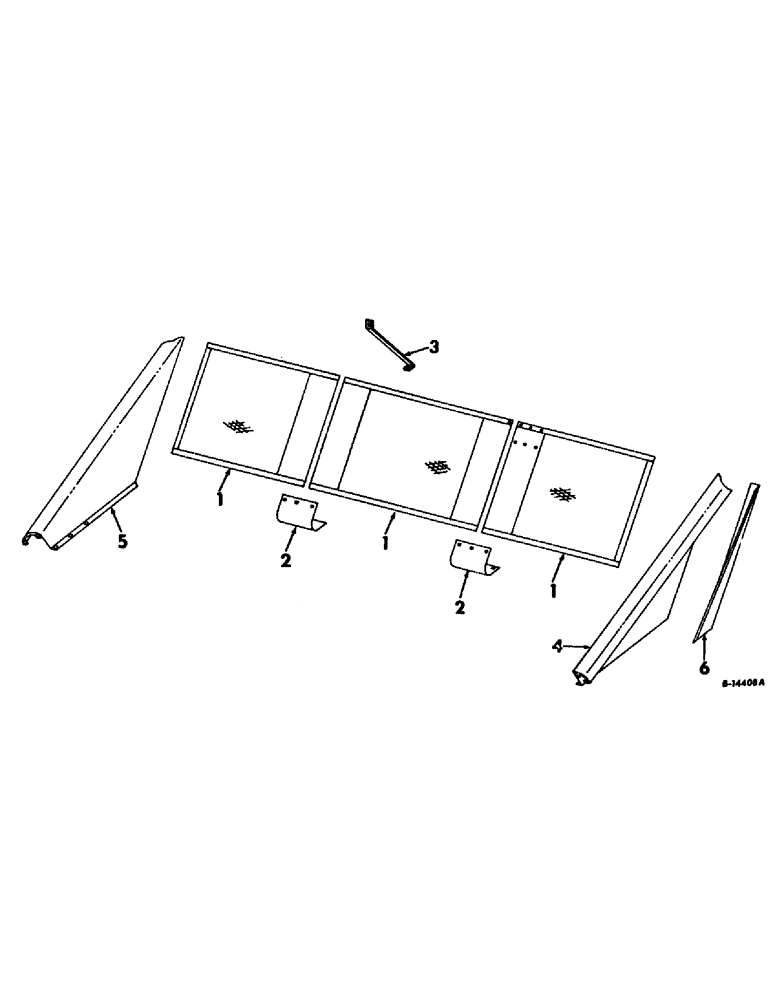

Запчасти Case IH 630N (G-23) - GATHERER EXTENSION (58) - ATTACHMENTS/HEADERS

1

155547C91

SCREEN ASSY, gatherer extension, serial no. 751 and below

4шт.

1

163155C91

SCREEN ASSY, gatherer extension, serial no. 752 and above, low silhouette corn heads

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

22шт.

120376

NUT,5/16"-18, G5

22шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

2

632416R2

REINFORCEMENT, gatherer extension

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

9шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

9шт.

3

632417R1

BRACE, gatherer extension, serial no. 751 and below

2шт.

3

161000C1

BRACE, gatherer extension, serial no. 752 and above, low silhouette corn heads

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

632410R91

SHIELD ASSY, gatherer extension LH, serial no. 751 and below

1шт.

4

159995C2

SHIELD, gatherer extension LH, serial no. 752 and above, low silhouette corn heads

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

5

632411R91

SHIELD ASSY, gatherer extension RH, serial no. 751 and below

1шт.

5

159996C2

SHIELD ASSY, gatherer extension RH, serial no. 752 and above, low silhouette corn heads

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

6

653870R1

REINFORCEMENT, gatherer extension LH shield

1шт.

6

653871R1

REINFORCEMENT, gatherer extension RH shield, serial no. 751 and below

1шт.

6

159997C1

SUPPORT, gatherer extension LH shield

1шт.

6

159998C1

SUPPORT, gatherer extension RH shield, serial no. 752 and above, low silhouette corn heads

1шт.
