Запчасти Case IH 630N (G-20) - GATHERER SHIELDS AND DIVIDER (58) - ATTACHMENTS/HEADERS

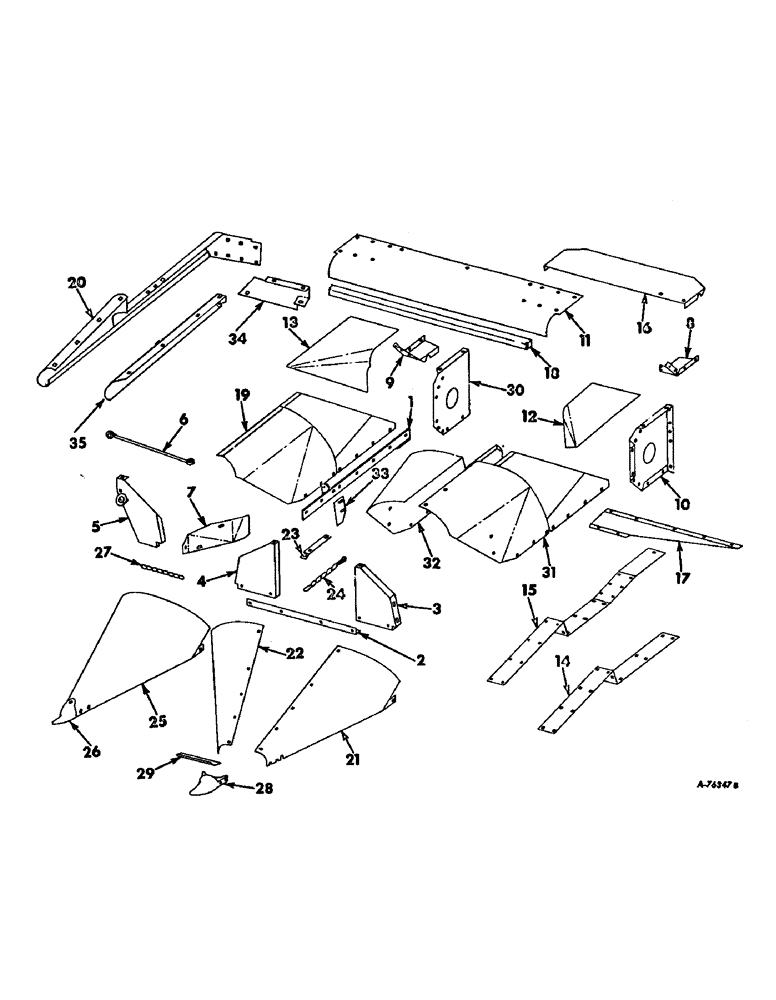

Схема запчастей Case IH 630N - (G-20) - GATHERER SHIELDS AND DIVIDER (58) - ATTACHMENTS/HEADERS
20
13
2
18
28
4
10
21
12
15
32
9
31
29
34
26
23
16
19
24
7
27
3
17
35
33
6
8
25
30
22
5
11
14

Артикул

Название

Примечание

Количество

1

632216R91

SUPPORT ASSY, gatherer shield LH

6шт.

1

632217R91

SUPPORT ASSY, gatherer shield RH

6шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

12шт.

20897R1

BOLT,Short NK, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 C-Z sq-nk crg

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

2

939153R1

ANGLE, gatherer tie

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

3

939145R1

SUPPORT, front inner gatherer shield RH, serial no. 751 and below

5шт.

3

164938C1

SUPPORT, front inner gatherer shield RH, serial no. 752 and above, low silhouette corn heads

5шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

4

939144R1

SUPPORT, front inner gatherer shield LH, serial no. 751 and below

5шт.

4

164937C1

SUPPORT, front inner gatherer shield LH, serial no. 752 and above, low silhouette corn heads

5шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

5

589889R91

BRACKET ASSY, outer gatherer shield LH

1шт.

5

589890R91

BRACKET ASSY, outer gatherer shield RH, serial no. 751 and below

1шт.

5

164939C91

BRACKET ASSY, outer gatherer shield LH

1шт.

5

164940C91

BRACKET ASSY, outer gatherer shield RH, serial no. 752 and above, low silhouette corn heads

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

587002R1

BRACE, outer gatherer shield support LH

1шт.

6

587003R1

BRACE, outer gatherer shield support RH

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

632220R2

STRIP, divider hinge LH

6шт.

7

632221R2

STRIP, divider hinge RH, serial no. 751 and below

6шт.

7

164935C1

STRIP, divider hinge LH

6шт.

7

164936C1

STRIP, divider hinge RH, serial no. 752 and above, low silhouette corn heads

6шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

8

654849R2

BOTTOM, beater inner LH

2шт.

9

654850R2

BOTTOM, beater inner RH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

10

634468R1

SIDE, beater inner LH

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

63226R1

SCREW, 5/16 x 1/2 whiz lock

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

154247C91

COVER ASSY, beater

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

12

939128R1

EXTENSION, beater cover LH

1шт.

12

939129R1

EXTENSION, beater cover RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

14шт.

13

632223R1

EXTENSION, beater cover LH

1шт.

13

632224R1

EXTENSION, beater cover RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

14шт.

14

939142R1

FILLER, inner gatherer sheet, serial no. 751 and below

4шт.

14

165069C1

FILLER, inner gatherer sheet, serial no. 752 and above, low silhouette corn heads

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

64шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

64шт.

15

939143R1

FILLER, inner gatherer sheet center, serial no. 751 and below

1шт.

15

165068C1

FILLER, inner gatherer sheet center, serial no. 752 and above, low silhouette corn heads

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

22шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

22шт.

16

152122C91

BOTTOM ASSY, beater center

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

939131R1

EXTENSION, beater bottom

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

56шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

56шт.

18

155815C1

REINFORCEMENT, beater

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

14шт.

19

654312R91

SHIELD ASSY, gatherer RH

1шт.

19

654311R91

SHIELD ASSY, gatherer LH, serial no. 751 and below

1шт.

19

164931C91

SHIELD ASSY, gatherer LH

1шт.

19

164932C91

SHIELD ASSY, gatherer RH, serial no. 752 and above, low silhouette corn heads

1шт.

459063R1

SPRING NUT

5/16 retainer

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

63226R1

SCREW, 5/16 x 1/2 C-Z whiz lock

4шт.

20

589912R91

EXTENSION ASSY, outer gatherer shield LH

1шт.

20

589913R91

EXTENSION ASSY, outer gatherer shield RH, serial no. 751 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

21

939154R91

DIVIDER ASSY, center LH

5шт.

22

939155R91

DIVIDER ASSY, center RH

5шт.

17178R1

BOLT, 1/2 x 2-1/4 C-Z sq-nk crg

10шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 znp nylon insert

1шт.

23

589508R1

BRACKET, divider adjusting chain

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

10шт.

24

589509R91

CHAIN ASSY, center divider adjusting

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

469668R1

WASHER

13/32 x 3/4 x 11 ga C-Z

5шт.

25

589510R92

DIVIDER ASSY.

DIVIDER ASSY, outer LH

1шт.

25

589511R92

DIVIDER ASSY.

DIVIDER ASSY, outer RH

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

1/4 C-Z hex

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120697

SCREW, 1/4 x 3/4 C-Z slt-f-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

26

U911

POINT, outer divider LH

1шт.

26

U912

END ASSY.

POINT, outer divider RH

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120697

SCREW, 1/4 x 3/4 C-Z slt-f-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

589522R91

CHAIN ASSY, outer divider adjusting

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

28

UB1526

POINT, center divider

5шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

29

626604R1

BRACE, divider

5шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 3/4 C-Z sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

30

634467R1

SIDE, beater inner RH

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

31

939116R91

SHIELD ASSY, gatherer inner RH, serial no. 751 and below

5шт.

31

164928C91

SHIELD ASSY, gatherer inner RH, serial no. 752 and above, low silhouette corn heads

5шт.

459063R1

SPRING NUT

5/16 retainer

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

10шт.

32

939115R91

SHIELD ASSY, gatherer inner LH, serial no. 751 and below

5шт.

32

164927C91

SHIELD ASSY, gatherer inner LH, serial no. 752 and above, low silhouette corn heads

5шт.

459063R1

SPRING NUT

5/16 retainer

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

10шт.

33

161065C1

SEAL

SEAL, ear corn saver

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

24шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

24шт.

34

165641C1

BRACKET, gatherer shield outer rear LH

1шт.

34

165642C1

BRACKET, gatherer shield outer rear RH, 630N serial no. 752 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

35

162801C91

EXTENSION ASSY, outer gatherer shield LH

1шт.

35

162802C91

EXTENSION ASSY, outer gatherer shield RH, low silhouette corn heads, serial no. 752 and above

1шт.

Выбрано товаров: 161
