Запчасти Case IH 630N (G-17) - GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

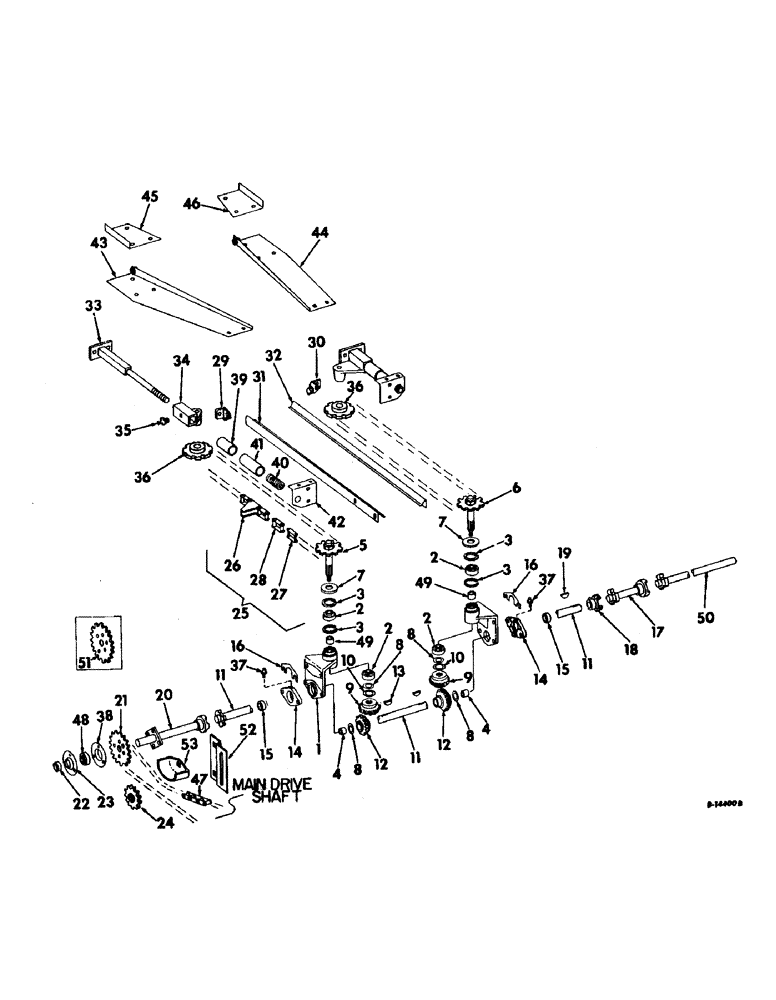

Схема запчастей Case IH 630N - (G-17) - GATHERER DRIVE (58) - ATTACHMENTS/HEADERS
51
15
46
7
8
12
8
8
7
1
13
16
28
2
36
4
16
45
10
34
37
48
52
40
11
15
42
26
14
23
19
3
6
37
39
31
49
8
38
35
27
17
44
11
9
3
29
2
49
50
18
3
11
36
4
10
41
9
22
14
33
43
21
2
32
47
53
5
25
20
24
3
30
12
2

Артикул

Название

Примечание

Количество

1

654275R1

HOUSING, gatherer drive brg

12шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

24шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

24шт.

2

586609R91

BALL BEARING

BEARING ASSY, gatherer drive ball

24шт.

3

555602R1

RING

gatherer drive brg snap

24шт.

4

936643R1

SPACER, gatherer drive brg

12шт.

5

156005C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive 8T

6шт.

5

654276R92

SPROCKET ASSY, gatherer chain drive LH 8T, threaded

6шт.

161386C1

NUT

5/8-18 C-Z slt-hex jam

6шт.

6

156005C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive 8T

6шт.

6

654277R92

SPROCKET ASSY, gatherer chain drive RH 8T, threaded

6шт.

161386C1

NUT

5/8-18 C-Z slt-hex jam

6шт.

7

654284R1

WASHER

gatherer driven shaft cup

12шт.

8

654283R1

THRUST WASHER

gatherer drive sprocket

36шт.

9

156007C1

GEAR

gatherer driven bevel 18T, splined

12шт.

9

654280R1

PINION

GEAR, gatherer driven bevel LH thd 8T, threaded

6шт.

9

654281R1

PINION

GEAR, gatherer driven bevel RH thd 8T, threaded

6шт.

70119D

NUT

5/8-18 slt hex

12шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

12шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

12шт.

10

654338R1

THRUST WASHER

gatherer driven shaft

12шт.

11

939106R91

SHAFT ASSY, gatherer drive outer

4шт.

12

935611R1

PINION

GEAR, gatherer drive bevel 18T

12шт.

13

118000

WOODRUFF KEY,#27, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 27

12шт.

14

156032C91

FLANGED BEARING

HOUSING W/BRG, gatherer drive outer, for relube brg

12шт.

14

654289R11

HOUSING ASSY.

HOUSING W/BEARING, gatherer drive outer, not relube brg

12шт.

15

455102R11

COLLAR

W/SET SCREW, gatherer drive brg lkg

12шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup pt set

12шт.

16

654288R1

SHIM, gatherer drive bevel gear

24шт.

17

939109R91

SHAFT ASSY, gatherer drive inner coupling

4шт.

18

939108R1

COUPLING

gatherer drive outer shaft female

4шт.

19

117987

KEY

1/4 x 2-1/4 Woodruff 27

4шт.

20

589594R91

SHAFT ASSY, gatherer drive outer coupling

2шт.

21

589600R1

SPROCKET, gatherer driven 24T

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

22

455102R11

COLLAR

W/SET SCREW, outer coupling shaft lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

23

937518R91

FLANGE

W/STR LUB FITTING, brg, for relube brg

2шт.

23

571424R1

FLANGE

gatherer outer coupling shaft brg, not relube brg

2шт.

24

582389R91

DRIVE SPROCKET

SPROCKET, gatherer drive idler 15T, 630N serial no. 751 and below

2шт.

15146R1

BOLT, 5/8 x 3 sq-nk crg

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

8шт.

Q1595

WASHER, 21/32 sq x 1-3/4 x 12 ga

4шт.

25

654164R91

CHAIN (AG)

CHAIN W/FLIGHTS, gatherer

12шт.

26

935619R91

GATHERING CHAIN

CHAIN, gatherer section roller

1шт.

27

587371R93

DRAG LINK

LINK, gatherer roller chain connecting

1шт.

28

450423R1

DRAG LINK

LINK, gatherer roller chain

1шт.

29

937173R1

GUIDE, gatherer chain LH

6шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

30

937174R1

GUIDE, gatherer chain RH

6шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

31

589922R3

GUIDE, gatherer chain holddown LH

6шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

42шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

42шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

6шт.

32

589923R3

GUIDE, gatherer chain holddown RH

6шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

42шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

42шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

6шт.

33

632172R91

SHAFT ASSY, gatherer carrier

12шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

24шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

24шт.

18549R1

NUT,7/8"-9, GB

7/8-9 ESSNA stop

12шт.

102635

NUT,3/8"-16, G5

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

12шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

24шт.

Q1505

WASHER

13/32 x 1 x 16 ga

24шт.

34

654332R2

CARRIER, gatherer sprocket

12шт.

35

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

12шт.

36

155915C91

DRIVE SPROCKET

SPROCKET, gatherer idler 8T

12шт.

586116R1

BOLT,Hex, 3/4" - 10 x 2 1/2"

3/4 x 2-1/2 hex-hd mach

12шт.

115554

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 int-tooth lock

12шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

36шт.

37

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg lube

11шт.

38

937517R1

FLANGE

gatherer outer coupling brg, for relube brg

2шт.

38

571424R1

FLANGE

gatherer outer coupling shaft, not relube brg

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

39

632189R1

SPACER, gatherer carrier shaft

12шт.

40

544

CANVAS

SPRING, gatherer carrier shaft

12шт.

41

589856R1

SPACER, gatherer carrier shaft spring

12шт.

42

632185R1

BRACKET, gatherer carrier shaft LH

6шт.

42

632186R1

BRACKET, gatherer carrier shaft RH

6шт.

15108R1

BOLT, 3/8 x 2-1/2 sq-nk crg

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

43

632183R11

BRACKET ASSY, gatherer support LH

6шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

24шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

30шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

30шт.

44

632184R11

BRACKET ASSY, gatherer support RH

6шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

24шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

30шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

30шт.

45

632180R1

BRACE, divider outer LH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

46

632181R1

BRACE, divider outer RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

47

CHAIN, gatherer drive LH roller, use 81 links from 10-ft roll marked 1793D, 1 connecting link 1786D, 1 offset link 1318D

1шт.

47

CHAIN, gatherer drive RH roller, use 65 links from 10-ft roll marked 1793D, 1 connecting link 1786D

1шт.

48

482303R91

BALL BEARING,1.0005" ID x 52 mm OD x 0.8434"

BEARING ASSY, gatherer outer coupling shaft relube ball

2шт.

48

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, gatherer outer coupling shaft ball, not relube brg

2шт.

49

654385R1

SPACER,26.21mm ID x 31.75mm OD x 19.05mm L

gatherer drive brg outer

12шт.

50

654948R91

SHAFT ASSY, gatherer drive inner

2шт.

51

161069C1

SPROCKET, gatherer drive slow speed special 28T, 3.44 mph

2шт.

51

160070C1

SPROCKET, gatherer drive slow speed special 30T, 3.00 mph

2шт.

52

166019C1

BRACKET, gatherer drive tightener, 630N serial no. 752 and above

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

53

583620R1

BLOCK

gatherer drive tightener, 630N serial no. 752 and above

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 134
