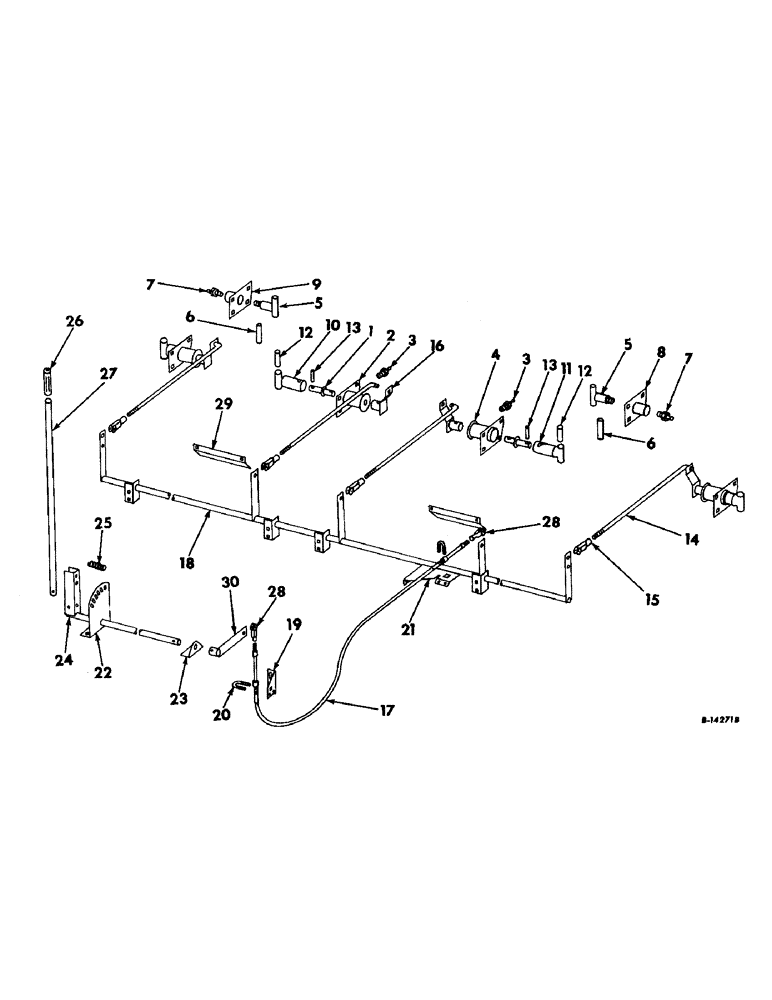

Запчасти Case IH 630N (G-15) - STALK ROLL CONTROL (58) - ATTACHMENTS/HEADERS

1

580187R91

SHAFT ASSY, stalk roll control

6шт.

2

586016R91

HOUSING ASSY, stalk roll cam LH

3шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

12шт.

NLS

NO LONGER SERVICED

7/16-14 hex

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 67-102 deg lub

6шт.

4

586017R91

HOUSING ASSY, stalk roll cam RH

3шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

12шт.

NLS

NO LONGER SERVICED

7/16-14 hex

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

5

587511R1

ANCHOR, stalk roll support

6шт.

17296R1

LOCK NUT,3/4"-16

NUT, 3/4-16 ESNA lock

6шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

Q216

WASHER

1-3/32 x 1-3/4 x 16 ga, or as required

48шт.

Q5099

WASHER

25/32 x 1-3/4 x 11 ga

6шт.

6

580184R1

BUSHING, stalk roll support anchor, 630N serial no. 601 and below

3шт.

6

158783C1

BUSHING

stalk roll support anchor, 630N serial no. 602 and above

3шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

6шт.

8

589692R91

HUB ASSY, stalk roll support RH

3шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

12шт.

NLS

NO LONGER SERVICED

7/16-14 hex

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

9

589691R91

HUB ASSY, stalk roll support LH

3шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

12шт.

NLS

NO LONGER SERVICED

7/16-14 hex

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

10

580180R1

CAM, stalk roll adjustment LH

3шт.

11

580181R1

CAM, stalk roll adjustment RH

3шт.

12

580184R1

BUSHING, stalk roll adjustment cam, 630N serial no 601 and below

6шт.

12

158783C1

BUSHING

stalk roll adjustment cam, 630N serial no 602 and above

6шт.

13

584453R1

PIN

3/8 x 1-5/16 chamfered str

6шт.

14

589702R1

ROD, stalk roll control

6шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex jam

6шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

6шт.

15

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

6шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

6шт.

114787

AXLE PIN

PIN, 1/2 x 1-27/64 rod end

6шт.

16

589709R91

HUB ASSY, stalk roll control cam

6шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

6шт.

17

589700R91

CABLE, stalk roll control

1шт.

18

154244C91

PIPE ASSY, stalk roll control torsion

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

19

589356R1

BRACKET, stalk roll control cable

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

102637

NUT,1/2"-13, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20

33175A

U-BOLT, stalk roll control cable

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

150531C1

BRACKET, stalk roll control

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

589704R1

SECTOR, stalk roll control

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

589705R1

BRACKET, stalk roll torque pipe

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

24

589706R91

PIPE ASSY, stalk roll torque, 630N serial no. 601 and below

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

3/8 x 3-1/2 hex-hd mach

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Esna stop 3/8"-16, GB

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

3шт.

24

161037C91

PIPE ASSY, stalk roll torque, 630N serial no. 602 and above

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

3/8 x 3-1/2 hex-hd mach

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Esna stop 3/8"-16, GB

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

3шт.

25

C33464

SPRING, stalk roll control lever

1шт.

26

568043R1

GRIP, stalk roll control lever

1шт.

27

589707R1

PIPE, stalk roll control

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

28

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 rod end stalk roll control cable

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

114785

PIN, 3/8 x 1-3/32 rod end

2шт.

29

589792R1

SHIELD, stalk roll control torsion

4шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

12шт.

NLS

NO LONGER SERVICED

7/16-14 hex

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

30

589788R91

ARM ASSY, stalk roll control, 630N serial no. 601 and below

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

30

161034C91

ARM ASSY, stalk roll control, 630N serial no. 602 and above

1шт.

557139R1

PIN, 3/8 x 1-1/2 slt spring

1шт.
