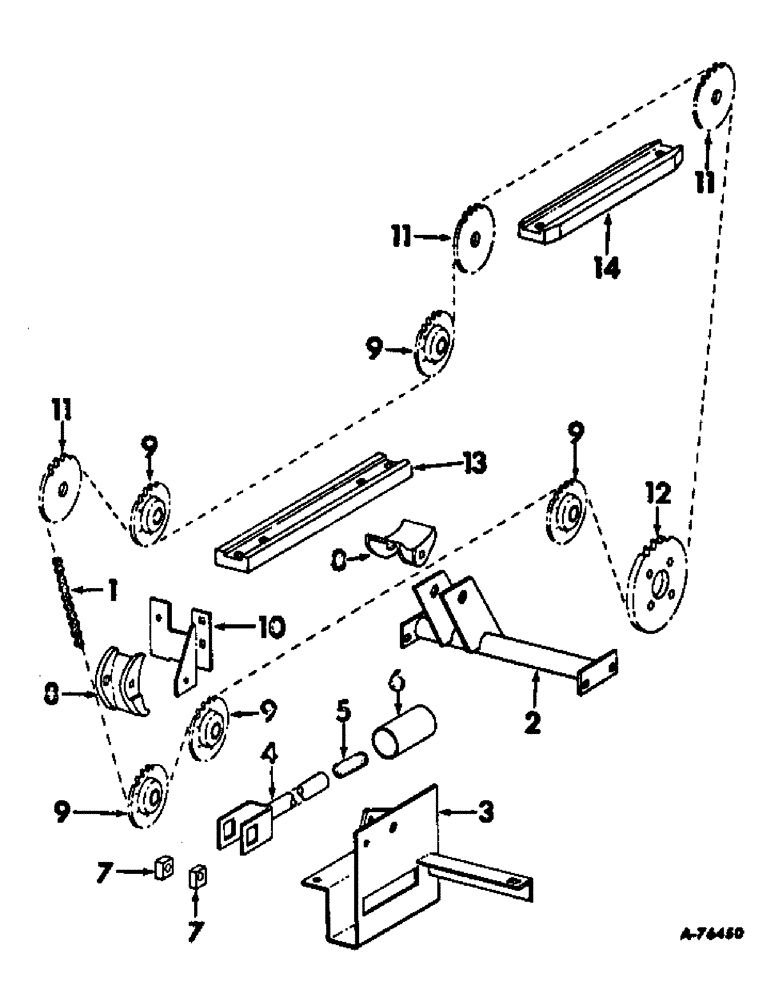

Запчасти Case IH 630N (G-14) - STALK ROLL DRIVE, SERIAL NO. 602 AND ABOVE (58) - ATTACHMENTS/HEADERS

1

CHAIN, stalk roll drive roll, use 251 links from 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

2

155239C91

BRACKET ASSY, stalk roll drive chain idler LH

1шт.

2

155240C91

BRACKET ASSY, stalk roll drive chain idler RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

156683C91

BRACKET ASSY, drive chain tightener LH

1шт.

3

156684C91

BRACKET ASSY, drive chain tightener RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

6шт.

271501

SOCKET

NUT, 7/16 C-Z hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

4

151656C91

YOKE ASSY, drive chain tightener

2шт.

18549R1

NUT,7/8"-9, GB

7/8 ESNA stop

2шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

2шт.

5

544

CANVAS

SPRING, drive chain tightener yoke

2шт.

6

589856R1

SPACER, drive chain tightener yoke

2шт.

7

156691C1

BAR

BLOCK, drive chain tightener yoke

4шт.

8

155754C1

BLOCK, drive chain guide

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

9

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY, drive chain idler 15T

10шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 C-Z hex-hd mach

6шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 C-Z hex-hd mach

2шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

48шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

6шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

10

154210C91

BRACKET ASSY, frame support filler LH

1шт.

10

154211C91

BRACKET ASSY, frame support filler RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

11

586318R1

PINION

SPROCKET, stalk roll driven 13T

6шт.

12

575915R2

SPROCKET, stalk roll drive 25T

1шт.

13

939069R1

GUIDE, stalk roll drive chain

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

456161C1

BOARD, drive chain guide

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
