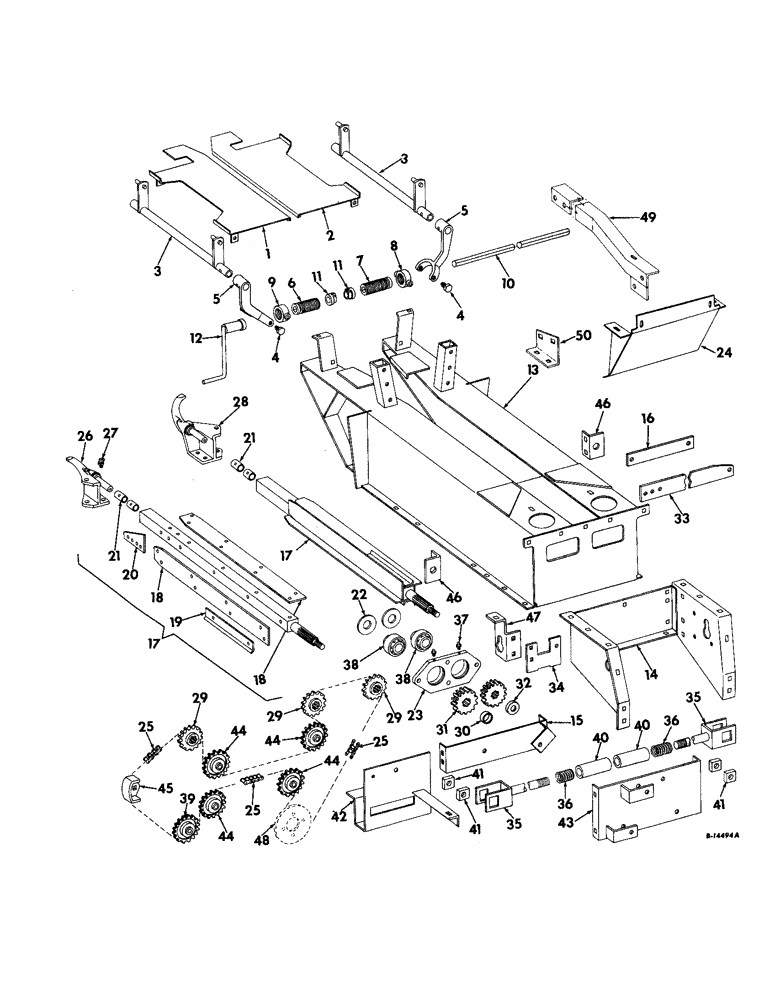

Запчасти Case IH 620N (J-11) - STALK ROLL FRAME, ROLLS AND DRIVE (58) - ATTACHMENTS/HEADERS

1

156710C91

SHIELD ASSY, stalk roll LH

6шт.

2

156711C91

SHIELD ASSY, stalk roll RH

6шт.

3

156716C91

ARM ASSY, stalk roll shield control

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

12шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

24шт.

4

589457R1

SCREW, adjusting nut retainer

24шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

5

156706C1

ARM, stalk roll shield adjusting lower

12шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

12шт.

6

156709C1

SCREW, stalk roll shield adjusting RH

6шт.

7

156708C1

SCREW, stalk roll shield adjusting LH

6шт.

8

935560R1

NUT, shield adjusting LH

6шт.

9

935561R1

NUT, shield adjusting RH

6шт.

10

163660C1

ROD, stalk roll shield adjusting

2шт.

11

M5895

COLLAR, shield adjusting shaft

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

2шт.

12

589725R91

CRANK ASSY, stalk roll shield adjusting

1шт.

517843R1

COTTER PIN

PIN, 3/16 qa cot

1шт.

13

156795C91

FRAME ASSY, stalk roll inner

4шт.

13

156805C91

FRAME ASSY, stalk roll outer LH

1шт.

13

156806C91

FRAME ASSY, stlak roll outer RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

42шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

42шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

42шт.

14

939055R92

BRACKET ASSY, stalk roll frame support

4шт.

14

939192R92

BRACKET ASSY, stalk roll support center

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

12шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

20шт.

120377

NUT,3/8" - 16, Gr 5

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

12шт.

15

154216C91

CHANNEL ASSY, stalk roll drive idler bracket outer LH

1шт.

15

154217C91

CHANNEL ASSY, stalk roll drive idler bracket outer RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

16

159880C1

BAR, stalk roll frame tie

5шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

10шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

17

156790C91

ROLL ASSY, left driver stalk

3шт.

17

156791C91

ROLL ASSY, right driver stalk

3шт.

17

156792C91

ROLL ASSY, left driven stalk

3шт.

17

156793C91

ROLL ASSY, right driven stalk

3шт.

20630R1

NUT

3/4 C-Z hex

12шт.

178139

WASHER, 1-3/16 C-Z med lock

12шт.

18

155130C1

SECTION, stalk roll intermesh

48шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2-20 x 7/8 C-Z hex-hd cap

144шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

144шт.

19

935627R2

LUG

stalk roll LH

12шт.

19

935628R2

LUG

stalk roll RH

12шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd cap

48шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

48шт.

20

654296R1

SEAL ASSY.

SECTION, stalk roll front

48шт.

134909

WASHER

RIVET, 5/16 x 2-1/4 F-HD solid

48шт.

21

589813R1

BUSHING

stalk roll front

24шт.

22

654297R1

WASHER

stalk roll shaft

12шт.

23

153748C11

HOUSING W/BRG, stalk roll, includes ref nos. 37 and 38

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

24шт.

271501

SOCKET

NUT, 7/16 C-Z hex

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

24

159922C91

SHIELD ASSY, stalk roll drive

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

25

CHAIN, stalk roll drive, order 207 links from 10-ft roll marked 1793D, one connecting link 1786D and one offset connecting link 1318D

2шт.

26

158779C91

SUPPORT ASSY, stalk roll LH

6шт.

120371

NUT,1/2"-20, G5

6шт.

NLS

NO LONGER SERVICED

SCREW, 1/2-20 x 3-3/4 C-Z hex-hd

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

27

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg lub

12шт.

28

158780C91

SUPPORT ASSY, stlak roll RH

6шт.

120371

NUT,1/2"-20, G5

6шт.

NLS

NO LONGER SERVICED

SCREW, 1/2-20 x 3-3/4 C-Z hex-hd cap

6шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

29

586318R1

PINION

SPROCKET, stalk roll driven 13T

6шт.

30

589696R1

BUSHING

SPACER, stalk roll driven sprocket

6шт.

31

580849R1

PINION

GEAR, stalk roll drive 20T

12шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469688R1

WASHER, 13/32 x 3/4 x 16 ga C-Z

2шт.

32

585964R1

BUSHING

WASHER, stalk roll gear

12шт.

33

156794C2

BAR, stalk roll frame brace

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

34

152980C1

STRIP, stalk roll frame support filler

8шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

16шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 C-Z hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

35

151656C91

YOKE ASSY, stalk roll frame drive chain tightener

2шт.

18549R1

NUT,7/8"-9, GB

7/8 ESNA stop

2шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

2шт.

36

544

CANVAS

SPRING, drive chain tightener rod

2шт.

37

16964R1

FITTING

1/4-28 90 deg lub

12шт.

38

156030C91

BEARING

ASSY, stalk roll rear relube ball

12шт.

39

629972R91

DRIVE SPROCKET,15T

SPROCKET W/BRG, drive chain tightener 15T

2шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

8шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

40

589856R1

SPACER, drive chain tightener rod

2шт.

41

156691C1

BAR

BLOCK, stalk roll drive chain tightener

4шт.

42

156683C91

BRACKET ASSY, stalk roll drive chain tightener LH

1шт.

42

156684C91

BRACKET ASSY, stalk roll drive chain tightener RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

6шт.

271501

SOCKET

NUT, 7/16 C-Z hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

43

156680C91

CHANNEL ASSY, stalk roll drive idler bracket inner LH

1шт.

43

156681C91

CHANNEL ASSY, stalk roll drive idler bracket inner RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

44

629972R91

DRIVE SPROCKET,15T

SPROCKET W/BRG, drive chain idler 15T

8шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 C-Z hex-hd mach

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

8шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

45

583619R1

BLOCK

drive chain tightener LH

1шт.

45

583620R1

BLOCK

drive chain tightener RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

156719C1

ANGLE, stalk roll shield control tube

12шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

47

156720C1

REINFORCEMENT, stalk roll shield adjusting screw LH

6шт.

47

156721C1

REINFORCEMENT, stalk roll shield adjusting screw RH

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

48

SPROCKET, stalk roll drive slip clutch 25T, refer to main drive unit for listing

2шт.

49

165643C91

ANGLE ASSY, stalk roll frame brace outer LH

1шт.

49

165644C91

ANGLE ASSY, stalk roll frame brace outer RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

50

654944R1

BRACKET, frame brace LH

1шт.

50

654945R1

BRACKET, frame brace RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.
