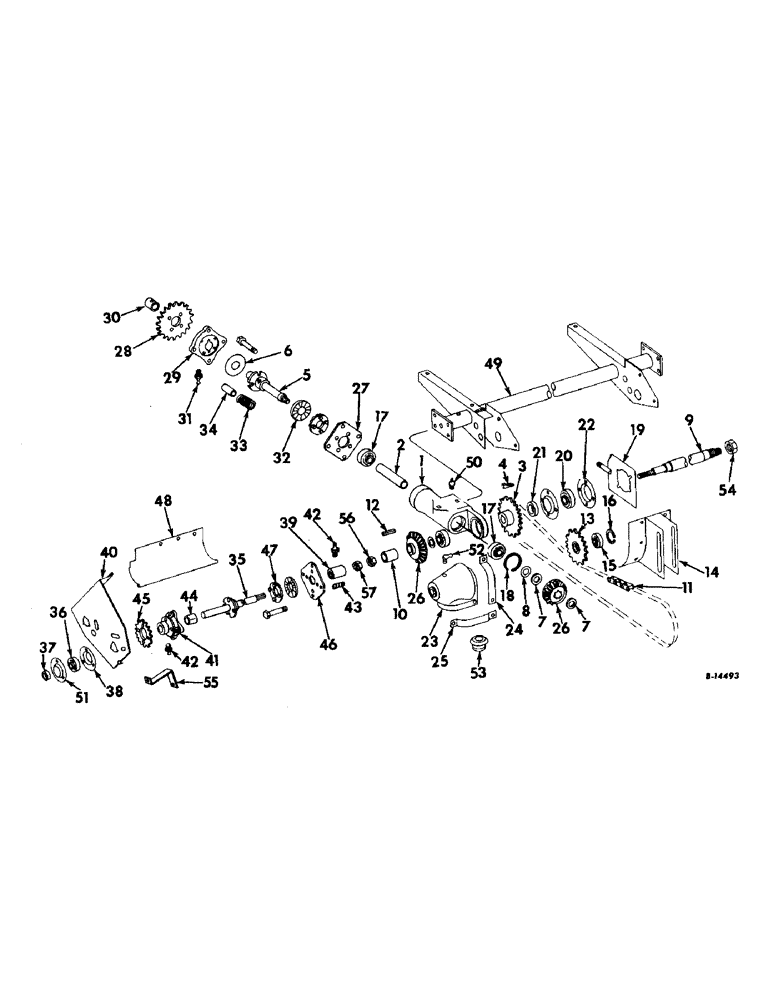

Запчасти Case IH 620N (J-09) - MAIN DRIVE (58) - ATTACHMENTS/HEADERS

1

155245C2

CASE, main drive

2шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4 C-Z sq-nk crg

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

8шт.

443804

SCRWE, 1/4-28 x 1/4 C-Z slt-ov-pt hdls set

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

156001C1

SPACER, stalk roll drive shaft

2шт.

3

589772R91

SPROCKET ASSY, main drive 21T

1шт.

4

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib

1шт.

5

589533R92

SHAFT ASSY, stalk roll drive

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 C-Z slt hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

131050

WASHER,1 1/4"

2шт.

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

21/32 x 1-1/2 x 3/16

2шт.

6

628611R1

WASHER, stalk roll drive slip clutch

2шт.

7

589782R1

THRUST WASHER

stalk roll drive bevel pinion

8шт.

8

589783R1

SHIM, stalk roll drive bevel gear

4шт.

9

155227C1

SHAFT, main drive center

1шт.

10

589536R1

SPACER, center main drive shaft

2шт.

11

CHAIN, main drive, use 133 links from 10-ft roll marked 1794D, 1 connecting link 1397D and 1 offset connecting link 1398D

1шт.

12

577147R1

KEY

5/16 x 1-3/16 sq parallel hardened

2шт.

13

589938R91

SPROCKET ASSY, main drive idler 17T

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

271823

BOLT

SCREW, 7/8 x 4 C-Z hex-hd cap

1шт.

131047

WASHER,7/8"

1шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga C-Z

10шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

3шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

3шт.

14

589540R91

SUPPORT ASSY, idler sprocket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

15

580095R91

BALL BEARING

BEARING ASSY, idler sprocket ball

1шт.

16

555602R1

RING

idler sprocket brg snap

1шт.

17

614617R91

BEARING ASSY, main drive gear case relube ball

6шт.

18

512889R1

RING

stalk roll drive brg snap

2шт.

19

589777R91

BRACKET ASSY, main drive shaft brg

1шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 C-Z slt hex

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

1/8" x 1-3/4"

1шт.

20

664175R91

BALL BEARING

BEARING ASSY, main drive inner ball

1шт.

21

455112R11

COLLAR

W/SET SCREW, lkg

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C-Z hex-soc-hd cup-pt set

1шт.

22

663562R1

FLANGE

main drive shaft brg

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

23

155244C3

COVER, main drive gear case

2шт.

24

155243C1

STRAP, gear case cover lower

4шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

631436R2

STRAP, gear case cover upper

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16 C-Z hex

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

165647C91

GEAR WHEEL

GEAR SET, stalk roll drive bevel

1шт.

27

629870R1

RETAINER

stalk roll drive slip clutch

2шт.

28

575915R2

SPROCKET, stalk roll drive 25T

2шт.

29

575787R21

HOLDER W/BUSHING, stalk roll drive slip clutch, include ref no.30

2шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z no. 3 plow

8шт.

587423R1

BOLT

1/2 x 4-1/4 dld hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z slt hex

8шт.

121224

SUPPORT

3/32" x 1"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

8шт.

30

575789R1

BUSHING

stalk roll drive slip clutch

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS str-lub

2шт.

32

B12170

RATCHET,Clutch Slip, 94.49mm

stalk roll drive slip clutch

4шт.

33

584007R1

SPRING

stalk roll drive slip clutch

8шт.

34

631581R1

SPACER

stalk roll drive slip clutch spring

8шт.

35

156666C91

SHAFT ASSY, main drive outer

2шт.

36

939475R91

BEARING

ASSY, main drive shaft outer ball

2шт.

37

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

2шт.

38

939461R1

FLANGE

gatherer drive sprocket brg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

39

589690R1

COUPLING

main drive outer shaft

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

22232R1

HEADED PIN,1/4" x 1 7/8"

PIN, 1/4 x 1-7/8 C-Z std-hd

2шт.

40

156671C91

BRACKET ASSY, gatherer drive LH

1шт.

40

156672C91

BRACKET ASSY, gatherer drive RH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

41

589471R91

HOLDER ASSY, gatherer slip clutch, includes ref no. 44

2шт.

587423R1

BOLT

1/2 x 4-1/4 hex-hd mach

8шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z slt hex

8шт.

121224

SUPPORT

3/32" x 1"

8шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

8шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str-lub

4шт.

43

311

SPRING

gatherer slip clutch

8шт.

44

574294R1

BUSHING

slip clutch ratchet

2шт.

45

587228R1

SPROCKET, gatherer drive 18T

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

46

629870R1

RETAINER

gatherer slip clutch

2шт.

47

B12170

RATCHET,Clutch Slip, 94.49mm

gatherer slip clutch

4шт.

48

156677C1

SHIELD, gatherer slip clutch LH

1шт.

48

156678C1

SHIELD, gatherer slip clutch RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

49

161091C91

PIPE ASSY, torque

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

4шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 C-Z hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

50

126131

FITTING

1/4-28 str lube

4шт.

51

939460R91

FLANGE

W/65 DEG FITTING, brg

2шт.

52

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

2шт.

52

126131

FITTING

1/4-28 str lub

2шт.

53

464197R1

PLUG

gear case cover

2шт.

54

589780R1

NUT, main drive shaft

4шт.

55

159974C1

SUPPORT, gatherer drive bracket

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

56

IH219779

NUT

1-1/2-12 hex jam

1шт.

57

172208C1

NUT, 1-1/2-12 hex lock

1шт.
