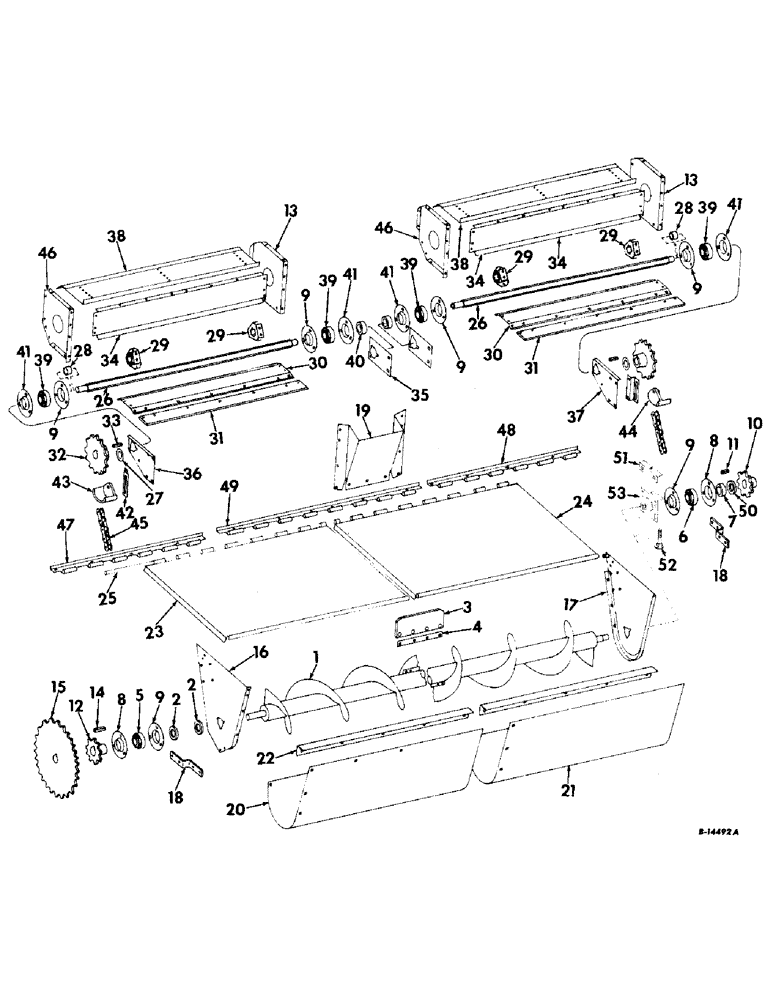

Запчасти Case IH 620N (J-06) - AUGER, BEATER AND DRIVE (58) - ATTACHMENTS/HEADERS

1

156624C91

AUGER ASSY

1шт.

2

632156R1

THRUST WASHER

auger shaft LH

8шт.

3

937171R1

BAT, auger

2шт.

4

937170R1

STRAP, auger bat retainer

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

10шт.

5

156011C91

BALL BEARING

BEARING ASSY, auger shaft LH relube ball

1шт.

6

156011C91

BALL BEARING

BEARING ASSY, auger shaft RH relube ball

1шт.

7

557995R11

COLLAR

W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 51/6 hex-soc-hd cup-pt set

1шт.

8

939460R91

FLANGE

W/65 DEG LUBE FITTING, brg

2шт.

9

939461R1

FLANGE

auger shaft bearing

6шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

18шт.

120377

NUT,3/8" - 16, Gr 5

18шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

18шт.

10

586359R1

SPROCKET, beater drive RH 8T

1шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd cap

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

11

587016R1

KEY, 1/4 x 3/4 sq parallel

1шт.

12

654967R1

SPROCKET, beater drive LH 8T

1шт.

13

156765C1

SECTION, beater side right

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

577147R1

KEY

5/16 x 1-3/16 sq-parallel

2шт.

15

935789R91

SPROCKET ASSY, auger driven 50T

1шт.

69442D

NUT

3/4 C-Z slt-hex jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

181696

1/2-20 x 1 C-Z hex-hd cap

1шт.

131050

WASHER,1 1/4"

LOCK, 1 1/4"

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 16 ga C-Z

1шт.

21585D

WASHER

17/32 x 1-3/4 x 3/16

1шт.

16

939020R92

END ASSY, auger trough LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

17

939021R92

END ASSY, auger trough RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

18

939025R1

STRAP, auger trough end support

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

19

161209C1

SHIELD, auger front center

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

156634C1

TROUGH, auger LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

120272

SCREW

5/16 x 1 C-Z slt-truss-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

6шт.

21

156635C1

TROUGH, auger RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

120272

SCREW

5/16 x 1 C-Z slt-truss-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

22

156633C1

ANGLE, auger door

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

23

156629C91

DOOR ASSY, auger LH

1шт.

24

156630C91

DOOR ASSY, auger RH

1шт.

25

582379R1

ROD, auger door hinge

1шт.

26

156890C1

SHAFT, beater

2шт.

120731

WASHER,1 1/8"

LOCK, 1 1/8"

2шт.

27

472323R1

WASHER

beater shaft

10шт.

28

151315C1

SPACER, beater shaft

4шт.

29

166390C1

SUPPORT, beater section

4шт.

30

156892C1

SECTION, beater drum

6шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

24шт.

31

156891C1

FLAP, beater

6шт.

120376

NUT,5/16"-18, G5

42шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd whiz lock

42шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int-tooth lock

42шт.

32

151013C1

SPROCKET, beater driven 13T

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 slt hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

33

577147R1

KEY

5/16 x 1-3/16 sq parallel

2шт.

34

156893C1

SHIELD, beater

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

35

151319C1

BRACKET, beater inner brg

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

21740R1

WASHER

17/32 x 1-1/2 x 16 ga C-Z

4шт.

36

151320C2

BRACKET, beater outer LH brg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

37

151321C2

BRACKET, beater outer RH brg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

38

156894C1

SHIELD, adjustable beater

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

12шт.

39

939475R91

BEARING

ASSY, beater shaft relube ball

4шт.

40

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

2шт.

41

939460R91

FLANGE

W/65 DEG FITTING, brg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

5/16 C-Z hex

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

42

632194R1

BRACKET, drive chain tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

43

583619R1

BLOCK

chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

583620R1

BLOCK

chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

45

CHAIN, beater drive, use 45 links from 10-ft roll marked 569089R91 and one connecting link 587372R91

2шт.

46

156764C1

SECTION, beater side left

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

47

156762C1

HINGE, auger door outer LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

4шт.

48

156763C1

HINGE, auger door outer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

4шт.

49

156761C2

HINGE, auger door center

1шт.

120376

NUT,5/16"-18, G5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

6шт.

142849

SCREW, 5/16 x 1-1/4 C-Z slt-truss-hd

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

4шт.

50

654283R1

THRUST WASHER

auger shaft RH

1шт.

51

166045C1

ANGLE, auger adjustment

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

52

166048C1

BOLT, auger adjustment

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

53

166046C1

BRACKET, auger bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.
