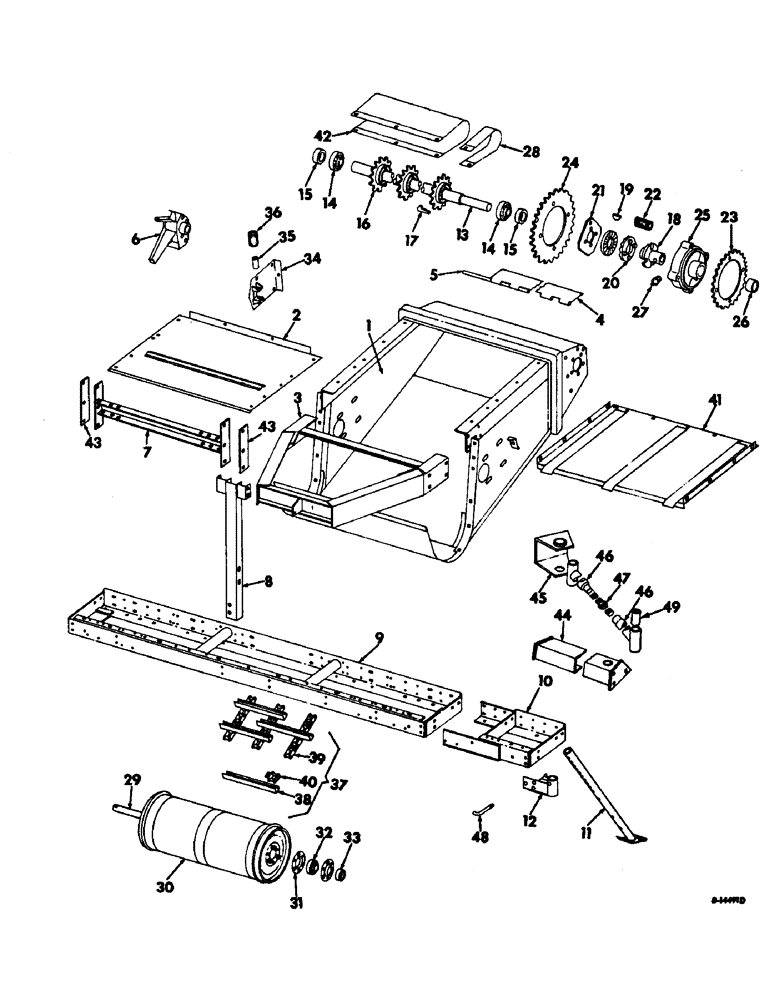

Запчасти Case IH 620N (J-03) - FEEDER FRAME, LIFT, STAND AND FEED CONVEYOR (58) - ATTACHMENTS/HEADERS

1

161007C92

SHIELD ASSY, feeder

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

4шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

6шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120272

SCREW

5/16 x 1 C-Z slt-truss-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

4шт.

2

938927R91

SECTION ASSY, feeder cover

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

4шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

6шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

3

156600C91

FRAME ASSY, feeder extension

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

4

589229R11

EXTENSION ASSY, feeder frame bottom

1шт.

5

589528R1

ROD, feeder frame bottom extension hinge

1шт.

6

938974R91

BRACKET ASSY, feeder frame brg LH

1шт.

6

938975R91

BRACKET ASSY, feeder frame brg RH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

236486

SCREW, 1/2 x 3 hex-hd cap type 4

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

152525C91

CHANNEL ASSY, feeder shaft shield

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 5/16 C-Z hex

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

159913C91

CHANNEL ASSY, feeder extension vertical

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

6шт.

271501

SOCKET

NUT, 7/16 C-Z hex -C-

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

9

938959R92

FRAME ASSY, main

1шт.

10

156604C91

EXTENSION ASSY, main frame LH

1шт.

10

156605C91

EXTENSION ASSY, main frame RH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

12шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

11

161277C91

STAND ASSY

2шт.

12

156611C91

HOLDER ASSY, stand LH

1шт.

12

156612C91

HOLDER ASSY, stand RH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

10шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

13

653861R1

SHAFT, feeder conveyor

1шт.

14

256557R91

BEARING

ASSY, feed conveyor shaft ball

2шт.

15

557113R11

COLLAR

W/SET SCREW LKG

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

2шт.

16

937243R1

SPROCKET, feed conveyor drive 11T

3шт.

17

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

3шт.

18

589379R91

HUB

HOLDER ASSY, feed conveyor drive slip clutch

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 C-Z std-hd

1шт.

19

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff 28

1шт.

20

B12170

RATCHET,Clutch Slip, 94.49mm

feed conveyor slip clutch

2шт.

21

589381R1

RETAINER, feed conveyor drive slip clutch

1шт.

19836R1

BOLT, 1/2 x 3-3/4 dld sq-nk crg

4шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z hex

4шт.

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

4шт.

178374

SPARE PART

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

4шт.

22

NLS

NO LONGER SERVICED

feed conveyor slip clutch

4шт.

23

589382R1

SPROCKET, main drive 29T

1шт.

24

935867R1

SPROCKET, feeder driven 38T

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

102382

WASHER

3/8 C-Z med lock

4шт.

25

589384R11

HUB ASSY, feeder driven, includes ref no. 26

1шт.

26

18519K

BUSHING

feeder driven sprocket hub

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NS-34 str lub

1шт.

28

152520C1

SHIELD, feeder shaft end

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

938990R1

SHAFT, feeder conveyor drum

1шт.

30

589363R92

DRUM ASSY, feeder conveyor

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

31

629958R1

FLANGE

conveyor drum brg

2шт.

32

564991R91

BEARING

ASSY, conveyor drum ball

2шт.

33

658006R11

COLLAR

W/SET SCREW LKG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

34

938977R91

BRACKET ASSY, feed conveyor drum support LH

1шт.

34

938978R91

BRACKET ASSY, feed conveyor drum support RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

6шт.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

SCREW, 1/2 x 6-1/2 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

8шт.

35

H39274

SPACER,1/2" Pipe x 1 1/2"

conveyor drum adjusting bolt

2шт.

36

PO144

SPRING

drum adjusting bolt

2шт.

37

938985R1

CONVEYOR ASSY, feeder chain

1шт.

38

589370R1

SLAT, feeder conveyor chain

32шт.

104249

RIVET, 1/4 x 1/2 small F-HD solid FH, 1/4" x 1/2"

128шт.

39

587371R92

NO LONGER SERVICED

LINK, connecting

1шт.

40

589656R91

LINK

ASSY, conveyor chain attaching

1шт.

41

152529C91

SHIELD ASSY, feeder conveyor chain

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

42

152528C1

SHIELD, feeder shaft center

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

43

152522C1

STRAP, feeder shaft shield channel

2шт.

44

165334C91

SUPPORT ASSY, auger end LH

1шт.

44

165335C91

SUPPORT ASSY, auger end RH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

8шт.

23301R1

LOCK PIN,5/16" x 1 1/4", Slotted

Pin, 5/16" x 1 1/4", Slotted

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

45

163378C91

BRACKET ASSY, auger end support

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

23301R1

LOCK PIN,5/16" x 1 1/4", Slotted

Pin, 5/16" x 1 1/4", Slotted

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

46

163386C91

PIPE ASSY, auger end support LH

2шт.

46

163387C91

PIPE ASSY, auger end support RH

2шт.

47

589748R11

SCREW ASSY, auger end support pipe adj

2шт.

426899

NUT,Jam, 1"-8, G5

1 C-Z hex jam

2шт.

48

589584R1

PIN

support stand

2шт.

517843R1

COTTER PIN

PIN, 3/16 qa

2шт.

49

565455R1

PIN, auger support pipe

4шт.
