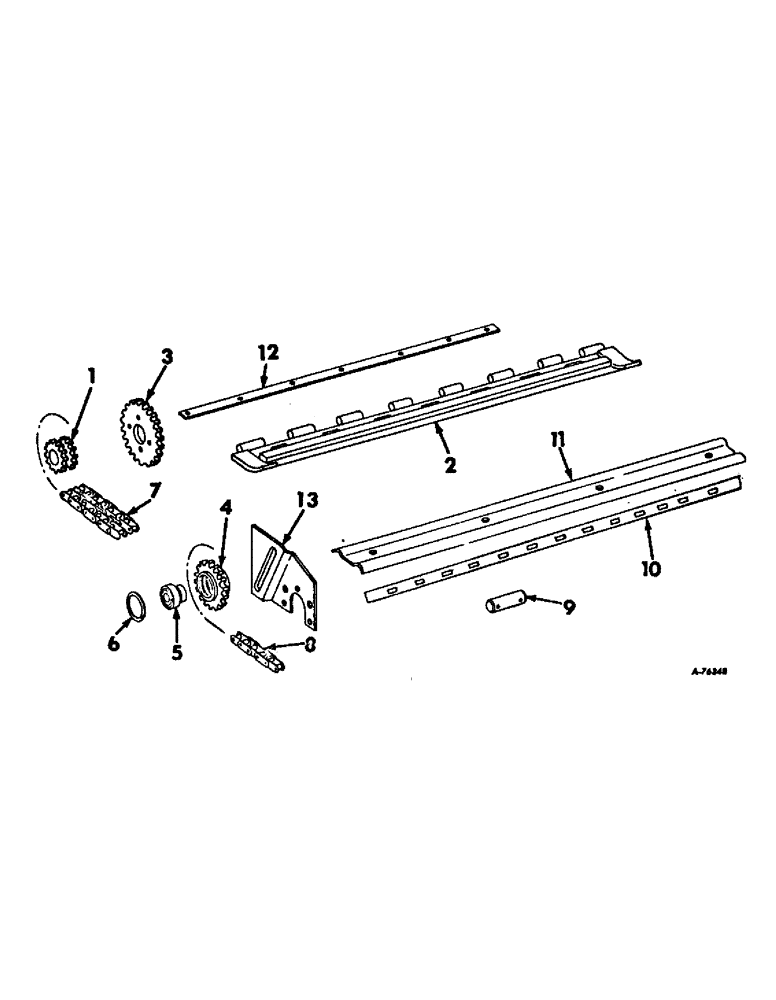

Запчасти Case IH 620N (J-24) - COMPLETING PARTS (58) - ATTACHMENTS/HEADERS

1

569202R2

DRIVE SPROCKET

SPROCKET, cylinder drive 43T

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

cylinder drive sprocket

1шт.

2

589523R91

EXTENSION ASSY, concave front

1шт.

3

589362R1

SPROCKET, feeder drive 23T

1шт.

120369

NUT,3/8"-24, G5

4шт.

181643

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 C-Z hex-hd cap

4шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

4

589538R91

SPROCKET ASSY.

SPROCKET ASSY, feeder drive idler

1шт.

5

580095R91

BALL BEARING

BEARING ASSY, feeder idler sprocket ball

1шт.

6

555602R1

RING

idler sprocket brg snap

1шт.

7

CHAIN, cylinder drive extension, order 7 links from 10-ft roll marked 1355D, 1 offset link 570988R91 and 3 connecting links 369206R91

1шт.

8

CHAIN, feeder drive, order 99 links from 10-ft roll marked 1794D, one offset link 1398D and one connecting link 1397D

1шт.

9

564986R1

PIN, cylinder lift extension

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

4шт.

10

153182C1

STRAP, grate finger tie

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

13шт.

11

633622R1

BAR, cylinder filler

8шт.

120369

NUT,3/8"-24, G5

32шт.

NLS

NO LONGER SERVICED

SCREW, 3/8-24 x 1 C-Z hex-hd cap

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

12

634640R1

RETAINER, concave front extension hinge

1шт.

181696

1/2-20 x 1 hex-hd cap

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

13

634631R1

SUPPORT, feeder drive tightener sprocket

1шт.

22861R1

BOLT, 7/8 x 3 C-Z sq-nk crg

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2 x 1 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

131047

WASHER,7/8"

7/8"

1шт.

21041R1

WASHER

17/32 x 2 x 16 ga C-Z

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

4шт.

21747R1

WASHER,1.22" ID x 2" OD x 0.07" Thk

1-7/32 x 2 x 16 ga C-Z

3шт.
