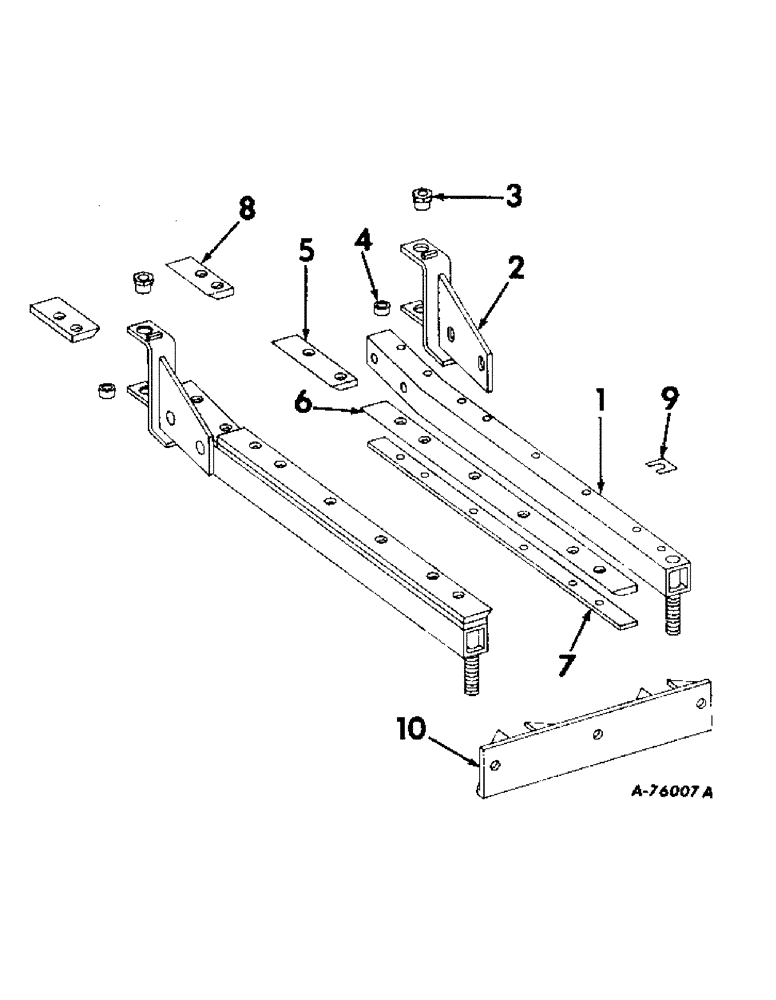

Запчасти Case IH 620N (J-23) - WEED KNIFE ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

631034R91

PIPE ASSY, weed knife retainer LH

6шт.

1

631035R91

PIPE ASSY, weed knife retainer RH

6шт.

632600R1

NUT, 3/4 nylock hex

20шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

20шт.

2

631025R91

BRACKET ASSY, weed knife front LH

6шт.

2

631026R91

BRACKET ASSY, weed knife front RH

6шт.

18699R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/2", Gr 2

BOLT, 7/16 x 2-1/2 C-Z sq-nk crg

24шт.

271501

SOCKET

NUT, 7/16 C-Z hex

18шт.

189347

BOLT,Hex, 1/2" - 20 x 4 1/2"

SCREW, 1/2-20 x 4-1/2 C-Z hex-hd cap

12шт.

184366

SUPPORT

SCREW, 7/16 x 1-1/4 C-Z sq-hd cup-pt set

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

893862R1

WASHER

15/32 x 1-1/2 x 11 ga

24шт.

3

589962R1

NUT

weed knife front bracket

12шт.

4

576271R1

SPACER

weed knife front bracket inner

12шт.

5

589966R1

KNIFE, center LH

12шт.

5

589967R1

KNIFE, center RH

12шт.

19025R1

SCREW,#3, 3/8" - 16 x 2 1/2", Gr 2

BOLT, 3/8 x 2-1/2 C-Z no. 3 plow

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

6

589968R1

KNIFE, rear weed

12шт.

19026R1

CARRIAGE BOLT,#3, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8 x 2-3/4 C-Z no. 3 plow

72шт.

120377

NUT,3/8" - 16, Gr 5

72шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

72шт.

7

935650R1

STRAP, rear weed knife

12шт.

8

589698R1

KNIFE, front LH weed

6шт.

8

589699R1

KNIFE ASSY

KNIFE, front RH weed

6шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 C-Z no. 3 plow

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

9

589713R1

SHIM

WASHER, weed knife

240шт.

10

631031R91

ANGLE ASSY, weed knife pivot

6шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

18шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

18шт.

120384

WASHER,1/2"

LOCK, 1/2"

18шт.
