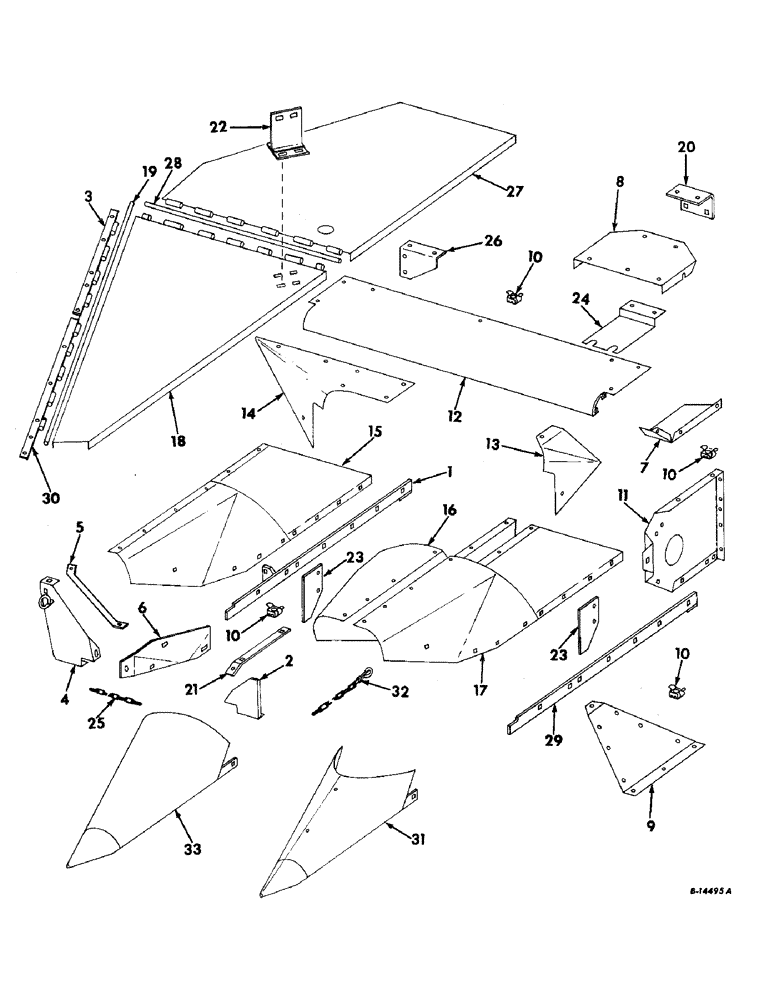

Запчасти Case IH 620N (J-19) - GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS

1

632216R91

SUPPORT ASSY, gatherer shield LH

1шт.

1

632217R91

SUPPORT ASSY, gatherer shield RH

1шт.

18515R1

BOLT, 3/8 x 2-1/2 C-Z sq-nk crg

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

165367C1

SUPPORT, inner gatherer shield front

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

156752C1

HINGE, outer gatherer shield rear LH

1шт.

3

156753C1

HINGE, outer gatherer shield rear RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

12шт.

4

156748C91

SECTION ASSY, outer gatherer shield LH

1шт.

4

156749C91

SECTION ASSY, outer gatherer shield RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

5

161063C1

BRACE, outer gatherer shield support LH

1шт.

5

161064C1

BRACE, outer gatherer shield support RH

1шт.

120377

NUT,3/8" - 16, Gr 5

BOLT, 3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

165368C1

REINFORCEMENT, divider hinge LH

6шт.

6

165369C1

REINFORCEMENT, divider hinge RH

6шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

12шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

7

156766C1

BOTTOM, beater outer LH

2шт.

7

156767C1

BOTTOM, beater outer RH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

8шт.

8

156772C1

BOTTOM, beater

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

20шт.

9

161264C1

EXTENSION, beater bottom

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

28шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

28шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

12шт.

10

459063R1

SPRING NUT

beater bottom extension

32шт.

11

156764C1

SUPPORT, beater side LH

2шт.

11

156765C1

SUPPORT, beater side RH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

8шт.

12

156759C91

SHIELD ASSY, cover

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

8шт.

13

156773C1

SHIELD, beater cover inner extension LH

1шт.

13

156774C1

SHIELD, beater cover inner extension RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

6шт.

619855R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

14

156775C1

SHIELD, beater cover outer extension LH

1шт.

14

156776C1

SHIELD, beater cover outer extension RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

12шт.

15

165377C91

SHIELD ASSY, outer gatherer LH

1шт.

15

165378C91

SHIELD ASSY, outer gatherer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

4шт.

16

165370C91

SHIELD ASSY, inner gatherer LH

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

30шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

30шт.

17

165371C91

SHIELD ASSY, inner gatherer RH

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

30шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

30шт.

18

156754C91

SHIELD ASSY, outer LH

1шт.

18

156755C91

SHIELD ASSY, outer RH

1шт.

19

161055C1

ROD, outer shield hinge

2шт.

20

156768C91

SUPPORT ASSY, beater bottom

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

21

166376C1

BRACE, center divider adjusting chain

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

10шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

10шт.

22

161051C92

SUPPORT ASSY, outer shield

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

23

161065C1

SEAL

SEAL, ear corn saver

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd whiz lock

24шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

24шт.

24

161066C1

EXTENSION, beater cover inner rear

1шт.

25

589522R91

CHAIN ASSY, outer divider adjusting

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

26

165352C1

SUPPORT, outer shield LH

1шт.

26

165353C1

SUPPORT, outer shield RH

1шт.

27

161057C91

SHIELD ASSY, outer rear LH

1шт.

27

161058C91

SHIELD ASSY, outer rear RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

28

588209R1

ROD, outer rear shield hinge

2шт.

29

161073C91

SUPPORT ASSY, inner gatherer shield LH

5шт.

29

161074C91

SUPPORT ASSY, inner gatherer shield RH

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

10шт.

30

161117C1

HINGE, outer shield front LH

1шт.

30

161118C1

HINGE, outer shield front RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

10шт.

31

165383C91

DIVIDER ASSY, center

5шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-nk crg

10шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 znp ESNA stop

2шт.

32

589509R91

CHAIN ASSY, center divider adjusting

5шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

33

165386C91

DIVIDER ASSY, outer LH

1шт.

33

165387C91

DIVIDER ASSY, outer RH

1шт.

20582R1

BOLT, 1/2 x 6-1/2 C-Z sq-nk crg

2шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 znp ESNA stop

2шт.
