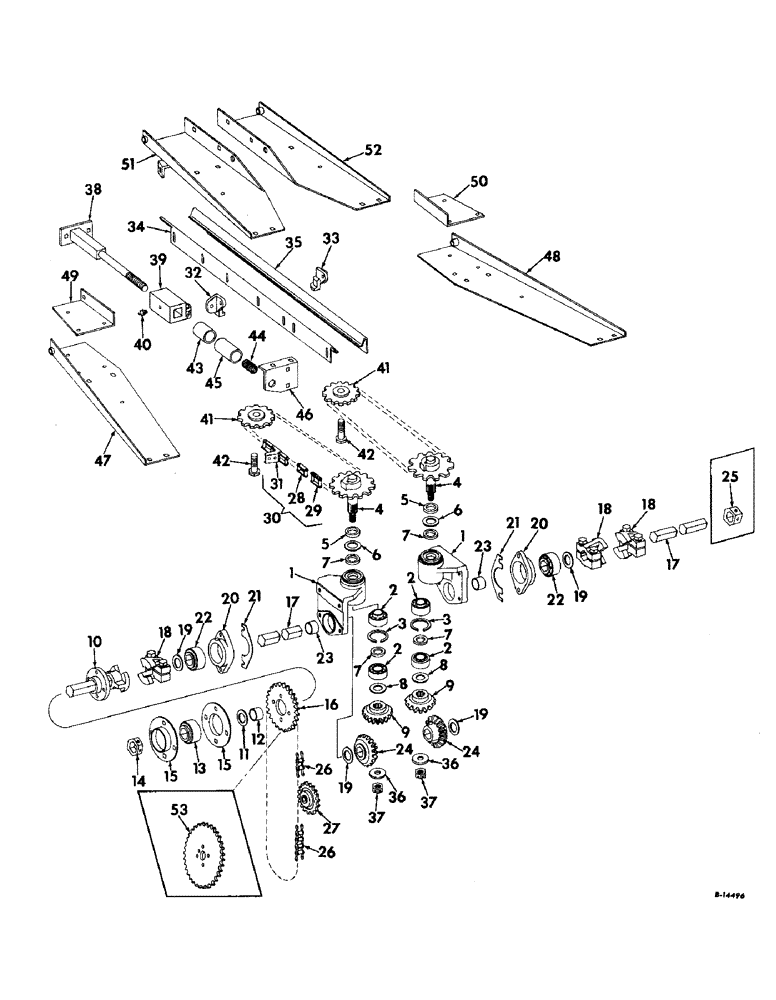

Запчасти Case IH 620N (J-16) - GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

1

156823C1

HOUSING, gatherer drive brg

12шт.

180143

SCREW,Hex, 7/16" - 14 x 3/4"

7/16 x 3/4 C-Z hex-hd cap

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

2

618210R91

BEARING

ASSY, gatherer drive ball

24шт.

3

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , gatherer drive housing brg 2.44", Int, #244

12шт.

4

166144C91

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive 8T, regular

12шт.

5

156827C1

WASHER

gatherer driven shaft cup

12шт.

6

156828C1

WASHER

gatherer driven shaft

12шт.

7

156829C1

WASHER

gatherer drive brg

24шт.

8

156830C1

WASHER

gatherer driven shaft

36шт.

9

156831C1

GEAR

gatherer driven bevel 18T

12шт.

10

156265C91

SHAFT ASSY, gatherer drive outer

2шт.

11

156834C1

WASHER, gatherer drive outer shaft

2шт.

12

156835C1

SPACER, gatherer drive outer shaft

2шт.

13

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, gatherer drive shaft outer ball

2шт.

14

156839C1

COLLAR, gatherer drive shaft outer ball

2шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 C-Z hex soc-hd cup-pt

4шт.

15

617863R1

FLANGED BEARING

outer gatherer drive shaft brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

16

156269C1

SPROCKET, gatherer drive 24T

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

17

156832C1

ROD, horizontal gatherer drive shaft

6шт.

18

159809C91

CLAMP ASSY, gatherer drive coupling

10шт.

180178

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2 x 1-5/8 C-Z hex-hd type 4

20шт.

180447

WASHER

1/2 HV int-tooth lock

20шт.

19

156834C1

WASHER, gatherer drive shaft

22шт.

20

156836C1

HOUSING, gatherer drv brg

12шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

21

156837C1

WASHER, gatherer drive bevel gear

24шт.

22

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, gatherer drive shaft ball

12шт.

23

156835C1

SPACER, gatherer horizontal drive shaft

12шт.

24

156833C1

GEAR, gatherer drive bevel

12шт.

25

156839C1

COLLAR, gatherer horizontal shaft

2шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 C-Z hex-soc-hd cup pt set

4шт.

26

CHAIN, gatherer drive LH, order 81 links from 10-ft roll marked 1793D, one connecting link 1786D and one offset connecting link 1318D

1шт.

26

CHAIN, gatherer drive RH, order 65 links from 10-ft roll marked 1793D, one connecting link 1786D

1шт.

27

582389R91

DRIVE SPROCKET

SPROCKET ASSY, gatherer drive idler 15T

2шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 C-Z sq-nk crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

8шт.

Q1595

WASHER, 21/32 sq x 1-3/4 x 12 ga

4шт.

28

450423R91

LINK, gatherer roller chain

1шт.

29

587371R92

NO LONGER SERVICED

LINK, gatherer roller connecting

1шт.

30

654164R91

CHAIN (AG)

CONVEYOR ASSY, gatherer

12шт.

31

935619R91

GATHERING CHAIN

CHAIN, gatherer section roller

1шт.

32

937173R1

GUIDE, gatherer chain LH

6шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

33

937174R1

GUIDE, gatherer chain RH

6шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

34

589922R3

GUIDE, gatherer chain holddown LH

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

42шт.

120376

NUT,5/16"-18, G5

42шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

619855R1

WASHER

11/32 x 34 x 16 ga C-Z

6шт.

35

589923R3

GUIDE, gatherer chain holddown RH

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

42шт.

120376

NUT,5/16"-18, G5

42шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

6шт.

36

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

12шт.

37

161386C41

NUT, 5/8-18 C-Z slt-hex jam

12шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

12шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

12шт.

38

632172R91

SHAFT ASSY, gatherer carrier

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

18549R1

NUT,7/8"-9, GB

7/8 ESNA stop

12шт.

426898

NUT,Jam, 7/8"-9, G5

7/8 C-Z hex jam

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

NLS

NO LONGER SERVICED

7/8"

12шт.

615196R1

WASHER

29/32 x 1-3/4 x 16 ga

24шт.

39

654332R2

CARRIER, gatherer sprocket

12шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

12шт.

41

155915C91

DRIVE SPROCKET

SPROCKET ASSY, gatherer idler 8T

12шт.

42

586116R1

BOLT,Hex, 3/4" - 10 x 2 1/2"

gatherer idler sprocket

12шт.

138561

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 C-Z int-tooth lock

12шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

36шт.

43

632189R1

SPACER, gatherer carrier shaft

12шт.

44

544

CANVAS

SPRING, gatherer carrier shaft

12шт.

45

589856R1

SPACER, gatherer carrier shaft spring

12шт.

46

632185R1

SUPPORT, gatherer carrier shaft LH

6шт.

46

632186R1

SUPPORT, gatherer carrier shaft RH

6шт.

18515R1

BOLT, 3/8 x 2-1/2 C-Z sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

47

159367C11

SECTION ASSY, gatherer support outer

1шт.

18505R1

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

48

159368C11

SECTION ASSY, gatherer support outer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

49

632180R1

BRACE, divider outer LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

50

632181R1

BRACE, divider outer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

51

156817C91

SUPPORT ASSY, gatherer inner LH

5шт.

52

156818C91

SUPPORT ASSY, gatherer inner RH

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

53

161069C1

SPROCKET, gatherer chain 28T, slow speed of 3.44 mph

2шт.

53

161070C1

SPROCKET, gatherer chain 32T, slow speed of 3.0 mph

2шт.
