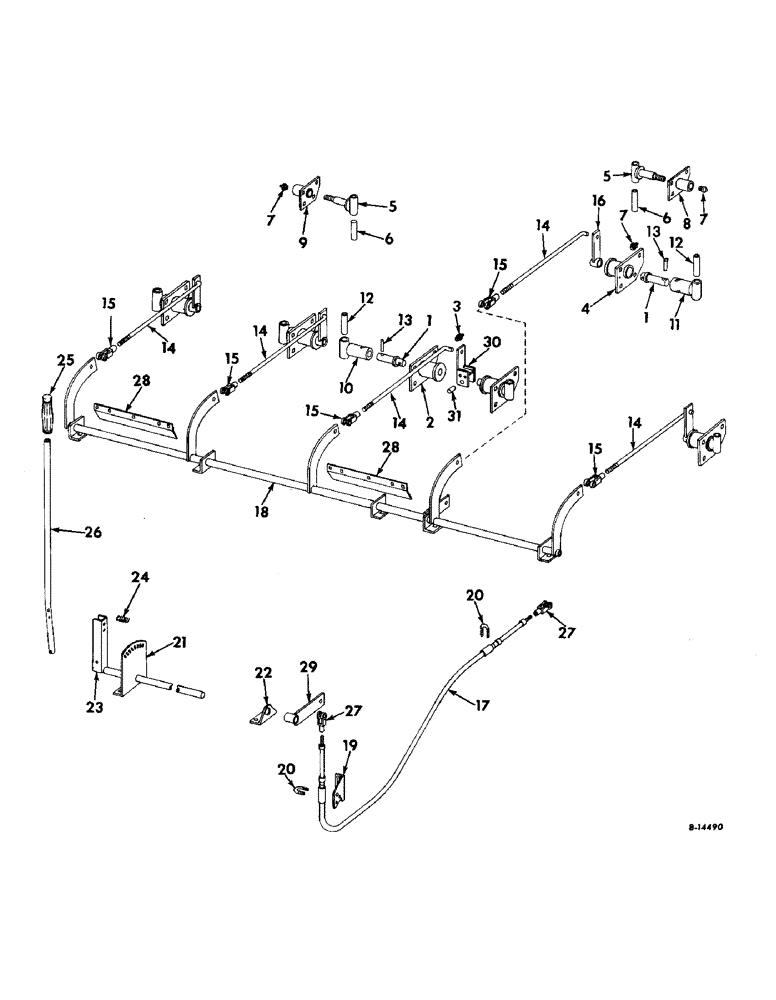

Запчасти Case IH 620N (J-14) - STALK ROLL CONTROL (58) - ATTACHMENTS/HEADERS

1

156693R91

PIN ASSY, stalk roll control cam

6шт.

2

156698C91

HOUSING ASSY, stalk roll cam LH

3шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z nut

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 67-1/2 deg angle lub

6шт.

4

156699C91

HOUSING ASSY, stalk roll cam RH

3шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

271501

SOCKET

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

5

587511R1

ANCHOR, stalk roll support

6шт.

17296R1

LOCK NUT,3/4"-16

NUT, 3/4-16 ESNA lock

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga C-Z

48шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

6шт.

6

158783C1

BUSHING

stalk roll support anchor

6шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITITNG, 1/8-27 PTF 90 deg lub

6шт.

8

589692R91

HUB ASSY, stalk roll support RH

3шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

9

589691R91

HUB ASSY, stalk roll support LH

3шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

271501

SOCKET

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

10

156701C1

CAM, stalk roll adjustment LH

3шт.

11

156702C1

CAM, stalk roll adjustment RH

3шт.

12

158783C1

BUSHING

stalk roll adjustment cam

6шт.

13

584453R1

PIN

3/8 x 1-5/16 chamfered str

6шт.

14

617803R1

ROD, stalk roll control

5шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/4-20 C-Z hex jam

5шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

5шт.

15

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

5шт.

137875

PIN, 1/8 x 1 C-Z cot

5шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

5шт.

16

158777C91

ARM ASSY, stalk roll control cam

4шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

4шт.

17

589700R91

CABLE ASSY, stalk roll control

1шт.

120369

NUT,3/8"-24, G5

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

2шт.

18

156703C91

PIPE ASSY, stalk roll control torsion

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

19

589356R1

BRACKET, stalk roll control cable

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

33175A

BOLT, stalk roll control cable

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

589704R1

SECTION, stalk roll control

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

589705R1

BRACKET, stalk roll torque pipe

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

161037C91

PIPE ASSY, stalk roll torque

1шт.

18786R1

BOLT,Hex, 3/8"-16 x 3 1/2", G2

3/8 x 3-1/2 C-Z hex-hd mach

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Esna stop 3/8"-16, GB

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

3шт.

24

C33464

SPRING, stalk roll control lever

1шт.

25

568043R1

GRIP, stalk roll control lever

1шт.

26

589707R1

PIPE, stalk roll control

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

27

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 rod end

2шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

28

589792R1

SHIELD, stalk roll control torsion

4шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

29

161034C91

ARM ASSY, stalk roll control

1шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

30

156695C91

ARM ASSY, stalk roll control cam

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

31

665434R1

SPACER, stalk roll control

1шт.
