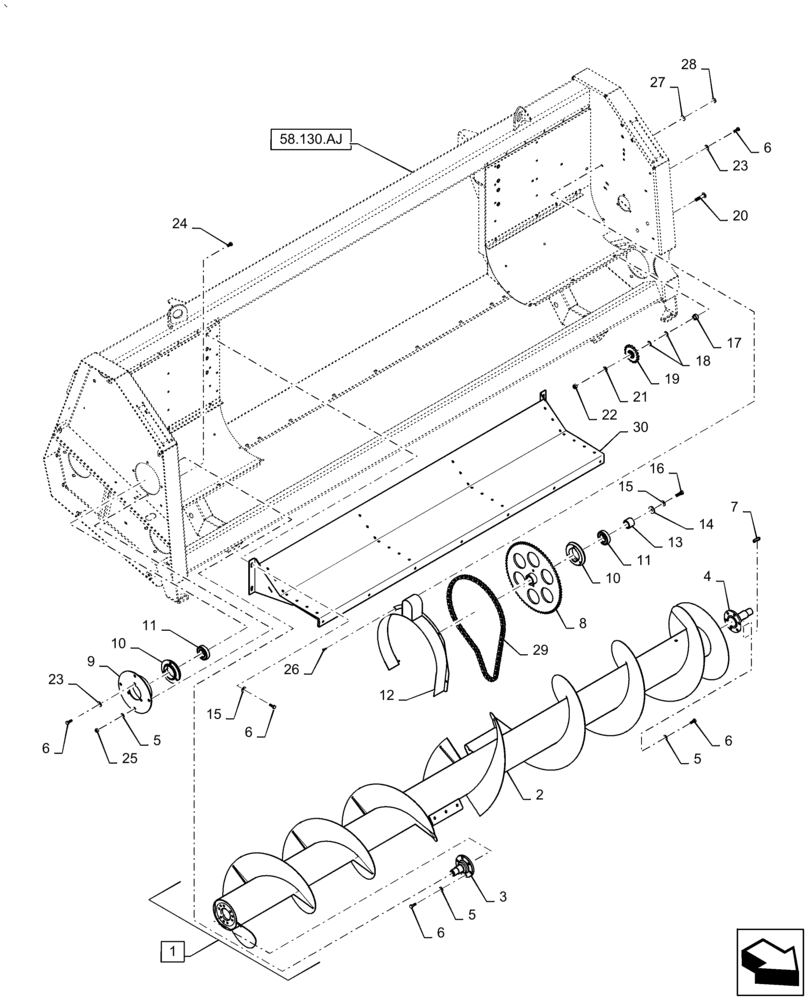

Запчасти Case IH 5506-65 (58.218.AG[01]) - AUGER ASSY,5506-65 (58) - ATTACHMENTS/HEADERS

1

47517369

Assy, 6RR65, Incl 2 - 6

AUGER

1шт.

2

47517367

Weld Assy, 6RR65

AUGER

1шт.

3

322529550

SHAFT

Pivot

1шт.

4

322529650

SHAFT

Pivot

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

6

BER43139

BOLT

Bolt

22шт.

7

354775

KEY,10mm x 8mm x 40mm

Square

1шт.

8

84976024

DRIVEN SPROCKET

Weld Assy

1шт.

9

84976223

FLANGE

1шт.

10

321140350

FLANGE

Housing, Bearing

2шт.

11

340411238

BALL BEARING,35mm ID x 72mm OD x 17mm W

Sphered

2шт.

12

84976677

SHIELD

Welded

1шт.

13

322530150

SPACER

1шт.

14

355511250

WASHER

1шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

16

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

17

87526087

BUSHING

1шт.

18

87526090

SHIM,25mm ID x 165mm OD x 0.5mm Thk

2шт.

19

84437219

DRIVEN SPROCKET,17T

1шт.

20

87337888

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

21

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

22

100038

NUT,M12 x 1.75, Cl 8

Privilege Torque

1шт.

23

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Helical Spring Lock

6шт.

24

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

25

100016

NUT,M10 x 1.5, Cl 8

4шт.

26

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

28

9706755

NUT,M6, Cl 8

4шт.

29

47644179

CHAIN

1шт.

30

47711165

Weld Assy, Auger Hood

SHIELD

1шт.
