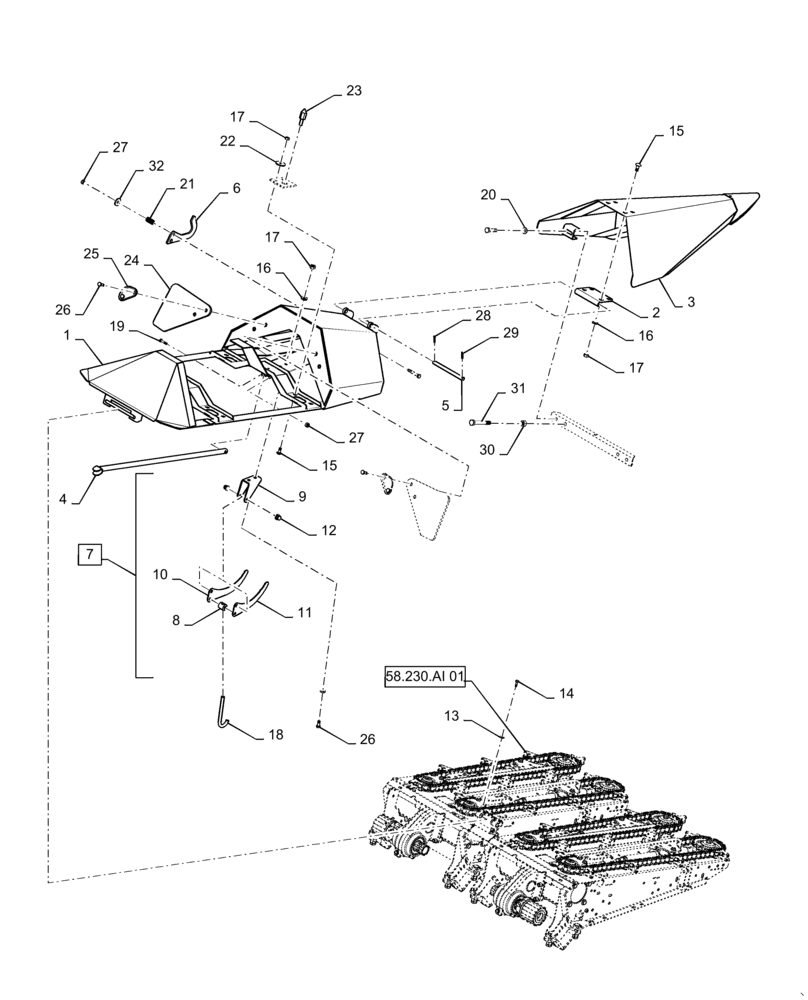

Запчасти Case IH 5506-65 (58.208.AA[05]) - HOOD ASSY, OUTER, CENTER (58) - ATTACHMENTS/HEADERS

1

47618814

Weld Assy, 65/70CM

SHIELD

1шт.

2

47623842

Hinge

SERVICE KIT

1шт.

3

47618818

Weld Assy, 65/70CM

DIVIDER

1шт.

4

84976371

ROD

Support Weld Assy

1шт.

5

47623843

PIN

1шт.

6

84976373

HOOK

Profile

1шт.

7

322449750

HOOK

Lever Assy, Incl 8 - 12

1шт.

8

322449751

Rod Threaded

KIT

1шт.

9

NSS

NOT SOLD SEPARAT

Lever, Incl in 7

1шт.

10

312117261

Arm

KIT

1шт.

11

312117262

Arm

KIT

1шт.

12

NSS

NOT SOLD SEPARAT

RIVET, Incl in 7

2шт.

13

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

14

322552550

SCREW

Bushing

2шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

12шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

17

9706690

NUT,M8 x 1.25, Cl 8

14шт.

18

322422950

TIE-ROD

Threaded

1шт.

19

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

21

350356327

SPRING

1шт.

22

12646205

WASHER,M8 x 35 x 3

8шт.

23

322631750

DOWEL,M10

Pin

2шт.

24

47629416

Retainer

SUPPORT

2шт.

25

87520000

COVER PLATE

2шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

27

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

28

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

29

130043

LOCK PIN,M4 x 26, Slotted

Spring

1шт.

30

9706685

NUT,M12 x 1.75, Cl 8

2шт.

31

15216421

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

2шт.

32

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

1шт.
