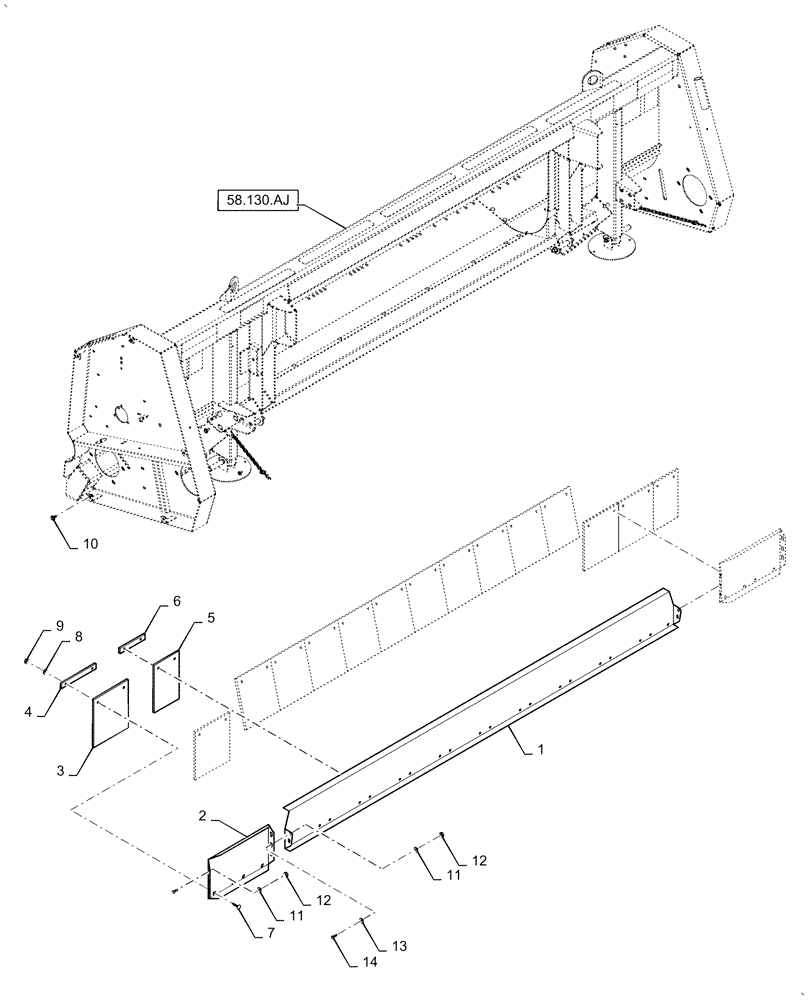

Запчасти Case IH 5506-65 (58.130.AD[02]) - FRAME, APRON, 5506-65 (58) - ATTACHMENTS/HEADERS

1

47532385

Plate Center, 5R/6R-65

SERVICE KIT

1шт.

2

47532371

Plate, 6R65

SERVICE KIT

2шт.

3

84977584

CANVAS

9шт.

4

84977660

FIXING PLATE

Mounting

9шт.

5

47411833

CANVAS

Poly Outer, 8RR-36/38

5шт.

6

47411834

MOUNTING PLATE

5шт.

7

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

28шт.

8

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

28шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

28шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

12

9706690

NUT,M8 x 1.25, Cl 8

8шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

14

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.
