1
322653550
COVER PLATE
4шт.
2
322632550
BUSHING
2шт.
3
300019980
SUPPORT
Housing, Bearing
6шт.
4
340411240
SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W
Ball
6шт.
5
322632450
DRIVEN SPROCKET
Weld Assy
4шт.
6
370007
SNAP RING,M45, Ext
4шт.
7
210043
BALL BEARING,30mm ID x 62mm OD x 16mm W
2шт.
8
300114232
DRIVEN SPROCKET
2шт.
9
370012
RING,M62, Internal
Circlip
2шт.
10
47517385
Drive, Row Unit, 6RR65
SHAFT
2шт.
11
86592703
WASHER,21mm ID x 50mm OD x 6mm Thk
2шт.
12
15989124
SCREW,M20 x 1.5 x 100mm
2шт.
13
322640650
WASHER
2шт.
14
12164311
NUT,Hex, M20 x 1.5
2шт.
15
412123
LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk
18шт.
16
15540221
BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd
12шт.
17
86633356
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
24шт.
18
86625253
WASHER,11mm ID x 24mm OD x 2mm Thk
20шт.
19
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
16шт.
20
120071
BOLT,Hex, M10 x 65, 8.8
8шт.
21
100037
LOCK NUT,M10 x 1.5, Cl 8
8шт.
22
100016
NUT,M10 x 1.5, Cl 8
20шт.
23
84976827
CHAIN,60-2, 90 Links x 19.05mm = 1714.5mm
2шт.
24
322525550
SLEEVE
Bushing
1шт.
25
84972763
CLUTCH
Safety, Incl 26 - 35
1шт.
25
84972763R
REMAN-CLUTCH ASSY
Safety
1шт.
25
84972763C
CORE-CLUTCH ASSEMBLY
Return Number
1шт.
26
86634290
SEALING RING,58.5mm ID x 84mm OD x 6mm Thk
1шт.
27
300633
SNAP RING,M80, Internal
1шт.
28
418509
RING
Pressure Disc
1шт.
29
84977724
HUB
1шт.
30
275246
CAM
16шт.
31
386510
SPRING,Compression, 13mm OD X 13.2mm L
16шт.
32
279346
SPRING
Inner
7шт.
33
84977723
BOX
Housing, Incl 34
1шт.
34
300919
LUBE NIPPLE
1шт.
35
84977730
LUBRICANT
Bearing, Ball
1шт.
36
84977051
HALF-SHELL
Clamp
2шт.
37
80681
LOCK WASHER,5/16"
Lock
2шт.
38
86531614
HEX SOC SCREW,M8 x 35mm, Cl 12.9
2шт.
39
87536190
CHAIN,60-2, 2 Links x 19.05mm = 38.1mm
2шт.

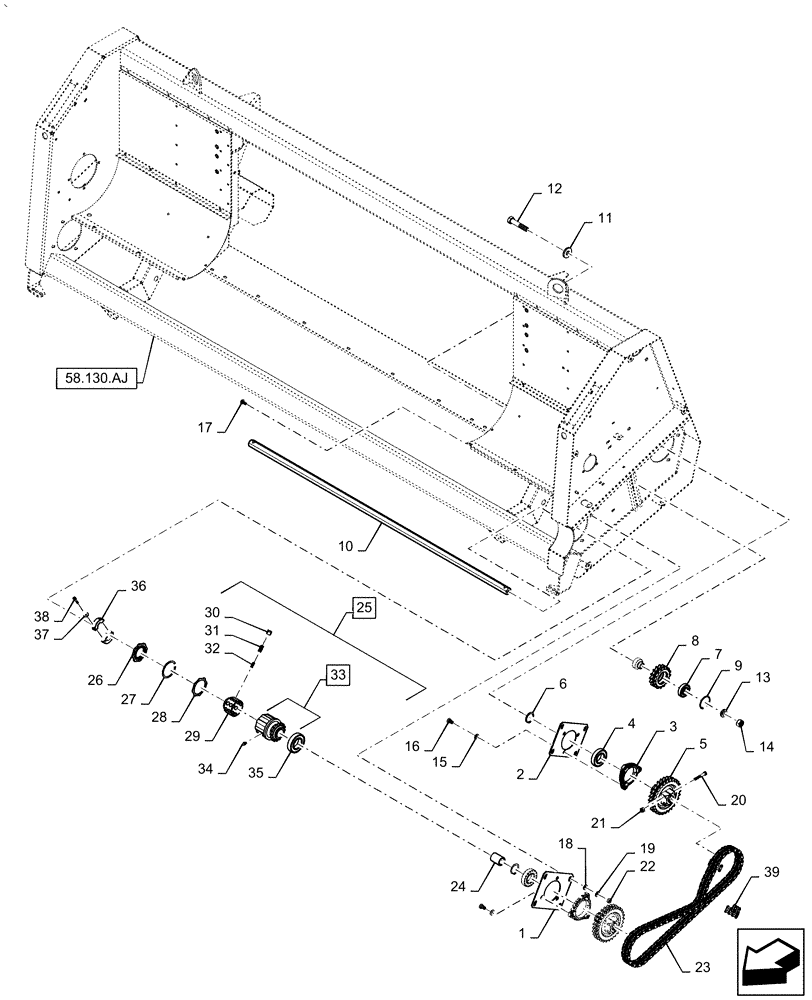

![Схема запчастей Case IH 5506-65 - (58.100.AH[03]) - DRIVE HEADER ASSY, FRONT, WITH CHOPPER, 5506-65 (58) - ATTACHMENTS/HEADERS](https://partsell.ru/storage/images/caseih/5217557.png)
