Запчасти Case IH 5506-65 (58.100.AH[01]) - DRIVER HEADER ASSY, FRONT, WITHOUT CHOPPER, 5506-65 (58) - ATTACHMENTS/HEADERS

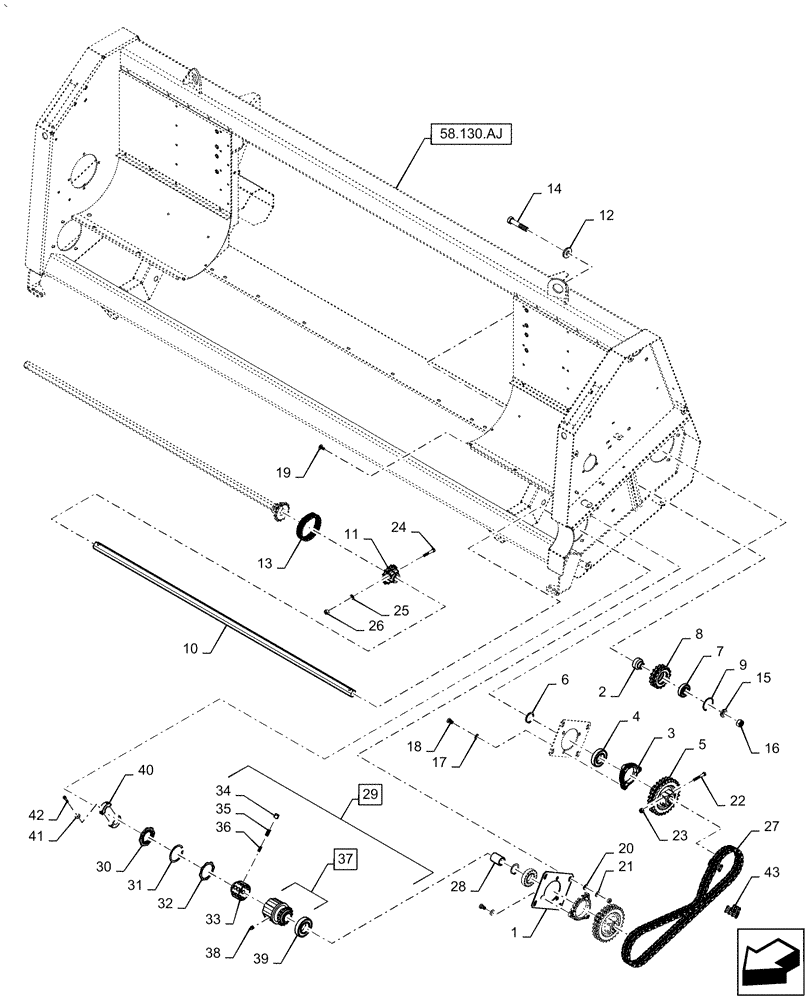

Схема запчастей Case IH 5506-65 - (58.100.AH[01]) - DRIVER HEADER ASSY, FRONT, WITHOUT CHOPPER, 5506-65 (58) - ATTACHMENTS/HEADERS
19
29
28
7
41
26
39
14
43
38
17
5
40
9
25
20
33
10
2
34
21
15
24
13
23
6
30
35
3
18
32
11
27
37
31
12
58.130.aj
22
1
36
16
4
42
8

Артикул

Название

Примечание

Количество

1

322653550

COVER PLATE

2шт.

2

322632550

BUSHING

1шт.

3

300019980

SUPPORT

Housing, Bearing

3шт.

4

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

Ball

3шт.

5

322632450

DRIVEN SPROCKET

Weld Assy

2шт.

6

370007

SNAP RING,M45, Ext

2шт.

7

210043

BALL BEARING,30mm ID x 62mm OD x 16mm W

1шт.

8

300114232

DRIVEN SPROCKET

1шт.

9

370012

RING,M62, Internal

Circlip

1шт.

10

47517385

Drive, Row Unit, 5RR65

SHAFT

2шт.

11

322570650

DRIVEN SPROCKET

2шт.

12

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

1шт.

13

340437629

CHAIN,60-2, 14 Links x 19.05mm = 266.7mm

1шт.

14

15989124

SCREW,M20 x 1.5 x 100mm

1шт.

15

322640650

WASHER

1шт.

16

12164311

NUT,Hex, M20 x 1.5

1шт.

17

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

9шт.

18

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

19

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

18шт.

20

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

10шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

22

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

23

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

24

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

25

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

26

100016

NUT,M10 x 1.5, Cl 8

20шт.

27

84976827

CHAIN,60-2, 90 Links x 19.05mm = 1714.5mm

1шт.

28

322525550

SLEEVE

Bushing

1шт.

29

84972763

CLUTCH

Safety, Incl 30 - 39

1шт.

30

86634290

SEALING RING,58.5mm ID x 84mm OD x 6mm Thk

1шт.

31

300633

SNAP RING,M80, Internal

1шт.

32

418509

RING

Pressure Disc

1шт.

33

84977724

HUB

1шт.

34

275246

CAM

16шт.

35

386510

SPRING,Compression, 13mm OD X 13.2mm L

16шт.

36

279346

SPRING

Inner

7шт.

37

84977723

BOX

Housing, Incl 38

1шт.

38

300919

LUBE NIPPLE

1шт.

39

84977730

LUBRICANT

Bearing, Ball

1шт.

40

84977051

HALF-SHELL

Clamp

2шт.

41

80681

LOCK WASHER,5/16"

Lock

2шт.

42

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

2шт.

43

87536190

CHAIN,60-2, 2 Links x 19.05mm = 38.1mm

1шт.

Выбрано товаров: 43
