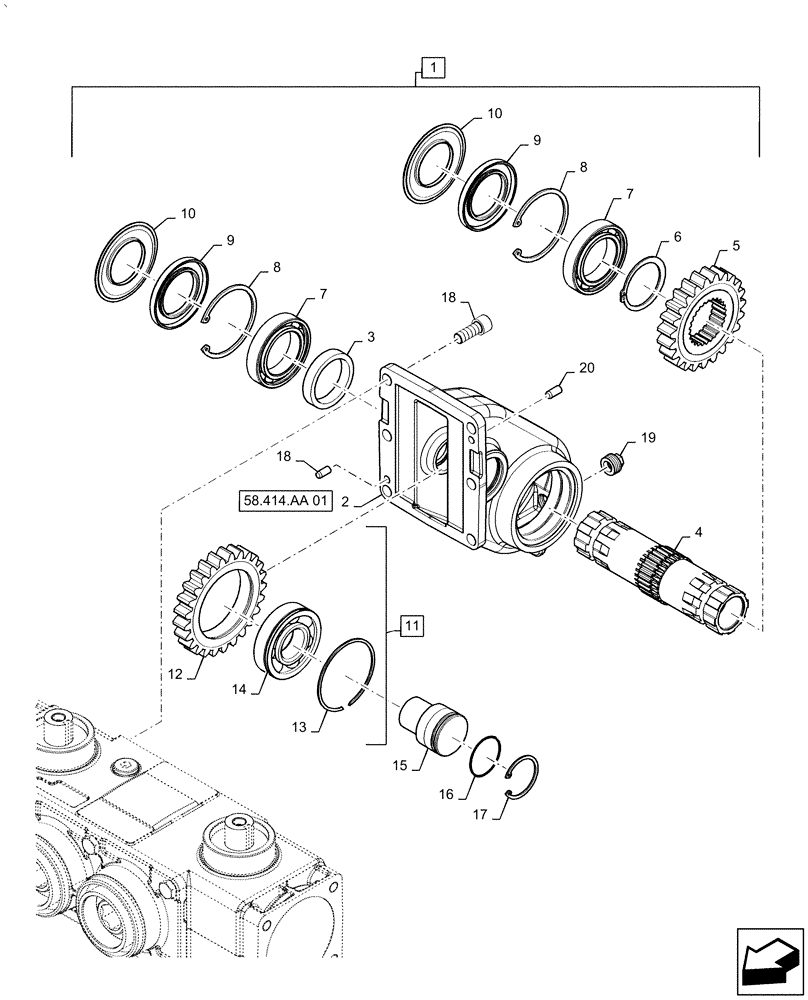

Запчасти Case IH 5506-55 (58.414.AA[02]) - GEARBOX ASSY, WITHOUT CHOPPER (58) - ATTACHMENTS/HEADERS

1

84571575

GEARBOX

Assy, Corn Head Row Unit, Incl 2 - 20

1шт.

2

84297800

HOUSING

Input, Row Unit Gearbox

1шт.

3

322497450

SHIM

Spacer

1шт.

4

322497250

SHAFT

Input

1шт.

5

322497550

GEAR

23 Teeth, Drive

1шт.

6

327911

CIRCLIP,55mm ID

1шт.

7

86516079

BALL BEARING,50mm ID x 80mm OD x 16mm W

2шт.

8

300633

SNAP RING,M80, Internal

2шт.

9

322498850

OIL SCRAPER RING

Seal

2шт.

10

322497350

PROTECTION CAP

Shield, Oil Seal

2шт.

11

84390159

GEAR

Bearing Assy, Incl 12-14

1шт.

12

322497650

GEAR

25 Teeth, Idler

1шт.

13

84390160

RING

Retaining

1шт.

14

84355790

BALL BEARING

1шт.

15

84571580

SHAFT

Idler

1шт.

16

511212

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

17

300647

SNAP RING,M47, Int

Circlip

1шт.

18

14422021

HEX SOC SCREW,M12 x 30mm, Cl 8.8

6шт.

19

322496550

PLUG

1шт.

20

10337410

DOWEL,M8 x 18

Pin, Straight

4шт.
