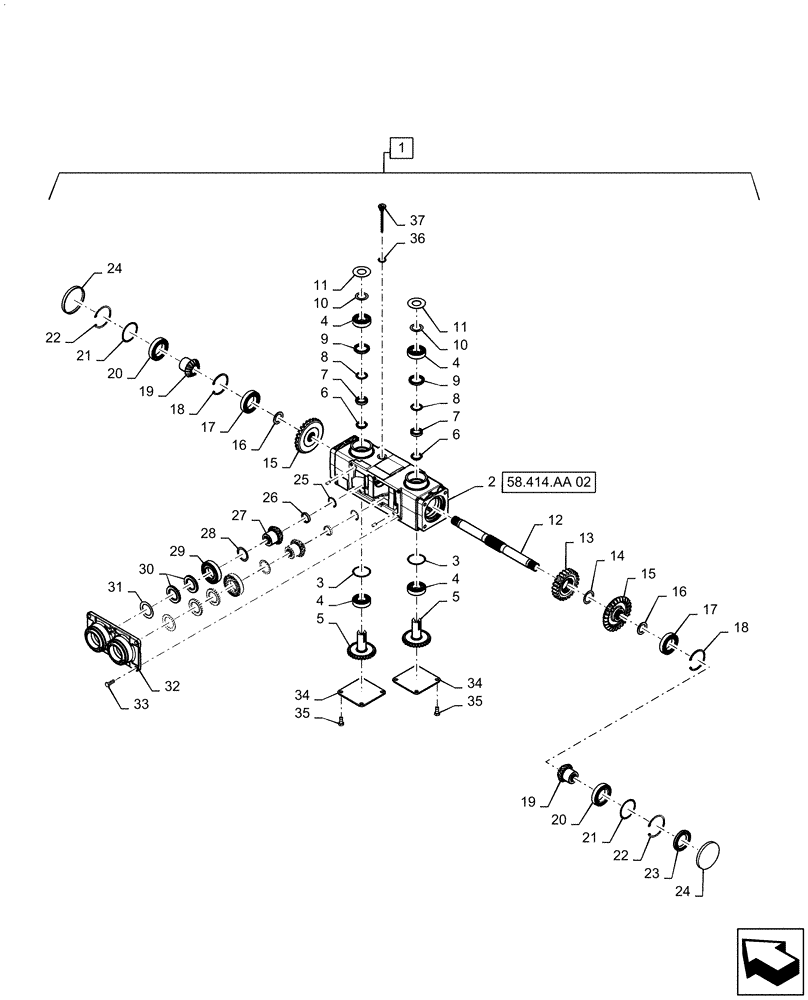

Запчасти Case IH 5506-55 (58.414.AA[01]) - GEARBOX ASSY, WITHOUT CHOPPER (58) - ATTACHMENTS/HEADERS

1

84571575

GEARBOX

Assy, Cornhead Row Unit, Incl 2 - 37

1шт.

2

84523341

HOUSING

Gearbox, Main

1шт.

3

322495600

SET OF RINGS

Shim Kit

2шт.

4

28042330

BALL BEARING,30mm ID x 62mm OD x 20mm W

4шт.

5

84571576

GEAR

Bevel, 28 Teeth, Gathering Shaft, Drive

2шт.

6

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

7

322495750

BUSHING

Retainer, O-Ring Seal

2шт.

8

322577550

ADJUSTING PLATE

2шт.

9

84522103

OIL SEAL

2шт.

10

322495850

ADJUSTING PLATE

Shim

2шт.

11

322496050

WASHER

2шт.

12

322496950

SHAFT

Main

1шт.

13

322497750

GEAR

Spur, 25 Teeth, Mainshaft, Driven

1шт.

14

322493800

SET OF RINGS

Shim Kit

1шт.

15

322497050

GEAR

Bevel, 26 Teeth, Stalk Roll, Drive

2шт.

16

322497850

ADJUSTING PLATE

Washer

2шт.

17

20685450

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

2шт.

18

370012

RING,M62, Internal

Circlip

2шт.

19

84571577

BEVEL GEAR

17 Teeth, Gathering, Drive

2шт.

20

28042490

BALL BEARING

Cuscinetto Sfere

2шт.

21

322496200

SET OF RINGS

Shim Kit

2шт.

22

382103

SNAP RING,M75, Internal

2шт.

23

353583184

OIL SEAL

1шт.

24

322496850

DUST CAP

Plug, Cover

2шт.

25

300642

CIRCLIP,M35 x 1.5mm W, Internal

2шт.

26

322644650

PROTECTION CAP

Plug, Cover

2шт.

27

322644450

GEAR

Bevel, 13 Teeth, Stalk Roll, Driven

2шт.

28

322493200

SET OF RINGS

Shim Kit

2шт.

29

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.

30

322578450

OIL SCRAPER RING

4шт.

31

322497950

WASHER

2шт.

32

322644250

COVER

Housing, Stalk Roll

1шт.

33

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

34

322494150

COVER

Gearcase

2шт.

35

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

36

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

37

322644550

INDICATOR

Dipstick

1шт.
