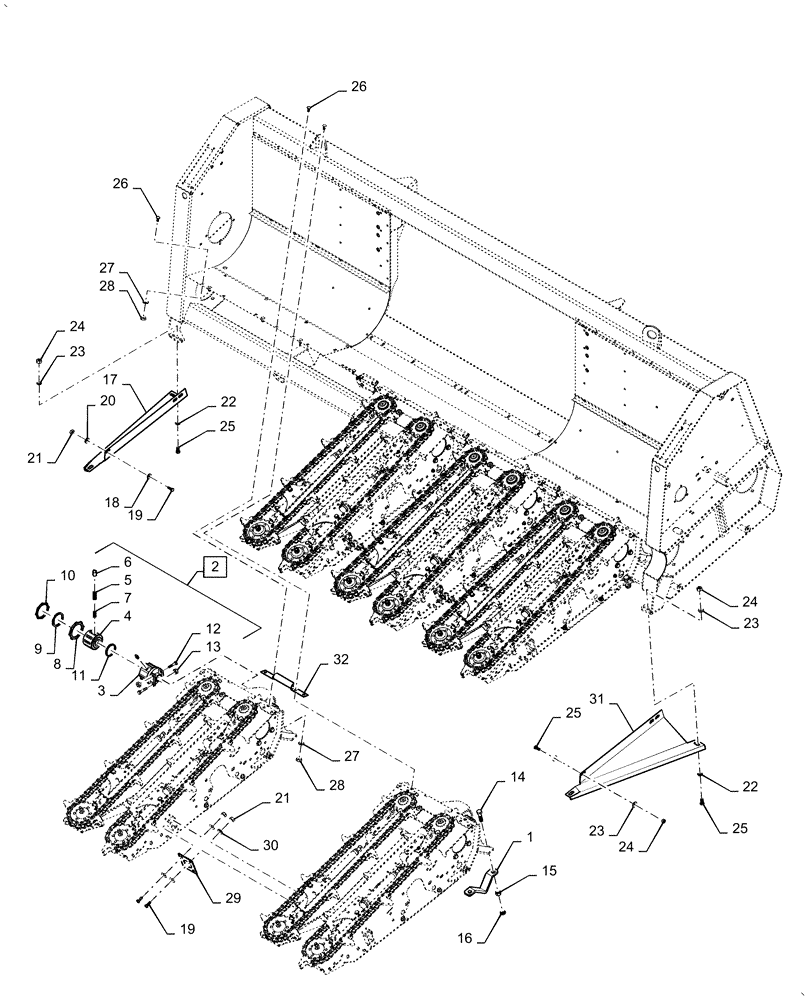

Запчасти Case IH 5506-55 (58.230.AI[02]) - ROW UNIT, WITHOUT CHOPPER, 5506-55 (58) - ATTACHMENTS/HEADERS

1

322422250

RETAINER COLLAR

Support

12шт.

2

84972762

CLUTCH

Assy, Incl 3 - 13

6шт.

3

84977731

BOX

Housing

1шт.

4

84977728

HUB

1шт.

5

386510

SPRING,Compression, 13mm OD X 13.2mm L

20шт.

6

386511

SPRING,Compression, 7mm OD x 13.2mm L

Internal

20шт.

7

86636027

DISC

Pressure

1шт.

8

300633

SNAP RING,M80, Internal

Retain

1шт.

9

86634290

SEALING RING,58.5mm ID x 84mm OD x 6mm Thk

1шт.

10

86634289

SEAL

1шт.

11

754181

BOLT

2шт.

12

100038

NUT,M12 x 1.75, Cl 8

Prev Torque

2шт.

13

84447449

LUBE NIPPLE,M8.2 x 1

Grease

2шт.

14

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

24шт.

15

10790521

NUT,M16 x 1.5, Cl 10

24шт.

16

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

24шт.

17

322457050

PLATE

Stiffener, RH

1шт.

18

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

22шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

22шт.

22

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

24

9706685

NUT,M12 x 1.75, Cl 8

6шт.

25

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

26

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

12шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

28

9706690

NUT,M8 x 1.25, Cl 8

12шт.

29

47599862

Support, Rowunit-55cm

BOARD

5шт.

30

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

40шт.

31

47598411

Shield, LH

SERVICE KIT

1шт.

32

47637737

Plate

SERVICE KIT

5шт.
