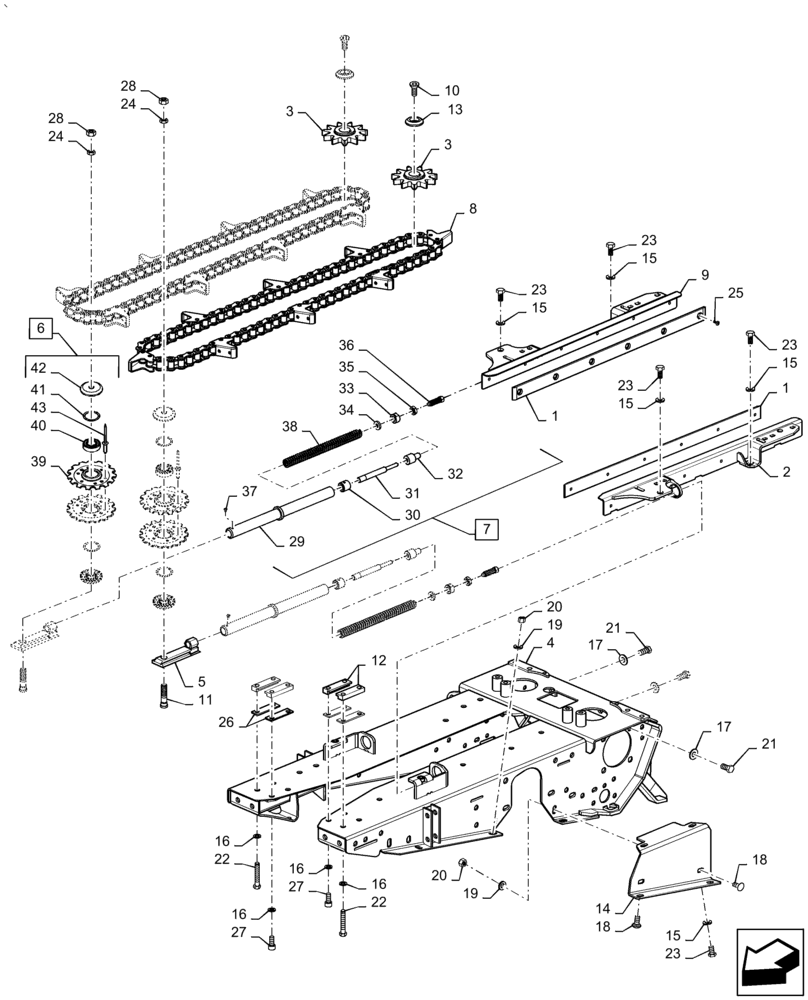

Запчасти Case IH 5506-55 (58.230.AI[01]) - ROW UNIT, WITHOUT CHOPPER (58) - ATTACHMENTS/HEADERS

1

84977612

SLIDING PAD

Wear Strip

2шт.

2

47478611

GUIDE

Weld Assy, LH

1шт.

3

84977235

SPROCKET,DRIVE

11 Tooth

2шт.

4

47491771

Weld Assy, Row Unit

FRAME

1шт.

5

84513854

GUIDE

Weld Assy

2шт.

6

87473652

DRIVEN SPROCKET

Assy, 15 Tooth Idler, Incl 39 - 43

2шт.

7

47451459

SPRING

Incl 29 - 38

2шт.

8

84977231

GATHERING CHAIN

Assy

2шт.

9

47478613

GUIDE

Weld Assy, RH

1шт.

10

84976774

SCREW,FLAT, M12 x 30mm, Cl 8.8

2шт.

11

47455269

BOLT

2шт.

12

84514345

GUIDE

4шт.

13

322453050

LOCK WASHER

2шт.

14

322428950

SUPPORT

Sheet

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

16

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Helical Spring Lock

8шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

18

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

19

355501130

WASHER

4шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

21

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

16шт.

22

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

23

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

24

84305109

NUT

2шт.

25

445394

RIVET,Pop, 3/16" x 1/2" OAL

12шт.

26

84514774

PLATE

4шт.

27

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

7шт.

28

47455264

NUT

2шт.

29

NSS

NOT SOLD SEPARAT

Tube Weld Assy, Incl in 7

1шт.

30

NSS

NOT SOLD SEPARAT

Insert, Incl in 7

1шт.

31

NSS

NOT SOLD SEPARAT

Rod Guide, Incl in 7

1шт.

32

NSS

NOT SOLD SEPARAT

Insert, Incl in 7

1шт.

33

NSS

NOT SOLD SEPARAT

Ring, Incl in 7

1шт.

34

NSS

NOT SOLD SEPARAT

Washer, Incl in 7

1шт.

35

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

1шт.

36

NSS

NOT SOLD SEPARAT

Bolt, Incl in 7

1шт.

37

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

1шт.

38

47451414

COMPRESSION SPRING

1шт.

39

NSS

NOT SOLD SEPARAT

Sprocket, 15 Tooth, Half, Incl in 6

2шт.

40

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

41

84176302

Sprocket, Teflon

OIL SEAL

2шт.

42

84170589

Shield

BUSHING

2шт.

43

84177562

Rivet

SUPPORT

6шт.
