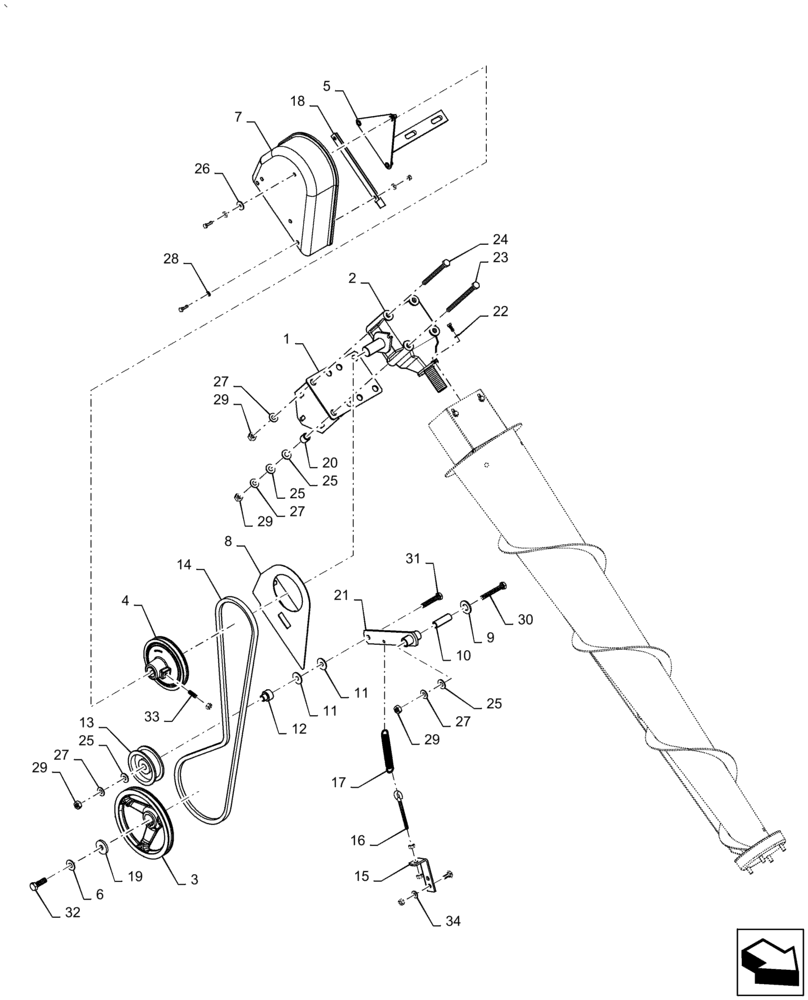

Запчасти Case IH 5506-55 (58.228.AG[01]) - AUGER DIVIDER, END, RH (58) - ATTACHMENTS/HEADERS

1

84976251

SUPPORT

Gearbox

1шт.

2

84976269

GEARBOX

Bevel

1шт.

3

322529250

PULLEY,185mm OD

End Auger Drive

1шт.

4

322423550

PULLEY

End Auger Driven

1шт.

5

84976257

SUPPORT

Shield Weld Assy, Mount, RH

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

7

84976104

SHIELD

Guard RH

1шт.

8

84976253

SHIELD

Support LH

1шт.

9

355501730

WASHER

1шт.

10

322447850

TUBE SPACER,10.5mm ID x 16mm OD x 50mm L

Bushing

1шт.

11

355511020

WASHER

2шт.

12

322423950

BUSHING

Spacer

1шт.

13

322280550

BELT TENSIONER,76.2mm Idler Dia x 92mm OD x 31mm W

Idler

1шт.

14

47732166

BELT

End Divider Auger

1шт.

15

322456450

BRACKET

Support, Spring

1шт.

16

84025292

BANJO BOLT

1шт.

17

350356538

SPRING

Extension

1шт.

18

84976263

BRACKET

Profile RH

1шт.

19

355511250

WASHER

1шт.

20

340415211

BUSHING

2шт.

21

322450550

SUPPORT

Idler, Arm Weld Assy

1шт.

22

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

23

212668

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8, Full Thd

2шт.

24

120118

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8, Full Thd

2шт.

25

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

26

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

3шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

29

100016

NUT,M10 x 1.5, Cl 8

6шт.

30

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

1шт.

31

412217

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

1шт.

32

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

33

300479

SET SCREW,M8 x 25mm

2шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.
