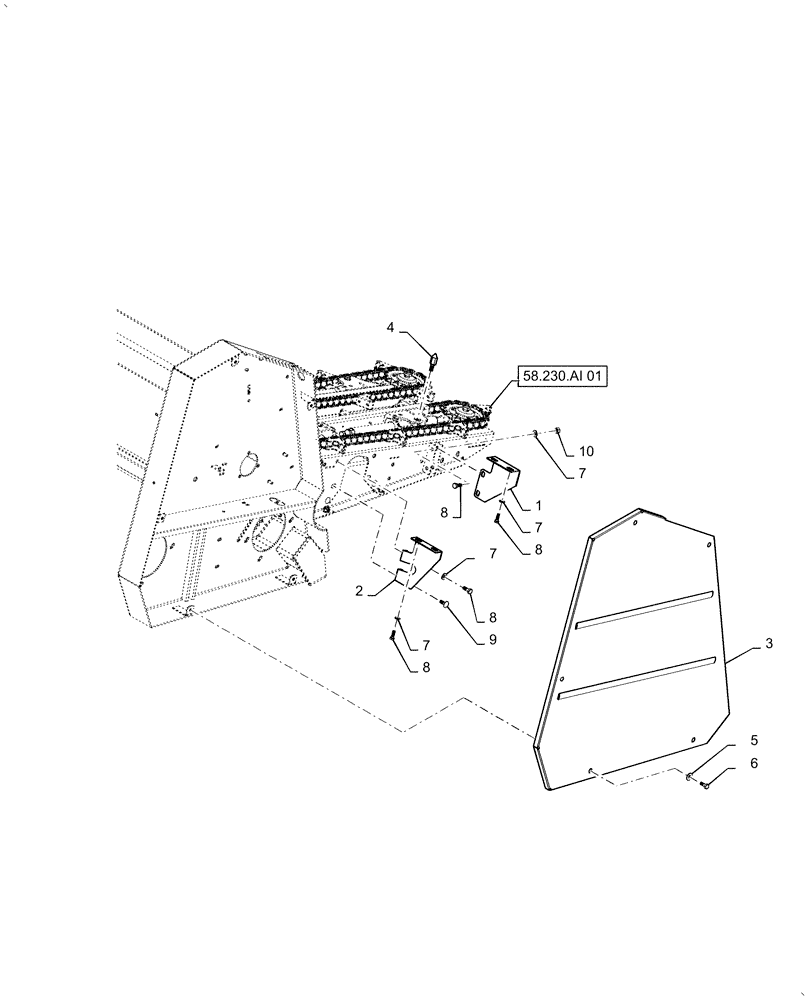

Запчасти Case IH 5506-55 (58.208.AA[04]) - HOOD ASSY, RH, OUTER (58) - ATTACHMENTS/HEADERS

1

322450450

BRACKET

Support RH, Front

1шт.

2

322446750

BRACKET

Support RH, Rear

1шт.

3

47535882

Shield RH

SERVICE KIT

1шт.

4

322631750

DOWEL,M10

Pin

1шт.

5

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

5шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

8

BER43139

BOLT

7шт.

9

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

10

100016

NUT,M10 x 1.5, Cl 8

3шт.
