Запчасти Case IH 5506-55 (58.100.AH[06]) - DRIVE HEADER ASSY, REAR PTO, SHAFT, 6R65 (58) - ATTACHMENTS/HEADERS

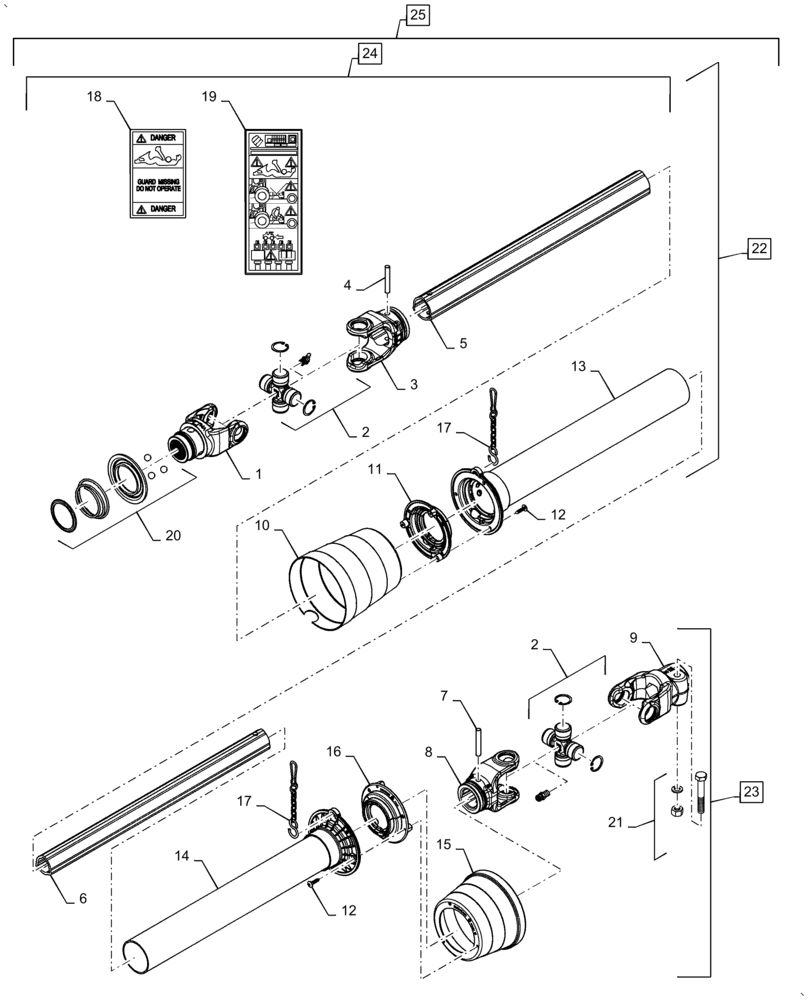

Схема запчастей Case IH 5506-55 - (58.100.AH[06]) - DRIVE HEADER ASSY, REAR PTO, SHAFT, 6R65 (58) - ATTACHMENTS/HEADERS
11
9
24
23
17
13
21
20
1
4
25
14
15
7
19
3
10
17
12
6
8
18
12
2
2
5
22
16

Артикул

Название

Примечание

Количество

1

47807027

YOKE

1шт.

2

47807026

Kit

CROSSBAR

2шт.

3

47807029

Yoke

TUBE

1шт.

4

47807030

Flexible Roll

PIN

1шт.

5

47807062

Drive, Cardan

TUBE

1шт.

6

47807063

Drive, Cardan

TUBE

1шт.

7

47807034

Flexible Roll

PIN

1шт.

8

47807036

Yoke

TUBE

1шт.

9

47807037

4 Hexagon

YOKE

1шт.

10

47807038

Cone

SHIELD

1шт.

11

47807039

Support

SHIELD

1шт.

12

86625168

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

13

47807064

Tube Outer

SHIELD

1шт.

14

47807065

Tube Inner

SHIELD

1шт.

15

47807042

Cone

SHIELD

1шт.

16

47807043

Support

SHIELD

1шт.

17

47807045

Chain

SHIELD

2шт.

18

849471

DANGER DECAL

1шт.

19

47807046

On Outer Plastic Tube

DECAL

1шт.

20

47807048

Collar Kit

BALL

1шт.

21

47807049

SCREW

1шт.

22

47807066

Half, Cleared, Incl 1 - 5, 10 - 13, 17, 20

SHAFT

1шт.

23

47807067

Half, Cleared, Incl 2, 6 - 9, 12, 14 - 17, 21

SHAFT

1шт.

24

47807068

Complete Kit, Incl 1 - 21

SHIELD

1шт.

25

47673323

PTO, 6R65, Incl 1 - 24

SHAFT

1шт.

Выбрано товаров: 25
