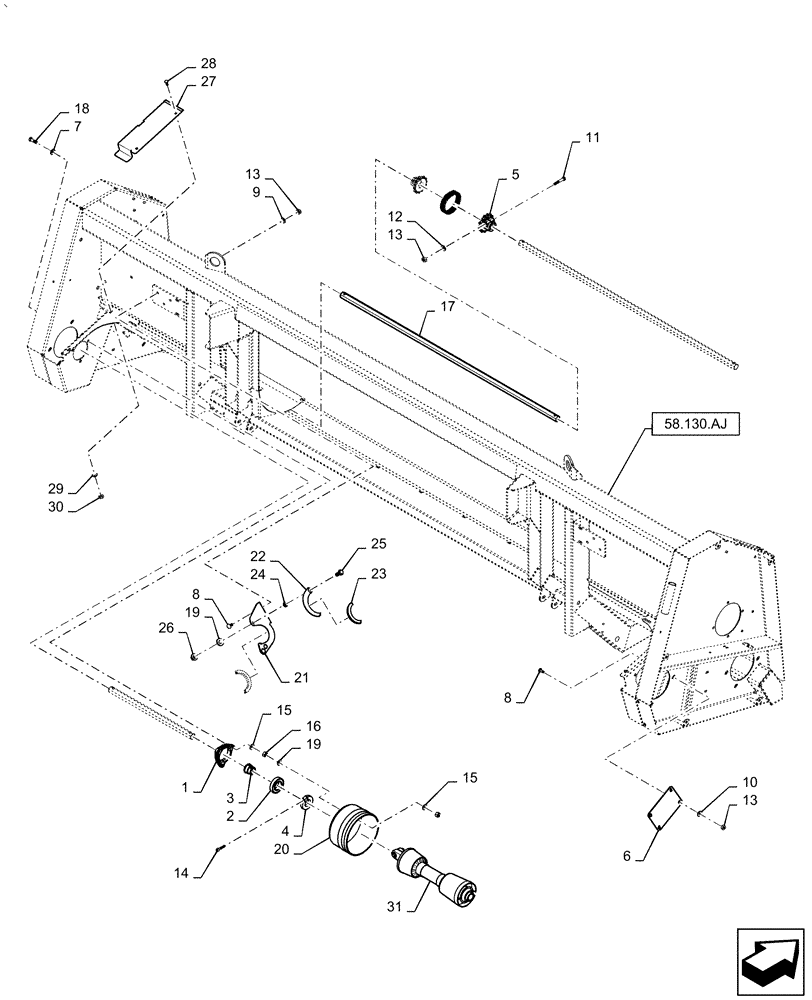

Запчасти Case IH 5506-55 (58.100.AH[02]) - DRIVE HEADER ASSY, REAR, WITHOUT CHOPPER (58) - ATTACHMENTS/HEADERS

1

300019980

SUPPORT

Housing, Bearing

3шт.

2

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

Ball

3шт.

3

87750436

BUSHING

1шт.

4

87750435

LOCKING RING

1шт.

5

322570650

DRIVEN SPROCKET

2шт.

6

322698350

COVER

Plate

2шт.

7

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

9шт.

8

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

18шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

10шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

11

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

12

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Helical Spring Lock

2шт.

13

100016

NUT,M10 x 1.5, Cl 8

20шт.

14

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

1шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

16

825-11412

NUT,M12 x 1.25, Cl 8

6шт.

17

47517385

Drive, Row Unit, 6RR65

SHAFT

1шт.

18

16208334

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

3шт.

19

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

20

47681406

Shield, Safety, PTO

BOARD

1шт.

21

47688521

PTO, Hanger

SERVICE KIT

1шт.

22

47688522

PTO LH

HOOK

1шт.

23

9850033

SEAL

1шт.

24

10397380

GROMMET

1шт.

25

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

Flange

1шт.

26

84014971

FLANGE NUT,M12 x 1.75, Cl 8.8

Prev Torque

1шт.

27

47687272

LH

COVER

1шт.

28

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

29

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

30

9706690

NUT,M8 x 1.25, Cl 8

2шт.

31

47673319

PTO - 5R65/6R55

SHAFT

1шт.
