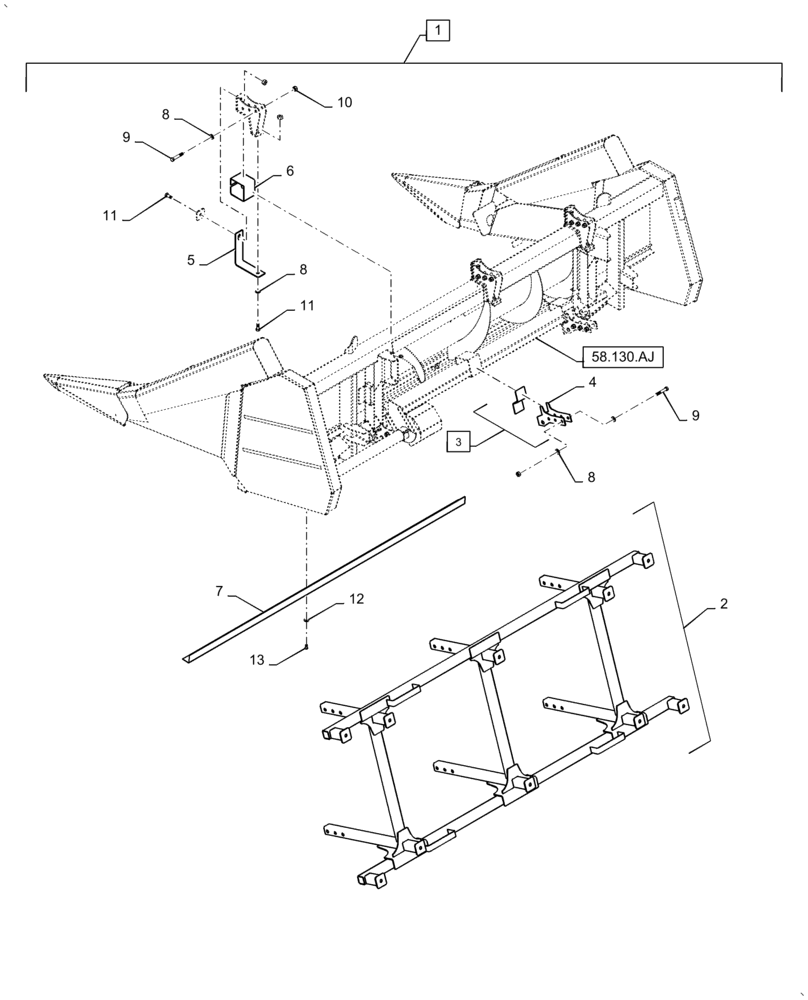

Запчасти Case IH 5506-55 (58.100.AD) - PALLET ASSY, HEADER FRAME (58) - ATTACHMENTS/HEADERS

1

47631472

Assy, Incl 2 - 13

FRAME

1шт.

2

NSS

NOT SOLD SEPARAT

Pallet, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

3шт.

4

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

3шт.

6

NSS

NOT SOLD SEPARAT

Lath, Incl in 1

6шт.

7

NSS

NOT SOLD SEPARAT

Angle, Incl in 1

1шт.

8

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

41шт.

9

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

18шт.

10

12163311

NUT,M16, Cl 8

20шт.

11

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

12

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

13

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.
