(90.108.AC[01]) - DECALS, SAFETY & INSTRUCTION

Запчасти Case IH 5505-65 (90.108.AC[01]) - DECALS, SAFETY & INSTRUCTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

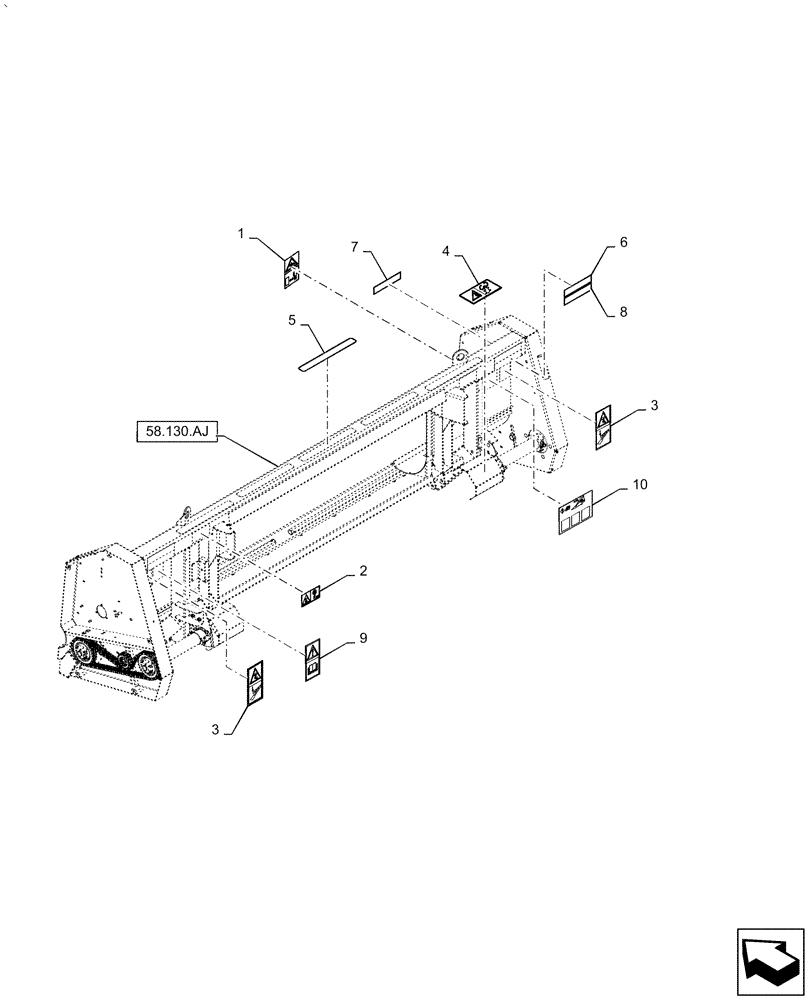

Схема запчастей Case IH 5505-65 - (90.108.AC[01]) - DECALS, SAFETY & INSTRUCTION (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
10
9
3
5
7
6
58.130.aj
3
4
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84400502

DECAL

2шт.

2

84593097

DECAL

Lift Point

2шт.

3

144380A1

DECAL

Lock Lift Cylinder, Euro

4шт.

4

86999254

DANGER DECAL

2шт.

5

87022092

DECAL

4шт.

6

86547781

REFLECTOR,RED

Decal

2шт.

7

86547782

REFLECTOR,YELLOW

Decal

2шт.

8

86547783

REFLECTOR,Tape, Red Orange

2шт.

9

256147A1

DECAL

Read Operator Manual-ISO

1шт.

10

47546503

Lubrication

DECAL

1шт.

Выбрано товаров: 10
