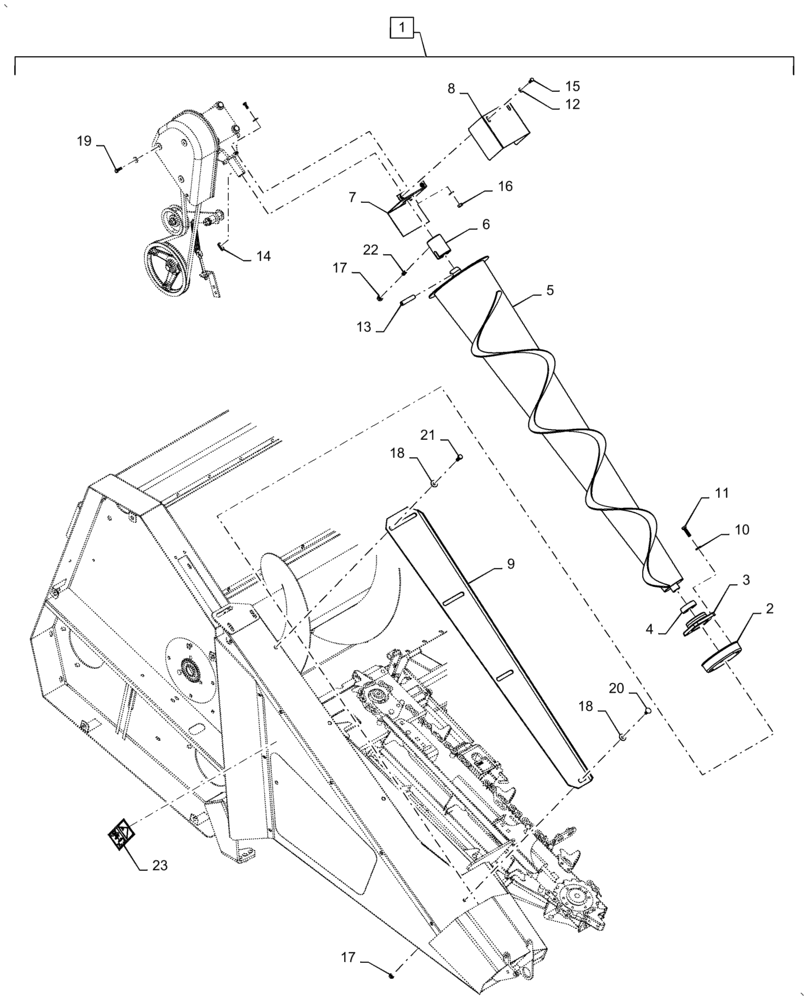

Запчасти Case IH 5505-65 (88.100.58[04]) - DIA KIT, AUGER DIVIDER, END, RH (88) - ACCESSORIES

1

47732087

DIA KIT, HARVESTER

Auger RH, End Divider, Incl 2 - 23

1шт.

2

84976235

PROTECTION CAP

Shield

1шт.

3

84976225

BEARING HOUSING

1шт.

4

340411236

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

5

84976229

AUGER

Weld Assy, RH

1шт.

6

84976237

HYD CONNECTOR

Coupling, Auger Drive

1шт.

7

84976000

GUARD

Shield

1шт.

8

84976267

GUARD

Shield Red, End Auger

1шт.

9

84976407

SUPPORT

Plate, Anti-Wrap LH

1шт.

10

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

Helical Spring

4шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

13

278910

LOCK PIN,12mm OD x 55mm L, Slotted

Spring

1шт.

14

170005

KEY,M8 x 7mm W x 25mm OAL

Square

3шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

16

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

17

43362

NUT,M8 x 1.25, Cl 10

10шт.

18

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

7шт.

19

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

22

300477

SET SCREW,M8 x 16mm

1шт.

23

341000042

DECAL

Warning, Crush Hazard

1шт.
