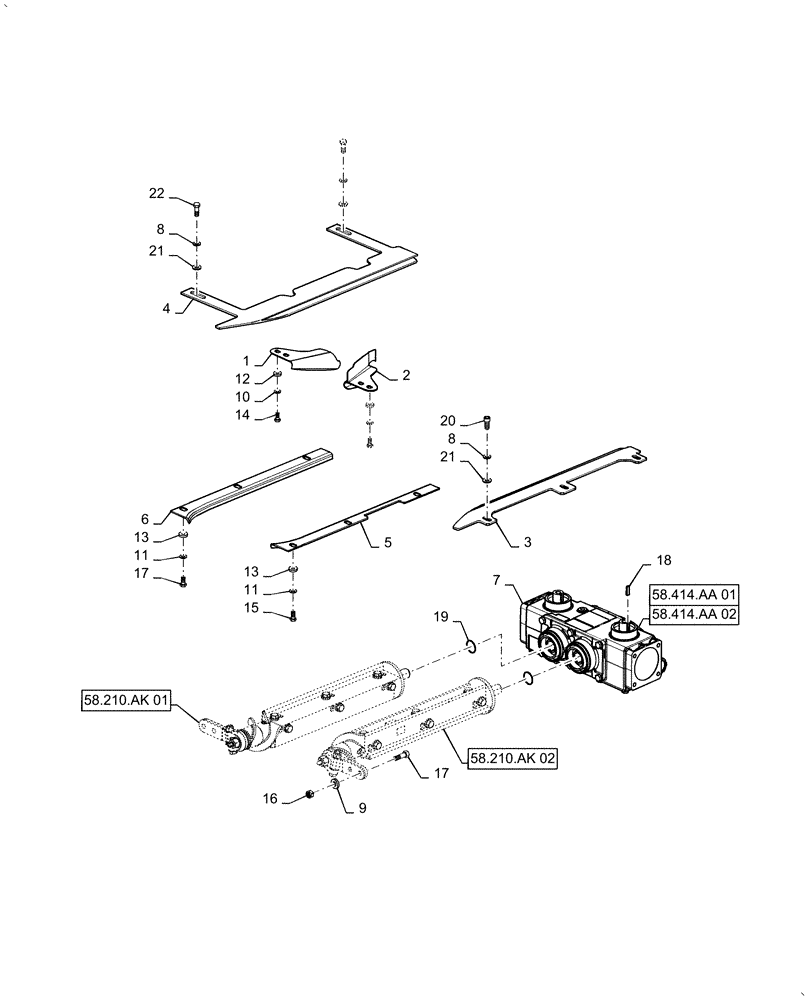

Запчасти Case IH 5505-65 (58.230.AI [02]) - ROW UNIT, WITHOUT CHOPPER (58) - ATTACHMENTS/HEADERS

1

87662218

SHIELD

Weld Assy, RH

1шт.

2

87662222

SHIELD

Weld Assy, LH

1шт.

3

47474090

PLATE

LH

1шт.

4

47455838

RH

STRIPPER

1шт.

5

322592150

SHEAR BAR

Blade

1шт.

6

322592050

SHEAR BAR

Blade

1шт.

7

84571976

GEARBOX

Assy, Corn Head Row Unit

1шт.

7

84571976R

REMAN-GEARBOX

Assy, Corn Head Row Unit

1шт.

7

84571976C

CORE-GEARBOX

Return Number

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

9

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

12

86592699

WASHER,8.4mm ID x 23mm OD x 4mm Thk

4шт.

13

84000016

WASHER,12.5mm ID x 30mm OD x 5mm Thk

6шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

16шт.

16

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

17

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

18

322743050

KEY

Square

2шт.

19

322593550

SEAL

Rubber

2шт.

20

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

7шт.

21

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

5шт.

22

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.
