Запчасти Case IH 5505-65 (58.230.AI[06]) - ROW UNIT, WITH CHOPPER (58) - ATTACHMENTS/HEADERS

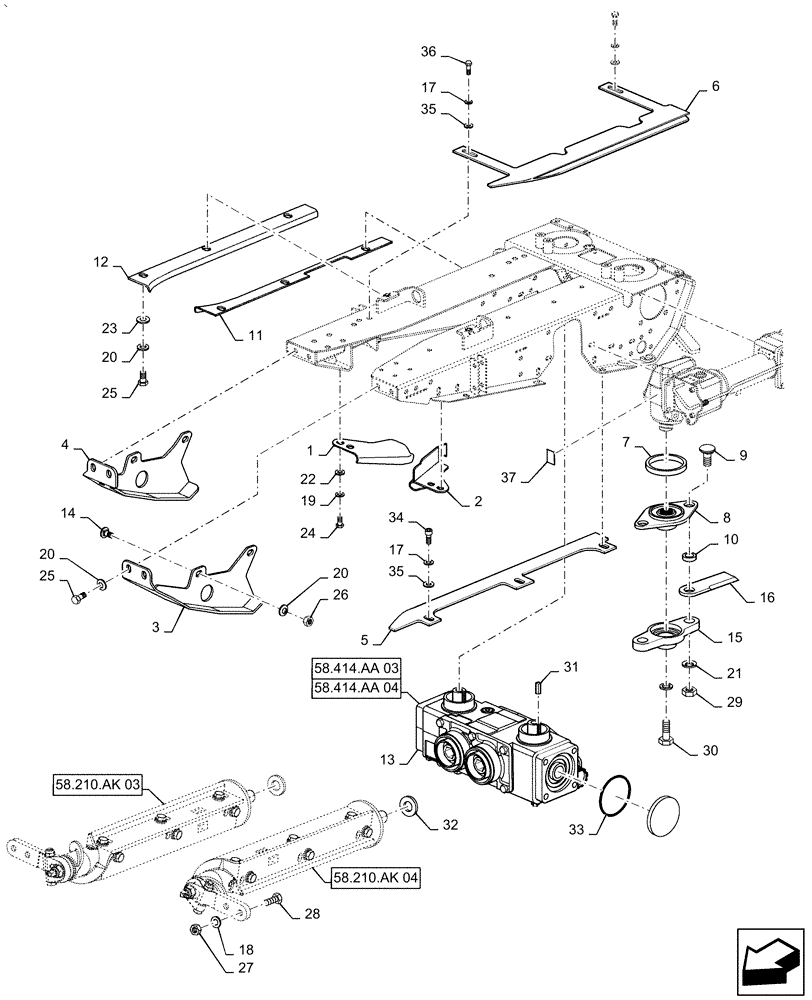

Схема запчастей Case IH 5505-65 - (58.230.AI[06]) - ROW UNIT, WITH CHOPPER (58) - ATTACHMENTS/HEADERS
25
26
22
24
30
9
58.414.aa 04
27
6
20
21
17
10
37
12
16
36
4
15
32
34
18
29
35
8
19
58.210.ak 03
17
7
28
5
20
58.414.aa 03
58.210.ak 04
25
35
31
11
14
2
1
23
13
33
20
3

Артикул

Название

Примечание

Количество

1

87662218

SHIELD

Weld Assy, RH

1шт.

2

87662222

SHIELD

Weld Assy, LH

1шт.

3

84497506

SKID/SHOE

Weld Assy, LH

1шт.

4

84528829

SKID/SHOE

Weld Assy, RH

1шт.

5

47474090

PLATE

LH

1шт.

6

47455838

RH

STRIPPER

1шт.

7

84977049

RING,85mm ID x 101.6mm OD x 14.5mm Thk

1шт.

8

84977178

HUB

Weld Assy

1шт.

9

84972753

BOLT,M16 x 1.5 x 40mm, Cl 8.8

2шт.

10

322630350

WASHER,16.2mm ID x 30mm OD x 7mm L

Washer

2шт.

11

322592150

SHEAR BAR

Cutting Blade

1шт.

12

322592050

SHEAR BAR

Cutting Blade

1шт.

13

84571976

GEARBOX

Assy, Cornhead Row Unit

1шт.

13

84571976R

REMAN-GEARBOX

Assy, Cornhead Row Unit

1шт.

13

84571976C

CORE-GEARBOX

Return Number

1шт.

14

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

15

322630250

FLANGE

Disc Bot

1шт.

16

47818715

KNIFE

Chopper

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

18

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

4шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

20шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

3шт.

22

86592699

WASHER,8.4mm ID x 23mm OD x 4mm Thk

4шт.

23

84000016

WASHER,12.5mm ID x 30mm OD x 5mm Thk

6шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

25

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

18шт.

26

9706685

NUT,M12 x 1.75, Cl 8

4шт.

27

412672

NUT,Hex, M12 x 1.75, Cl 10

Privilege Torque

4шт.

28

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

7шт.

29

12164111

NUT,M16, Cl 8

2шт.

30

15840521

SCREW,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

31

322743050

KEY

Square

2шт.

32

322593550

SEAL

Rubber

2шт.

33

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

34

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

7шт.

35

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

5шт.

36

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

37

341000067

DECAL

1шт.

Выбрано товаров: 39
