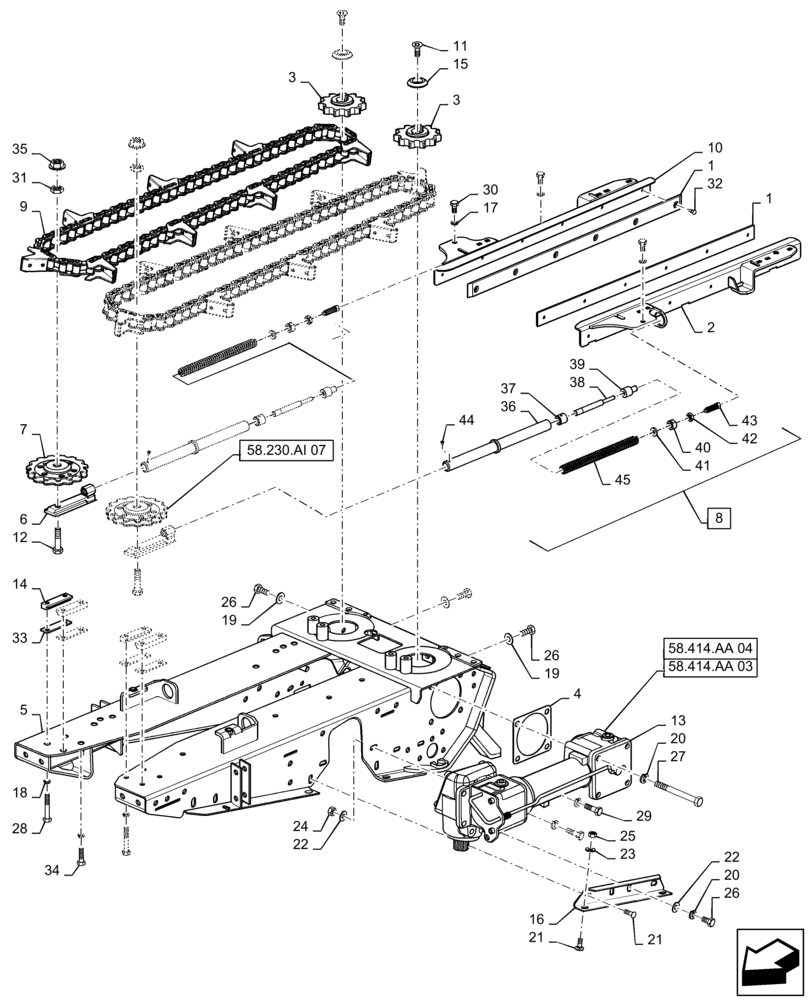

Запчасти Case IH 5505-65 (58.230.AI[05]) - ROW UNIT, WITH CHOPPER (58) - ATTACHMENTS/HEADERS

1

84977612

SLIDING PAD

Wear Strip

2шт.

2

47478611

GUIDE

Weld Assy, LH

1шт.

3

84977235

SPROCKET,DRIVE

11 Tooth

2шт.

4

84977694

SHIM

1шт.

5

47491771

Weld Assy, Row Unit

FRAME

1шт.

6

84513854

GUIDE

Weld Assy

2шт.

7

87473652

DRIVEN SPROCKET

Assy, 15 Tooth Idler

2шт.

8

47451459

SPRING

Assy, Incl 36 - 45

2шт.

9

84977231

GATHERING CHAIN

Assy

2шт.

10

47478613

GUIDE

Weld Assy, RH

1шт.

11

84976774

SCREW,FLAT, M12 x 30mm, Cl 8.8

2шт.

12

47455269

BOLT

2шт.

13

322592700

GEARBOX

Chopping Knife Drive

1шт.

14

84514345

GUIDE

Plated

4шт.

15

322453050

LOCK WASHER

2шт.

16

322630050

BRACKET

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

18

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Helical Spring

8шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

20шт.

20

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

21

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

22

355501330

WASHER

4шт.

23

355501130

WASHER

4шт.

24

100038

NUT,M12 x 1.75, Cl 8

Privilege Torque

2шт.

25

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

26

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

18шт.

27

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

2шт.

28

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

29

14422121

HEX SOC SCREW,M12 x 35mm, Cl 8.8, Full Thd

2шт.

30

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

31

84305109

NUT

2шт.

32

445394

RIVET,Pop, 3/16" x 1/2" OAL

12шт.

33

84514774

PLATE

4шт.

34

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

7шт.

35

47455264

NUT

2шт.

36

NSS

NOT SOLD SEPARAT

Tube Weld Assy, Incl in 8

1шт.

37

NSS

NOT SOLD SEPARAT

Insert, Incl in 8

1шт.

38

NSS

NOT SOLD SEPARAT

Rod, Guide, Incl in 8

1шт.

39

NSS

NOT SOLD SEPARAT

Insert, Incl in 8

1шт.

40

NSS

NOT SOLD SEPARAT

Ring, Incl in 8

1шт.

41

NSS

NOT SOLD SEPARAT

Washer, Incl in 8

1шт.

42

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

1шт.

43

NSS

NOT SOLD SEPARAT

Bolt, Incl in 8

1шт.

44

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

1шт.

45

47451414

COMPRESSION SPRING

1шт.
