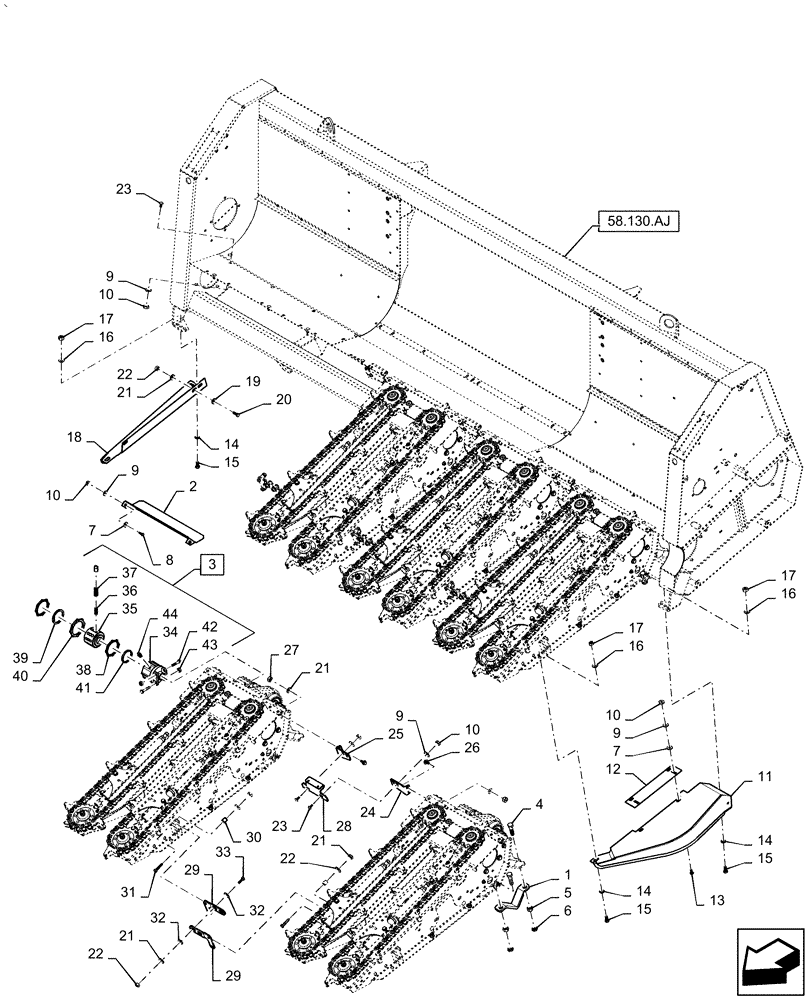

Запчасти Case IH 5505-65 (58.230.AI[03]) - ROW UNIT, WITHOUT CHOPPER (58) - ATTACHMENTS/HEADERS

1

322422250

RETAINER COLLAR

Support

10шт.

2

322630550

SHIELD

Row Unit

5шт.

3

84972762

CLUTCH

Assy, Incl 34 - 44

5шт.

4

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

20шт.

5

10790521

NUT,M16 x 1.5, Cl 10

20шт.

6

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

20шт.

7

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

12шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

30шт.

10

9706690

NUT,M8 x 1.25, Cl 8

30шт.

11

322594350

SHIELD

Guard

1шт.

12

322462050

COVER PLATE

1шт.

13

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

14

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

15

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

17

9706685

NUT,M12 x 1.75, Cl 8

4шт.

18

322556250

PLATE

Shield

1шт.

19

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

BER43139

BOLT

2шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

42шт.

22

100016

NUT,M10 x 1.5, Cl 8

26шт.

23

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

18шт.

24

47623780

Support

BOARD

4шт.

25

47623779

Support

BOARD

4шт.

26

86705428

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

Flange, Heavy

16шт.

27

86500689

NUT,M10 x 1.5, Cl 10

16шт.

28

47623782

Plate

SERVICE KIT

4шт.

29

47537989

Support, Row Unit Front

BOARD

8шт.

30

322554950

BUSHING

Spacer

16шт.

31

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

16шт.

32

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

16шт.

33

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

34

84977731

BOX

Housing

1шт.

35

84977728

HUB

1шт.

36

386510

SPRING,Compression, 13mm OD X 13.2mm L

20шт.

37

386511

SPRING,Compression, 7mm OD x 13.2mm L

Internal

20шт.

38

86636027

DISC

Pressure

1шт.

39

300633

SNAP RING,M80, Internal

1шт.

40

86634290

SEALING RING,58.5mm ID x 84mm OD x 6mm Thk

1шт.

41

86634289

SEAL

1шт.

42

754181

BOLT

2шт.

43

100038

NUT,M12 x 1.75, Cl 8

Privilege Torque

2шт.

44

84447449

LUBE NIPPLE,M8.2 x 1

2шт.
